CK22/CK22H
6. Using a screwdriver, remove the retaining ring (2),
from the upper end of the steering housing (3). Then
remove the gland bushing (1).

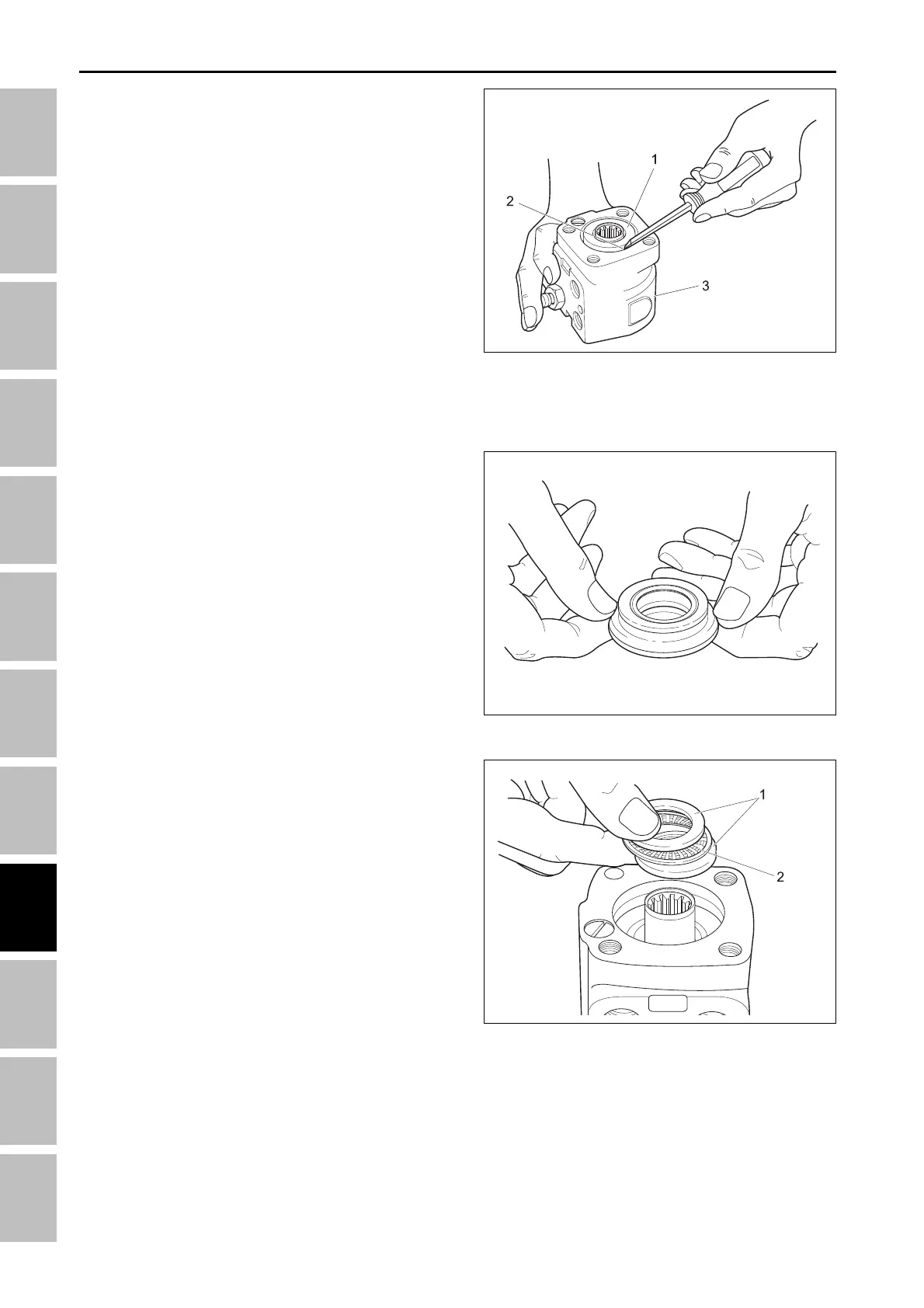

196W827A
(1) Gland bushing (3) Steering housing
(2) Retaining ring
7. Remove the oil seal, dust seal, and O-ring seal,
from the gland.
8. Remove the thrust bearing (2), and two bearing races
(1), from the body.
196W828A
196W829A
(1) Two bearing races (2) Thrust bearing
STEERING SYSTEM - SERVICING
