CK22/CK22H

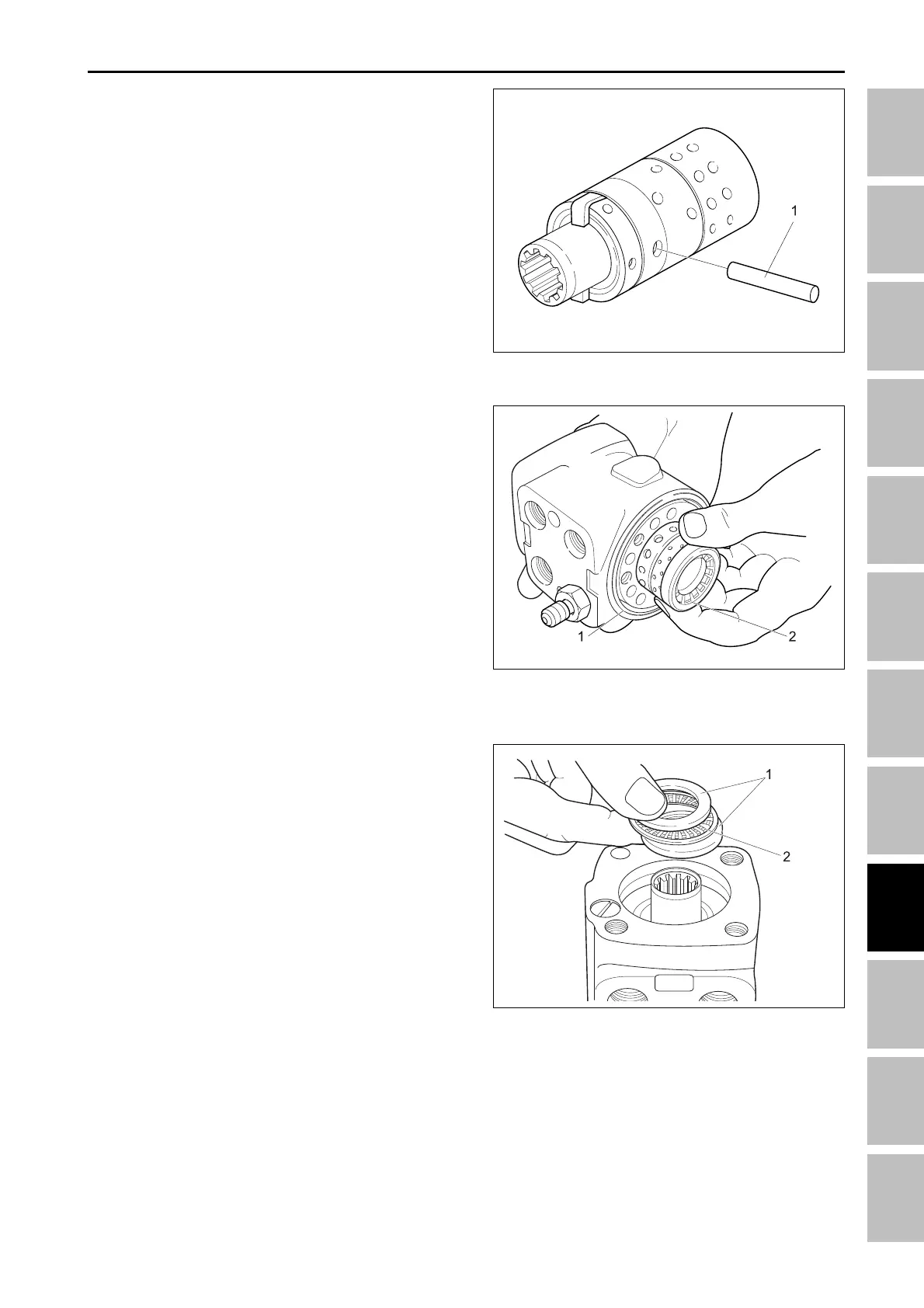

6. Orient the spool and sleeve (2), so that the pin is
horizontal to the bench and carefully insert the as-
sembly into the bottom of the steering motor hous-
ing (1). Rotate the assembly slightly while inserting
it to ease installation.
Position the spool and sleeve so that their ends are
flush with the bottom of the steering motor housing
and make sure that the assembly can turn freely
within the housing.
7. Insert a thrust bearing race (1), the thrust bearing
(2), then the other thrust bearing race (1), into place
making sure it seats firmly on the sleeve and spool.
196W836A
196W837A
(1) Steering motor housing
(2) Sleeve
(1) Thrust bearing race (2) Thrust bearing
5. Position the spool and sleeve so that their ends are
flush and insert the pin (1), through the assembly
until its ends are below the surfaces of the sleeve.
196W835A
(1) Pin
STEERING SYSTEM - SERVICING
