CK22/CK22H

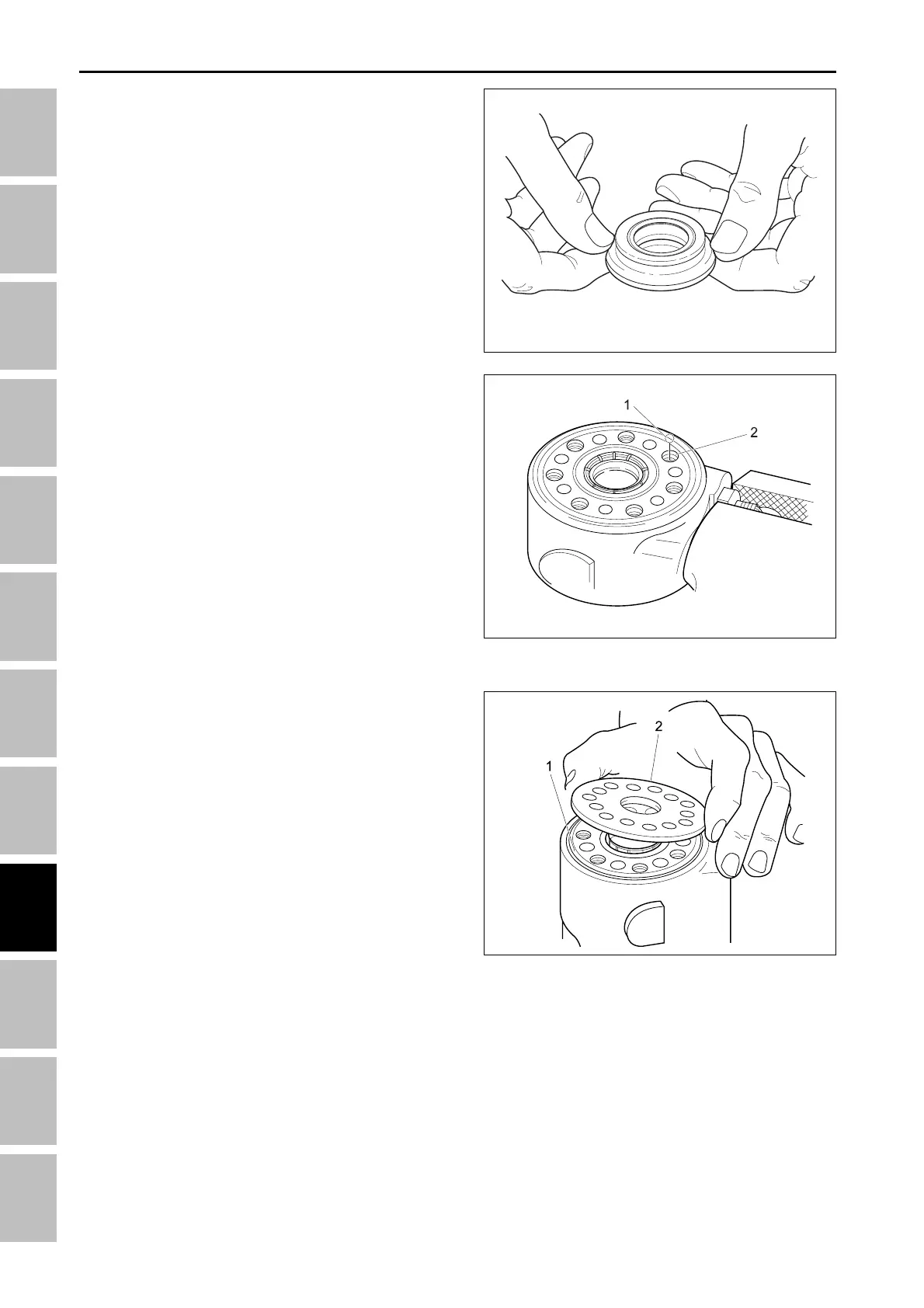

8. Install a new O-ring, dust seal, and oil seal, in the
gland bushing, then insert the bushing into the hous-
ing while rotating it.
9. Install the retaining ring in the housing groove.
196W738A
10.Position the steering motor housing in a vise with
the bottom end facing up. To avoid damaging the
steering motor housing, use soft-faced jaw and light
pressure or a fitting installed in one of the ports to
grip the steering motor.
11. Position the spool and sleeve assembly slightly
below the bottom face of the motor housing, then
install the check valve ball (1), into its retainer bolt
hole (2).
12.Install a new O-ring (1), in the housing and position
the spacer plate (2), on the O-ring so that the holes
line up with those in the housing.
196W840A
196W839A
(1) Check valve ball (2) Retainer bolt hole
(1) O-ring (2) Spacer plate
STEERING SYSTEM - SERVICING
