CK22/CK22H

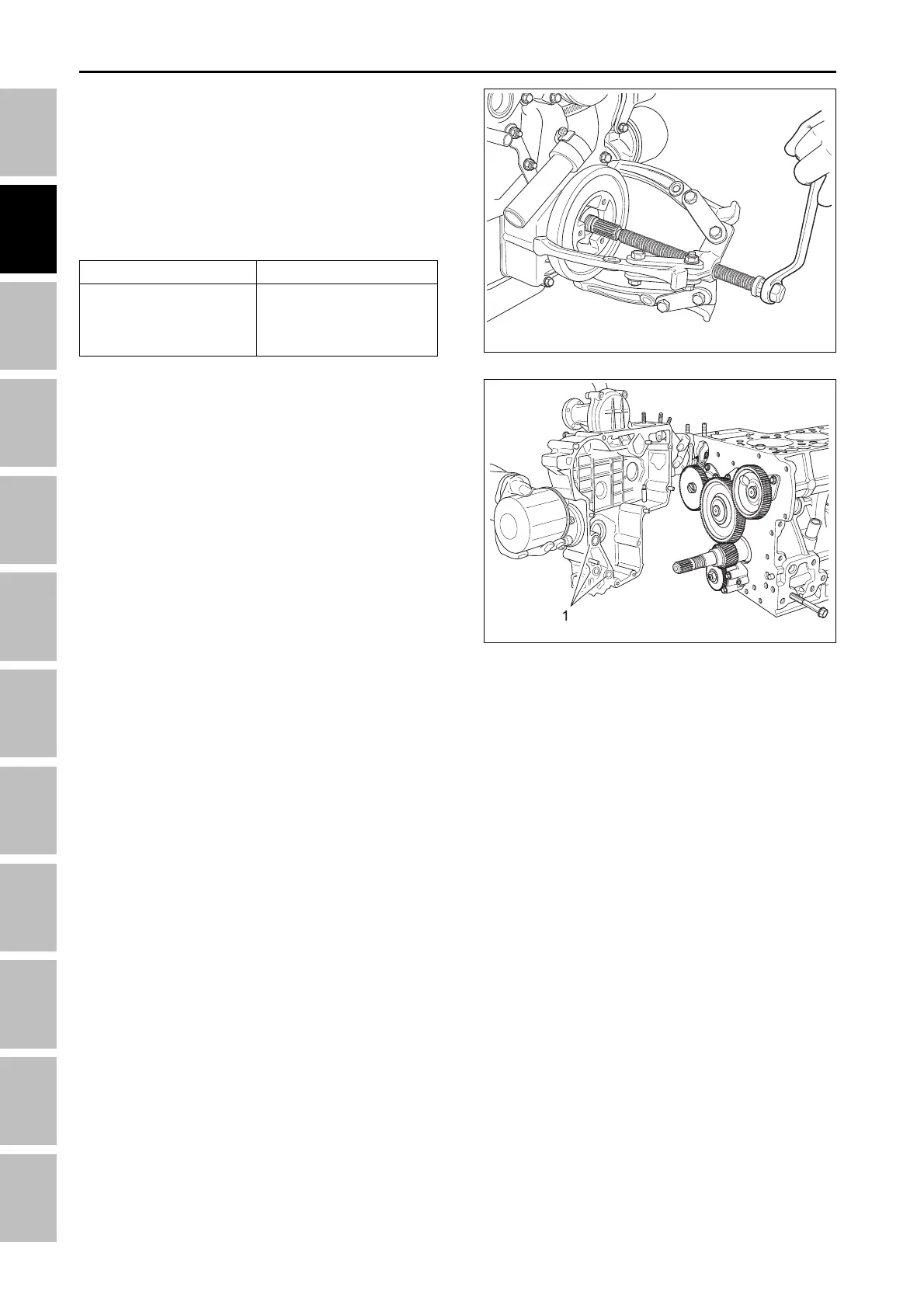

C. REMOVING GEAR CASE
1. Remove the gear case cover.
2. Remove the O-ring.
(Note for reassembling)
• Apply a thin coat of engine oil to the oil seal, and
install it, noting the lip come off.
• Before installing the gear case gasket, apply a non
drying adhesive.
• Tighten the oil filter cartridge by hand.
• Stick the O-ring to the gear case with thin grease to
prevent from coming off during reassembling.
196W278B
196W279B
(1) O-ring
Item
Crankshaft nut
Tightening torque
137.3 ~ 156.9 Nm
14 ~ 16 kgf-m
101.3 ~ 115.7 lb-ft
B. REMOVING FAN DRIVE PULLEY
1. Flatten the crankshaft washer.
2. Loosen and remove the crankshaft nut.
3. Draw out the pulley with a puller.
(Note for reassembling)
• Bend the crankshaft washer against one side of the
nut.
ENGINE - SERVICING
