CK22/CK22H
3. Remove the thrust plate (6).
1. Loosen the bolts (12) and remove the cover (2).
2. Remove the cover (2) and formed seal gasket.
(When reassembling)
• Install the cover to the housing, using care not to
damage the O-ring.
• Align drain holes of the end cover and casing.
196W813A
Item
Bolt mounting (12)
Tightening torque
56.9 ~ 70.6 Nm
5.8 ~ 7.2 kgf-m
42 ~ 52.1 lb-ft
(2) Cover (12) Bolt
196W815A
(1) Housing
(2) Cover
(3) Busing
(4) Drive gear
(5) Driven gear
(6) Thrust plate
196W811A
(7) Seal
(8) Seal
(9) Oil seal
(10) Snap ring
(11) Dowel pin
(12) Bolt
(6) Thrust plate

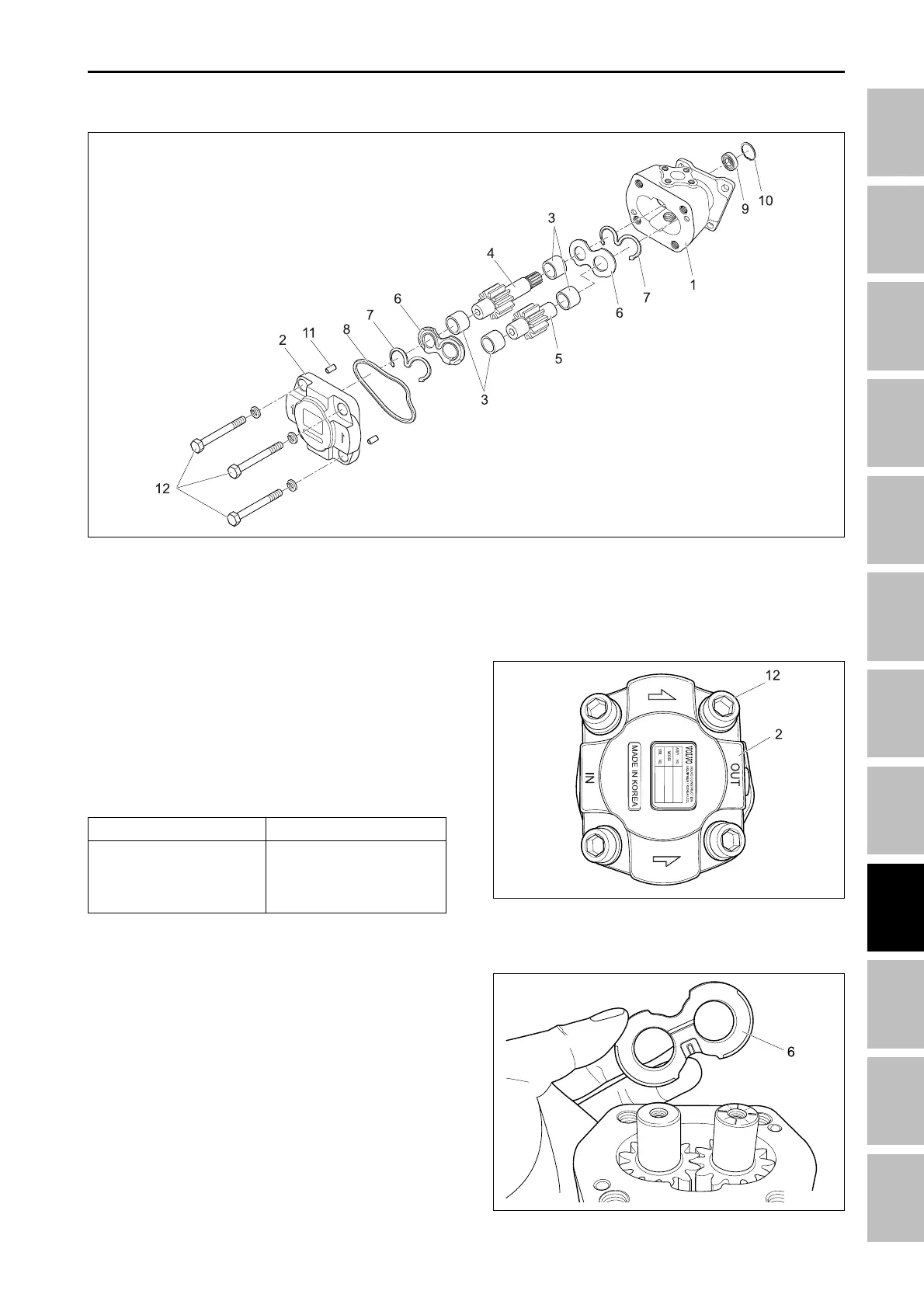

4.1.3 DISASSEMBLY THE HYDRAULIC PUMP
STEERING SYSTEM - SERVICING
