CK22/CK22H

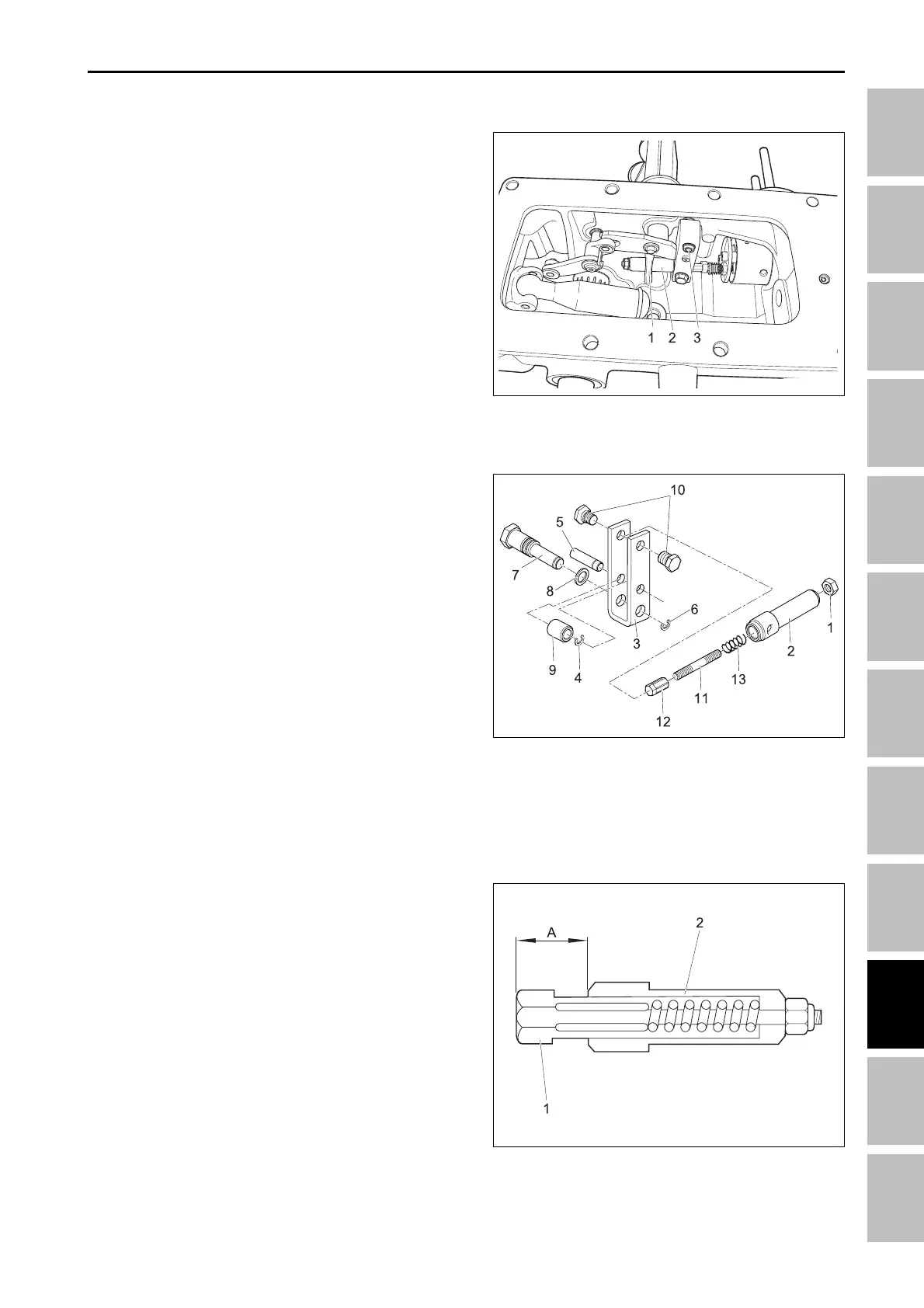

15.When assembling push rod in body, adjust lock nut
until push rod extends 19 mm (0.748 in.) from spring
set.
196W970A
(1) Stop rod (2) Spring set
(A) 19 mm (0.748 in.)
11. Remove push rod assembly from lever by removing
plug (10) from either side of lever.
12.Remove stop rod from spring set by removing lock
nut from end of threaded push rod.
13.Remove roller from lever by removing E-clip from
pin (located between roller and lever).
14.Inspect component for wear or damage. Replace
as required.
196W969A
(1) Lock nut
(2) Spring set
(3) Lever
(4) Cir-clip
(5) Pin
8. Remove E-clips retaining plunger assembly.
9. Unscrew pins from outside of body making sure
that plunger assembly does not bind on shaft of pin
during removal.
10.Remove the plunger assembly from the body.
196W968B
(1) Guide (3) Pin
(2) Plunger assembly
(6) Cir-clip
(7) Pin
(8) Seal
washer
(9) Roller
(10) Plug
(11) Stud
(12) Push rod
(13) Spring
HYDRAULIC SYSTME - SERVICING
