CK22/CK22H
HYDRAULIC SYSTME - SERVICING
T46WAE2A
T46WAE3A
T46WAE4A

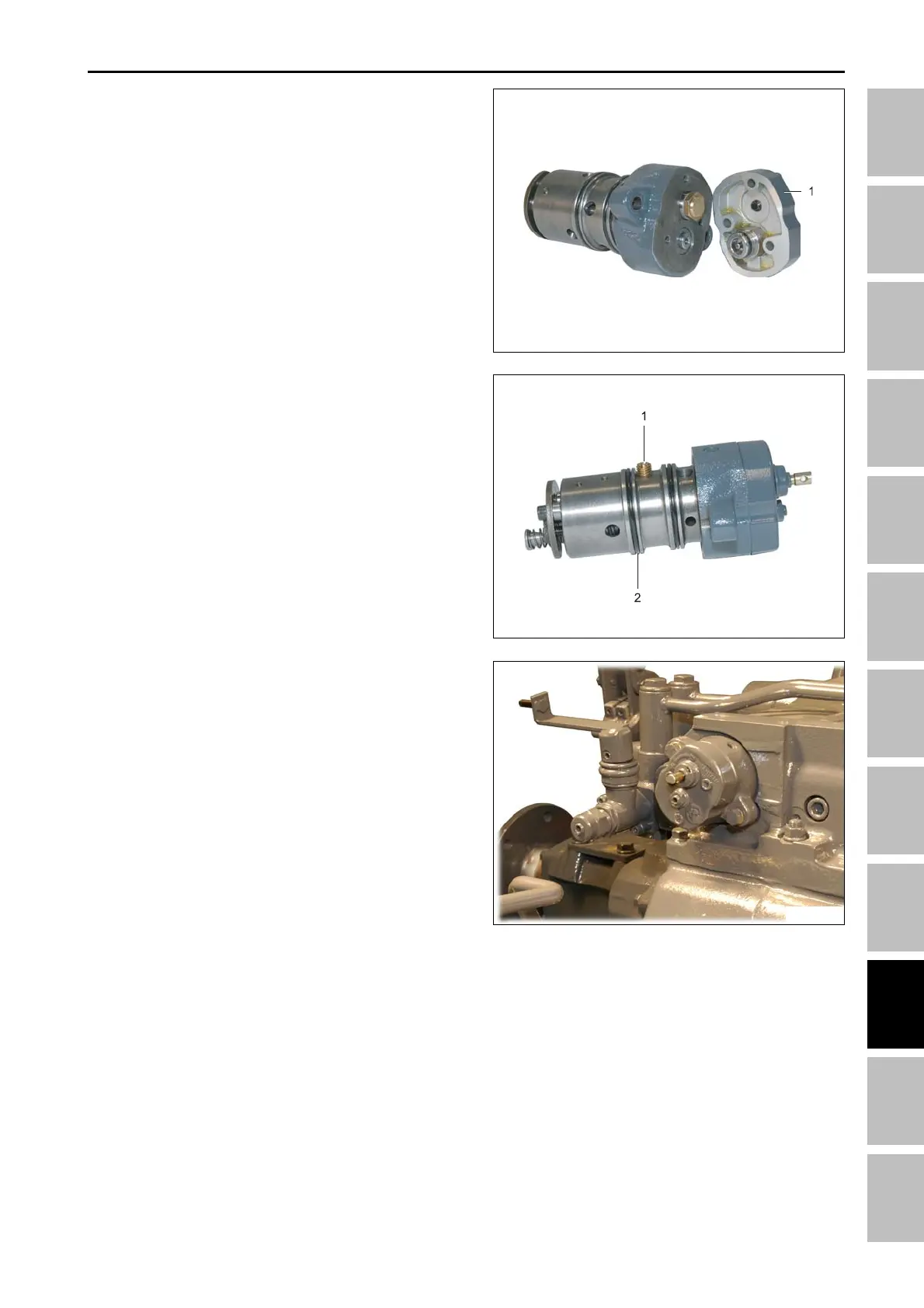

9. Install the valve cap (1).
10. Install the brass orifice (1) completely (if removed).
11. Apply oil on the O-ring (2) to prevent any damage
when installing the valve assembly to the cylinder
body.
12. Be careful not to install the valve upside down.
Ì If the valve is installed upside down, the hydraulic
lifting arm cannot be operated. The figure shows
the correctly installed valve.
