CK22/CK22H
196WA45A
ff
ff

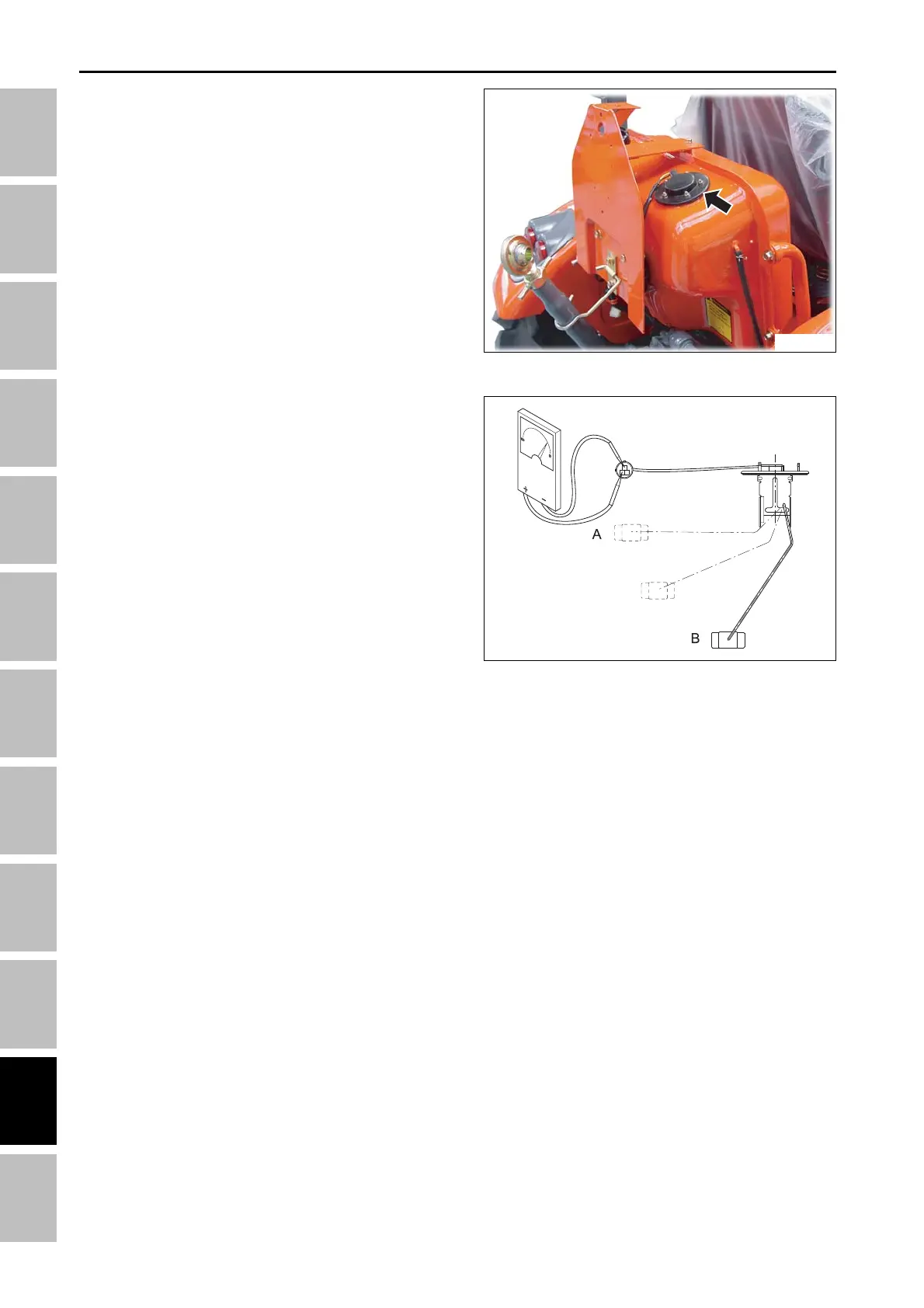

f FUEL LEVEL SENSOR TESTING
Use an ohmmeter to test the fuel level sensor. Re-
move the sensor from the fuel tank. Attach one of the
meter leads to the wire (yellow-brown color) of the
sensor.
Attach the other meter lead to the ground wire (black
color), 2, of the sensor or sensor body.
With the sensor in the “EMPTY” position, the meter in-
dicates 103 ~ 117 Ω.
With the sensor in the “FULL” position, the meter read-
ing will be 1 ~ 5 Ω.
If the test results do not match the above, replace the
fuel level sensor.
(A) Full (B) Empty
C. FUEL LEVEL SENDER
The fuel level sensor, 1, is mounted on the top of the
fuel tank. The sensor float moves up and down with the
fuel in the tank, while changing the resistance to the
ground circuit of the fuel gauge.
196WA71A
ELECTRIC SYSTEM - SERVICING
