05/2014
6-213
DC SC2020
General
6.4.8.3 Analog Input
Version 1.1

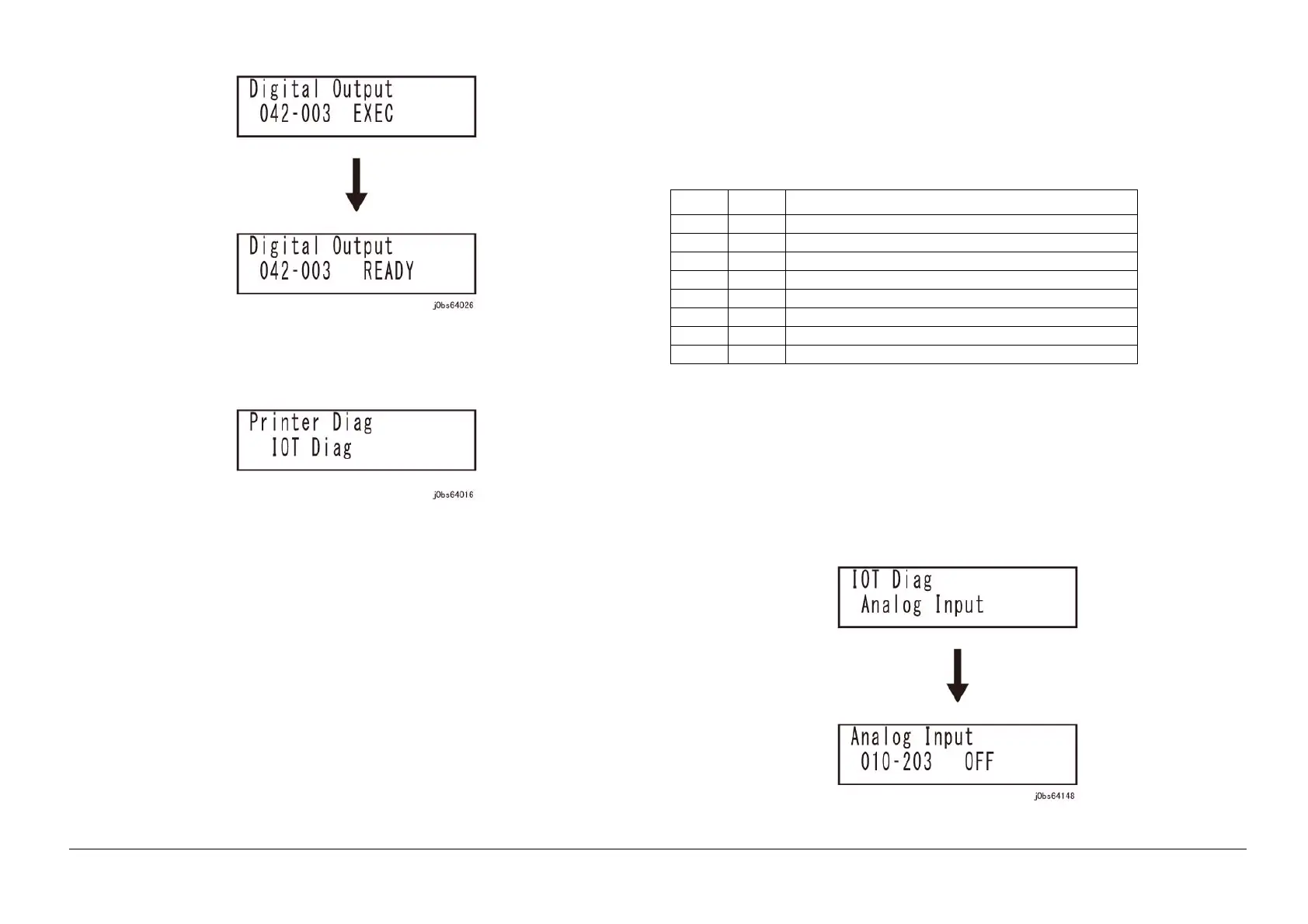

Figure 8 j0bs64026
11. Press the [<--] (Back) button to return to the [Printer Diag] screen.
Figure 9 j0bs64016
12. Exit the CE mode. (See "6.4.4 How to Exit the CE Mode".)
6.4.8.3 Analog Input
A feature to check the Analog Input (AI) component works correctly.
If you run the analog input test, values are displayed in hexadecimal (16).
Analog input test will qualify all of AI components.
Analog input test cases example
The following shows the example where a test is performed to check the 010-203: Heat Roll STS opera-
tion.
1. Enter the CE Mode. (Refer to "6.4.2 How to Enter the CE Mode")
2. Make sure [Printer Diag] is selected, and then press [OK] button.
3. [Down arrow] "IOT Diag" button to select, and then press [OK] button.
4. [Down arrow] "Analog Input" button to select, and then press [OK] button.
5. Select "010-203" with the [Down arrow] button, and then press [OK] button.
Figure 1 j0bs64148
Table 1 Analig Input Parameter
Chain Link Parameter
010 200 Heat Roll NC Sensor: Inf
010 201 Heat Roll NC Sensor: Temp
010 202 Heat Roll NC Sensor: Diff
010 203 Heat Roll STS
071 200 Tray1 Size Sensor Analog
072 200 Tray2 Size Sensor Analog
089 200 R_RAD_LED (ADC Sensor)
089 202 R_RAD_LOW_LED (MOB Sensor)
To Next Page
