Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
6-252
DC SC2020
6.4.14.5 Relay/Signal Test
Version 1.1
General

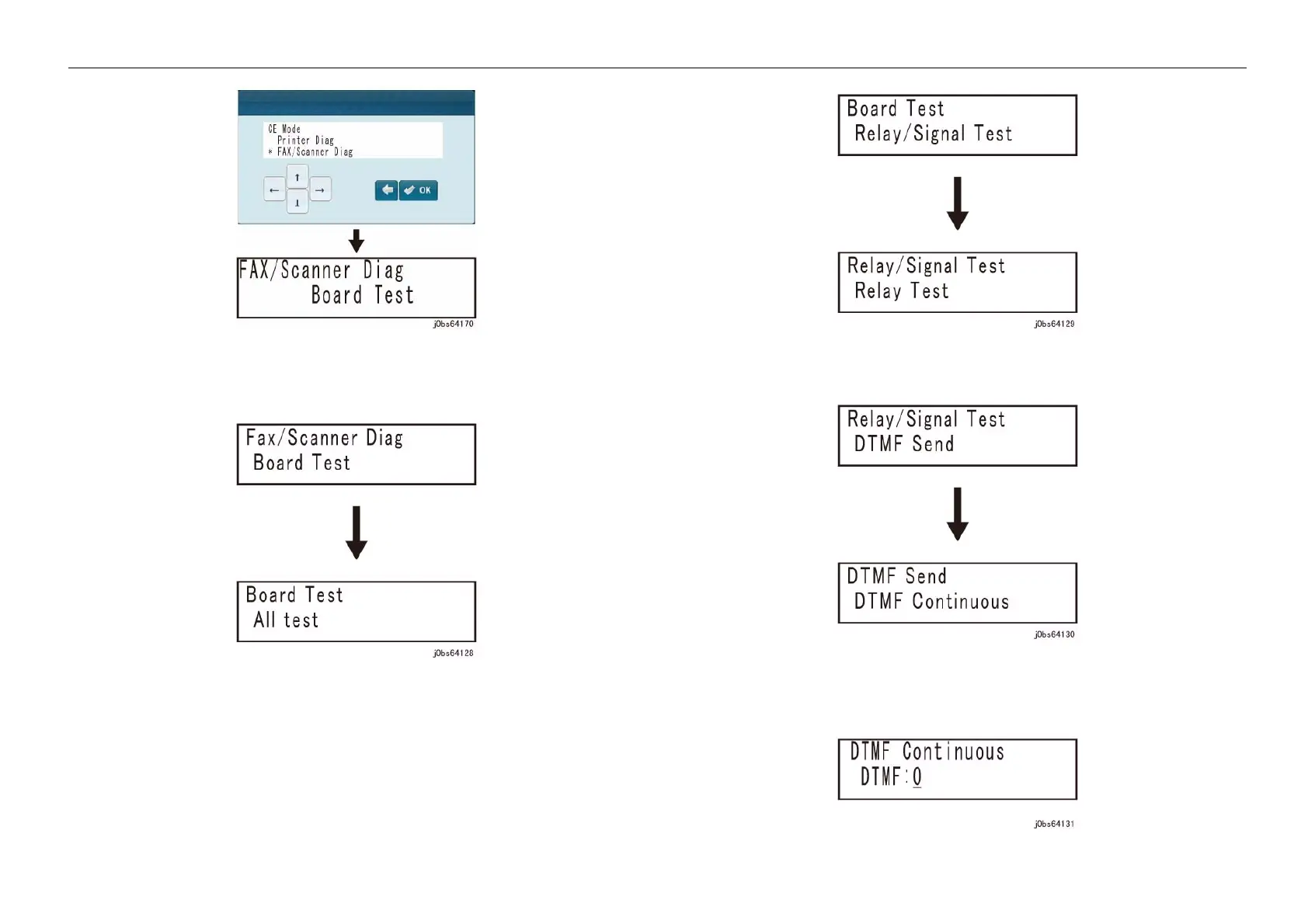

Figure 1 j0bs64170
3. Use the [Down arrow] button to select [Fax/Scanner Diag], and press the [OK] button.
4. Press the [OK] button.
Figure 2 j0bs64128
5. Use the [Down arrow] button to select [Relay/Signal Test], and press the [OK] button.
Figure 3 j0bs64129
6. Use the [Down arrow] button to select [DTMF Send], and press the [OK] button.
Figure 4 j0bs64130
7. Press the [OK] button.
Figure 5 j0bs64131
