6.4.16.8 DADF Size Detect Auto Adj.
Version 1.1
6.4.16.8 DADF Size Detect Auto Adj.
Purpose
To automatically adjust the original size during DADF scan to the desired original size.
Procedure
1. Use the [Down arrow] button to select [DADF Size Detect Auto Adj.], and press the [OK] button.

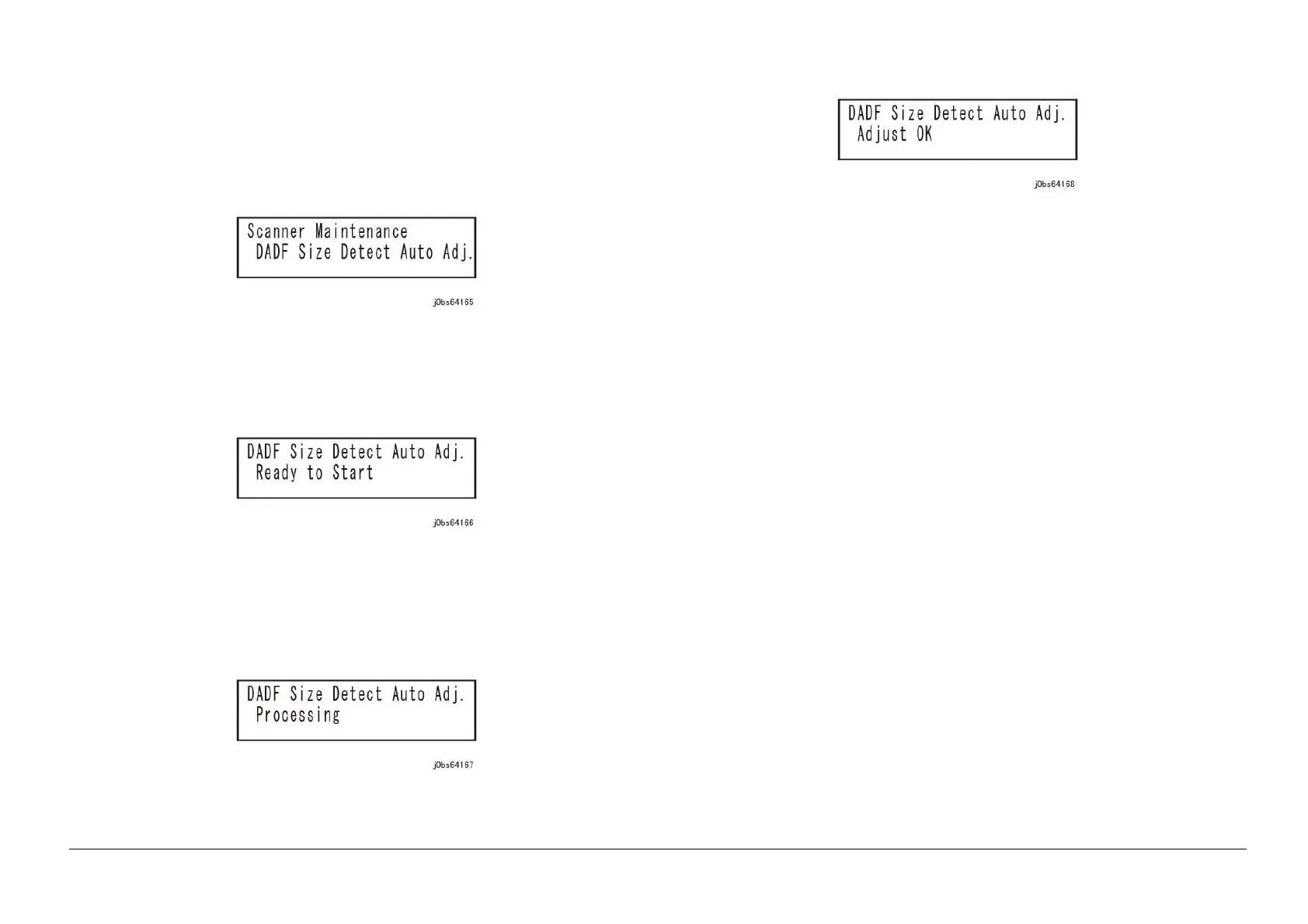

Figure 1 j0bs64165
2. Press the [OK] button.
NOTE: Pressing <OK> for machines that do not have a DADF will cause an Error to be displayed.
Figure 2 j0bs64166
3. Load 3 sheets of A4 LEF size originals.
4. Load the originals on the DADF and press <OK>.
5. The DADF Size Detect Auto Adjust will be performed. When this is in progress, the message [Pro-
cessing] is displayed on the UI.
Figure 3 j0bs64167
6. When the DADF Size Detect Auto Adjust has completed, the following measured values will be dis-
played . (Adjust OK or Adjust NG)
Figure 4 j0bs64168
7. Press the [<--] (Back) button to return to the [Fax/ Scanner Diag] screen.
To Next Page
