Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
9-4
DC SC2020
9.1.1 Installation of Main Unit
Version 1.1
Installation/Removal

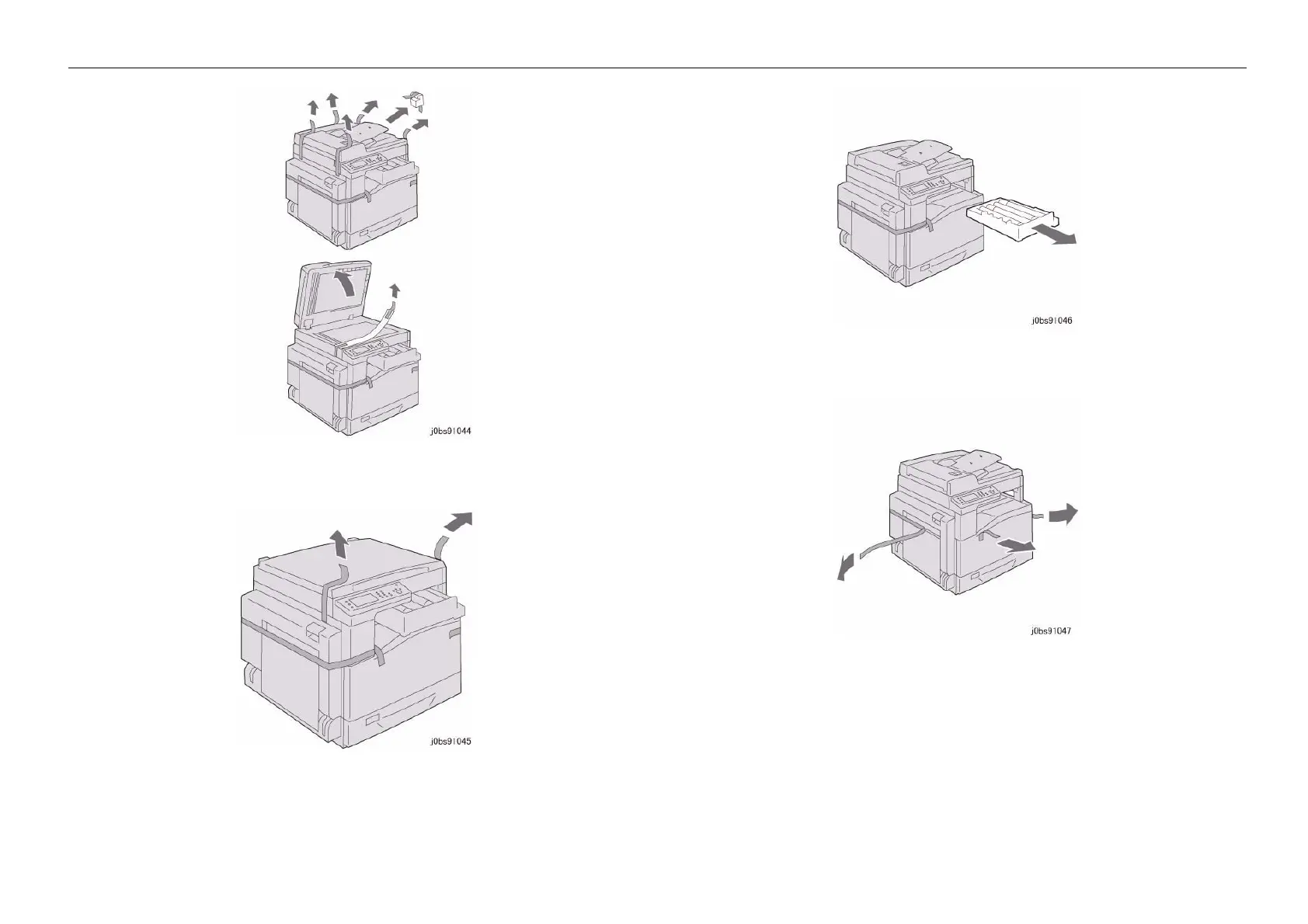

Figure 4 j0bs91044
• Platen Type (Figure 5)
Figure 5 j0bs91045
4. Take out the bundled items. (Figure 6)
Figure 6 j0bs91046
5. Remove the packaging tape. (Figure 7)
Figure 7 j0bs91047
6. Open the Front Cover. (Figure 8)
