DC SC2020
Installation/Removal
9.1.1 Installation of Main Unit
Version 1.1

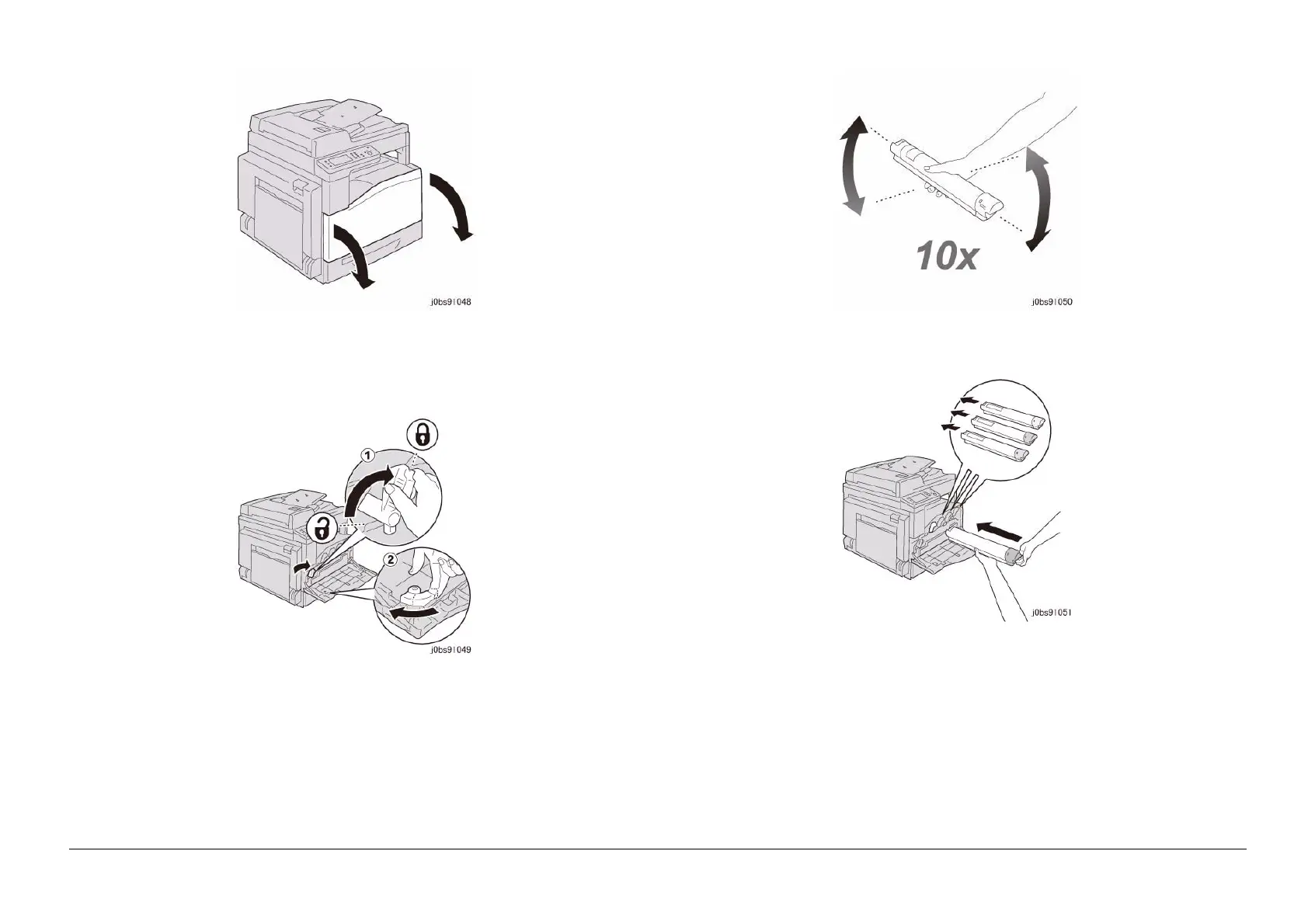

Figure 8 j0bs91048
7. Change the position of Handle Stopper and Retract Handle. (Figure 9)
(1) Move the Retract Handle to direction of the arrow.
(2) Move the Handle Stopper to the direction of the arrow.
Figure 9 j0bs91049
8. Shake the Toner Cartridge of each color. horizontally several times. (Figure 10)
Figure 10 j0bs91050
9. Match the Label color to replace the Toner Cartridge. (Figure 11)
Figure 11 j0bs91051
10. Install the Toner Cartridge. (Figure 12)
(1) Place Toner Cartridge in as far as it will go.
(2) Close the Front Cover.
