Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
9-6
DC SC2020
9.1.1 Installation of Main Unit
Version 1.1
Installation/Removal

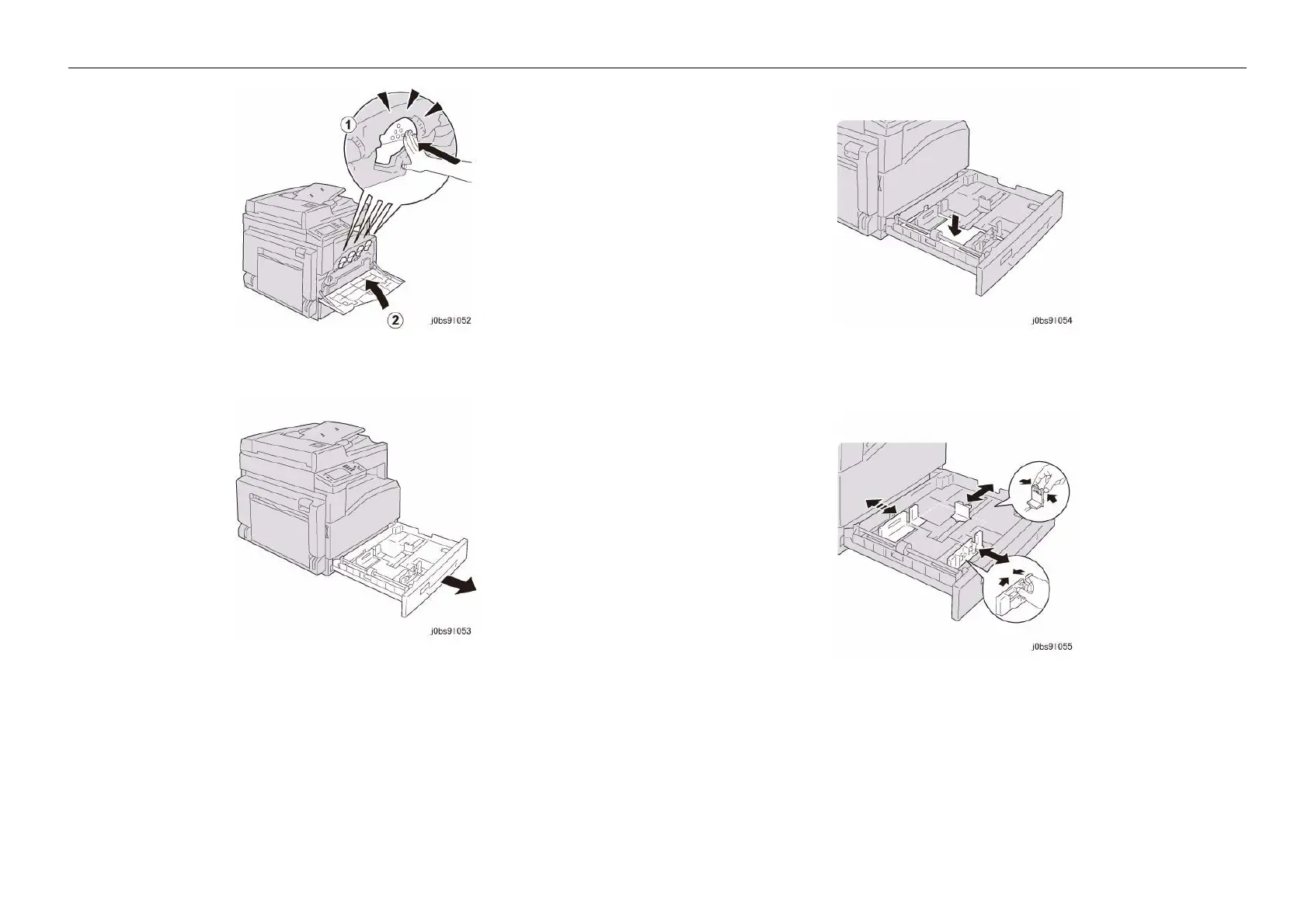

Figure 12 j0bs91052
11. Pull out Tray. (Figure 13)
Figure 13 j0bs91053
12. Lower the Bottom Plate. (Figure 14)
Figure 14 j0bs91054
13. Shift the Side Guide and End Guide, grasp the Lever according to fit the paper that is going to be
loaded in Tray. (Figure 15)
Figure 15 j0bs91055
14. Load paper into Tray. (Figure 16)
• The amount of paper stored should not exceed the Max Line.
