05/2014
9-7
DC SC2020
Installation/Removal
9.1.1 Installation of Main Unit
Version 1.1

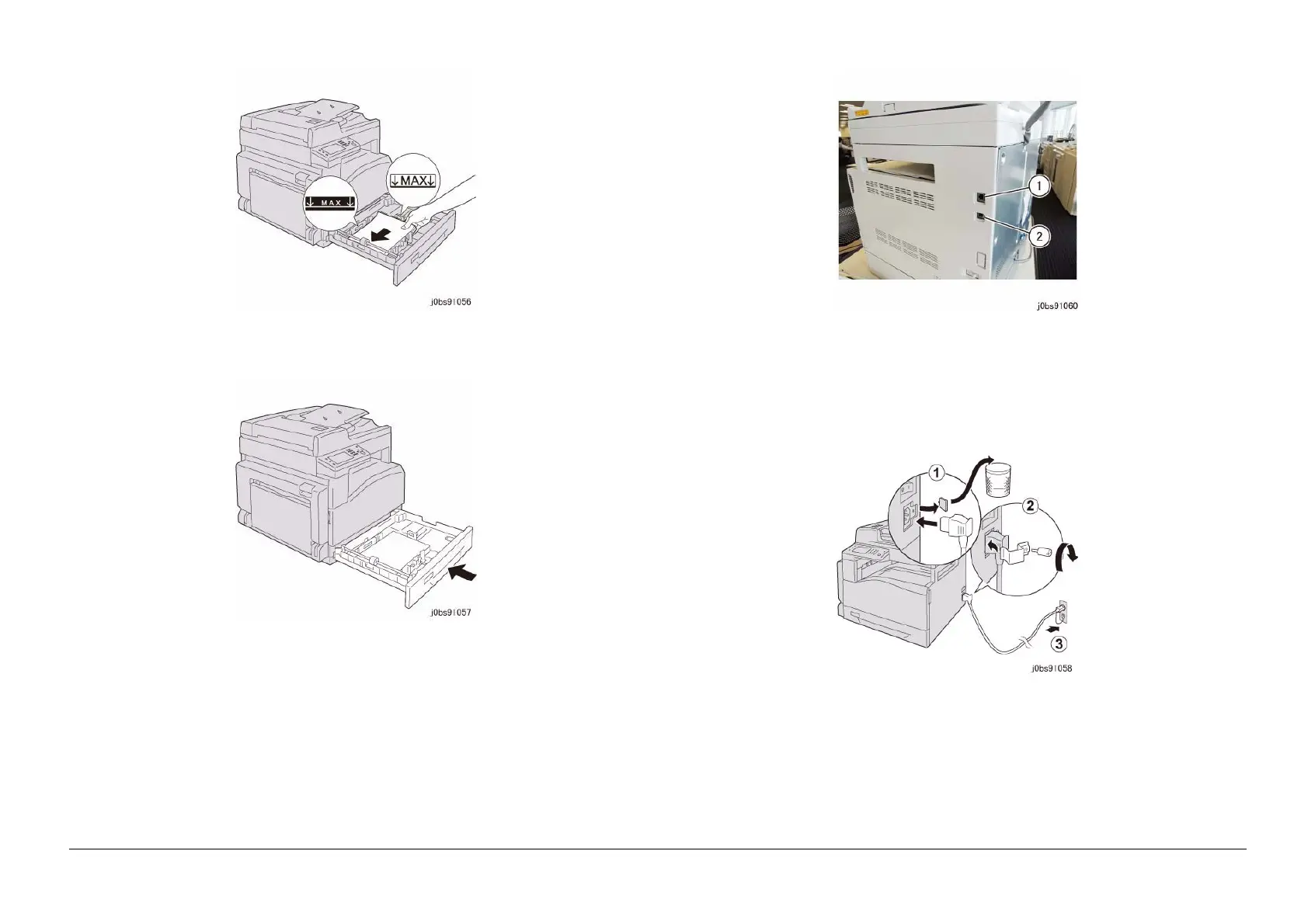

Figure 16 j0bs91056
15. Storage Tray in main body of the printer. (Figure 17)
Figure 17 j0bs91057
16. Connect the Network Cable or USB Cable. (Figure 18)
(1) Network Cable
(2) USB Cable
Figure 18 j0bs91060
17. Connect the Power Cord. (Figure 18)
(1) Remove the Blind Cover by using a minus driver and connect the Power Cord.
(2) Install the Stopper Bracket.
(3) Connect the Power Cord into an electrical outlet.
Figure 19 j0bs91058
18. Turn ON the Power Switch. (Figure 19)
