05/2014
9-9
DC SC2020
Installation/Removal
9.1.2 DADF
Version 1.1

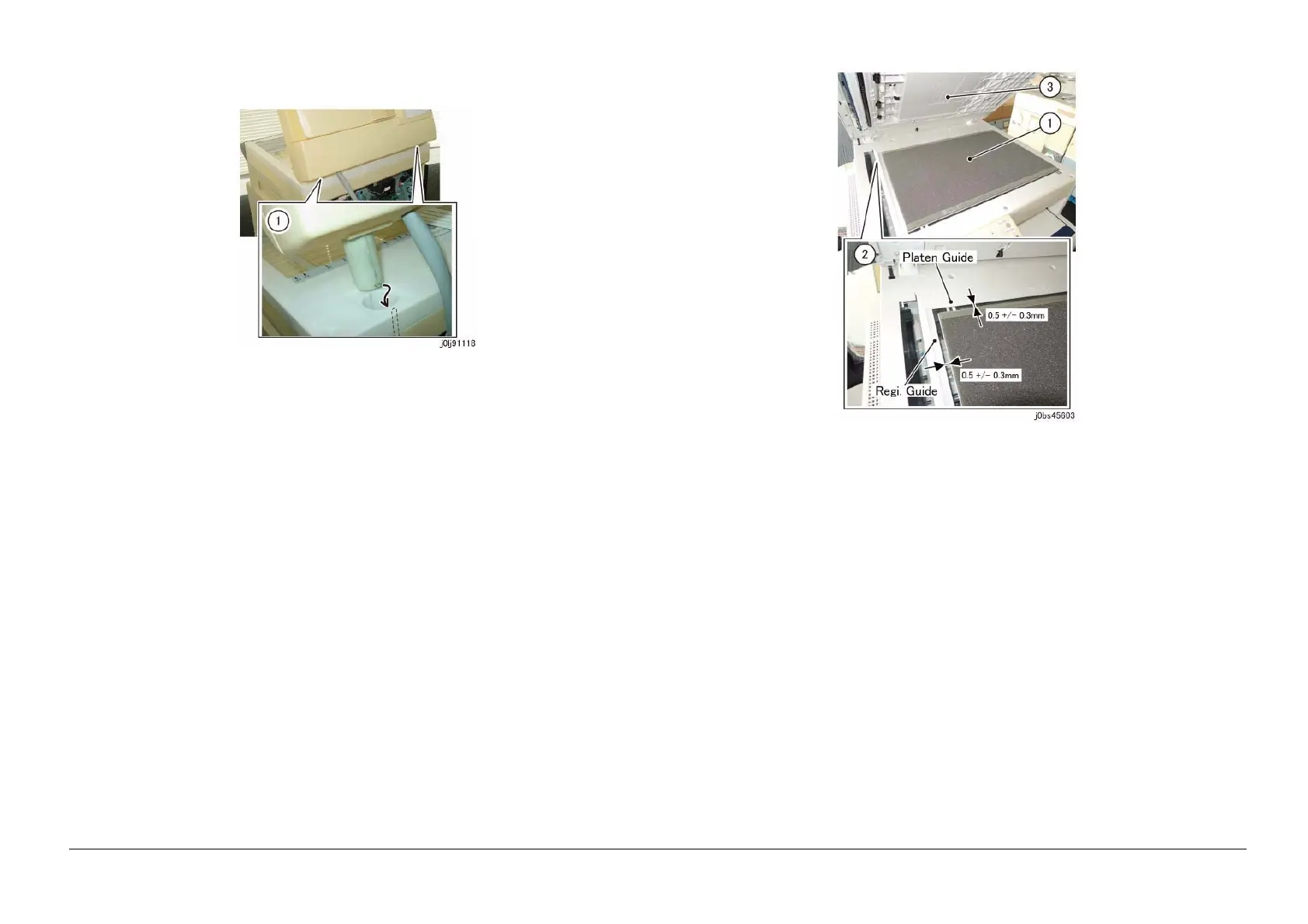

6. Install the DADF. (Figure 2)
(1) Insert the tab (x2) of the Counter Balance into the grooves of the installation holes.
Figure 2 j0lj91118
7. Paste on the DADF Platen Cushion. (Figure 3)
(1) Place the DADF Platen Cushion on the Platen Glass.
(2) Set up the gap between the Regi Guide and Platen Guide.
(3) Slowly lower the DADF to paste the DADF Platen Cushion to it.
Figure 3 j0bs45603
8. [When the CVT Plate is not installed to the CVT Glass of the IIT]: Attach the CVT Plate. (Figure 4)
(1) Clean the CVT Plate and degrease the paste location.
(2) Position the R section of the CVT Plate at the left of the Cutout mark and attach the CVT Plate.
To Next Page
