8 - 8

IPN 074-397-P1G

HAPSITE Smart Operating Manual

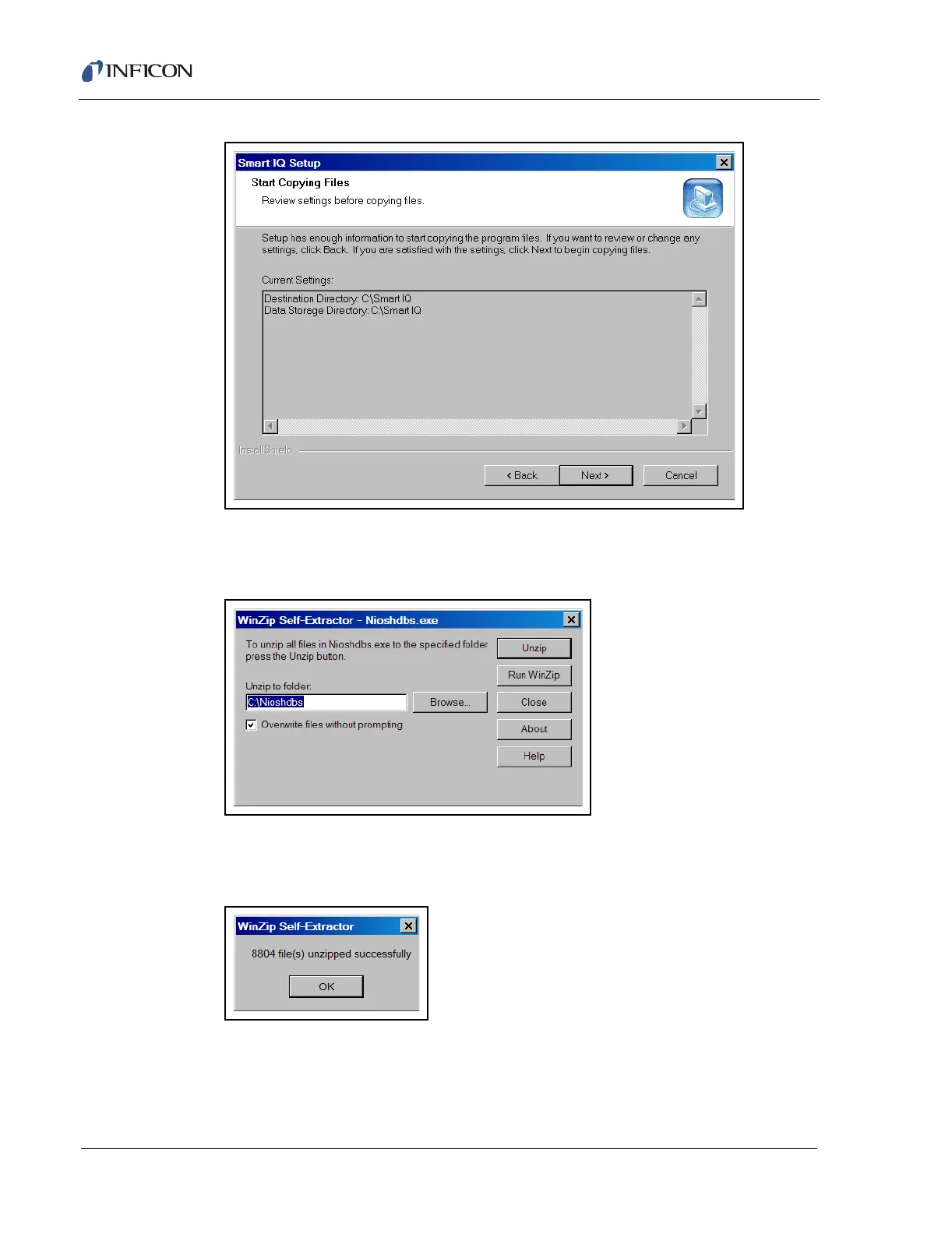

Figure 8-12 Copying Data Files Screen

7 A WinZip window will appear asking to unzip the NIOSH Database. Select

Unzip. See Figure 8-13.

Figure 8-13 Unzip Prompt

8 A window will appear indicating the unzip was successful, press OK. See

Figure 8-14.

Figure 8-14 Unzip Success

9 Select Close on the WinZip window.

10 The installation complete message will appear. Press Finish.

See Figure 8-15.
