8 - 24

IPN 074-397-P1G

HAPSITE Smart Operating Manual

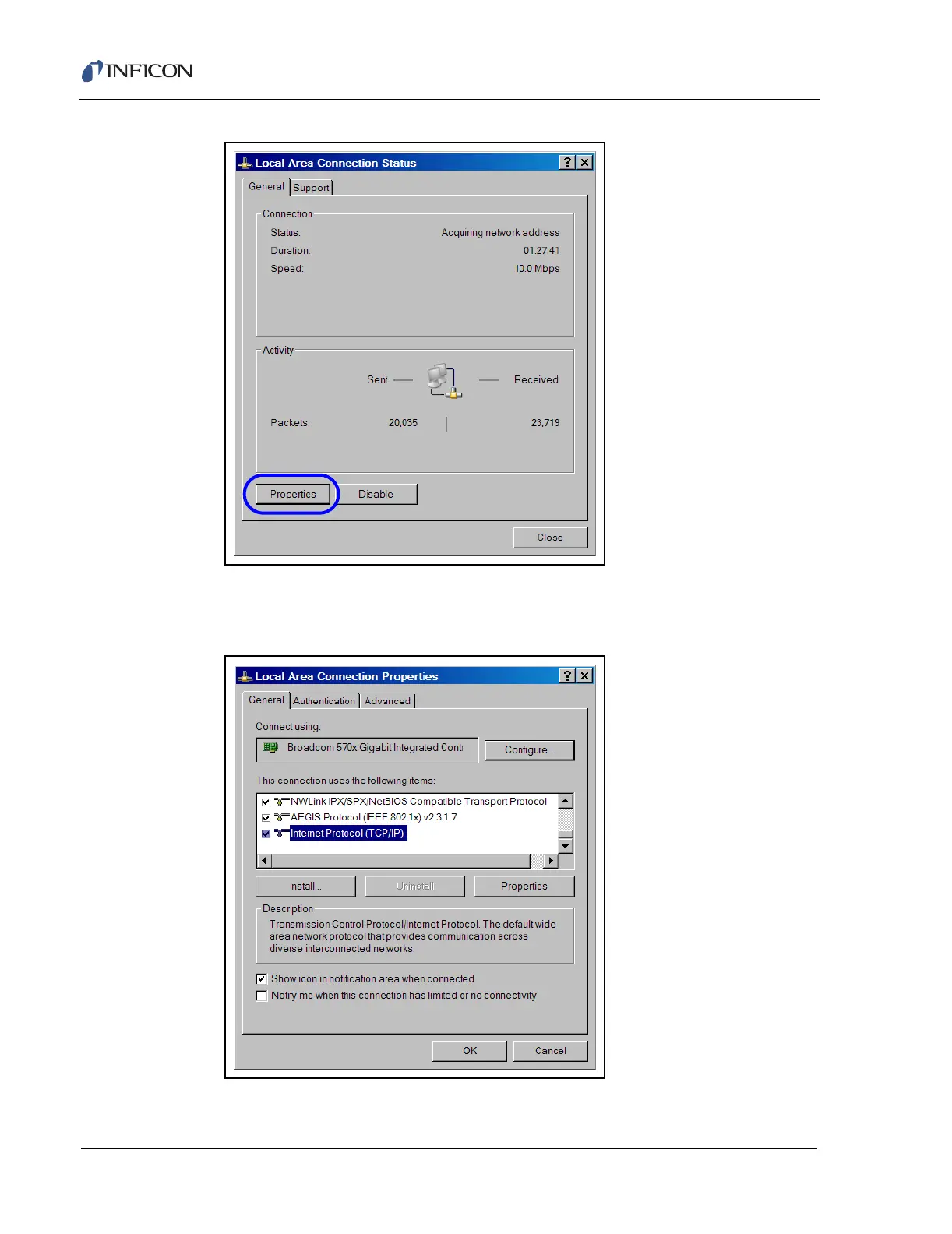

Figure 8-42 Local Area Connection Status Window

6 In the General tab, scroll down and highlight Internet Protocol (TCP/IP), press

Properties. See Figure 8-43.

Figure 8-43 Selecting Internet Protocol (TCP/IP)
