15 - 34
IPN 074-397-P1G
HAPSITE Smart Operating Manual

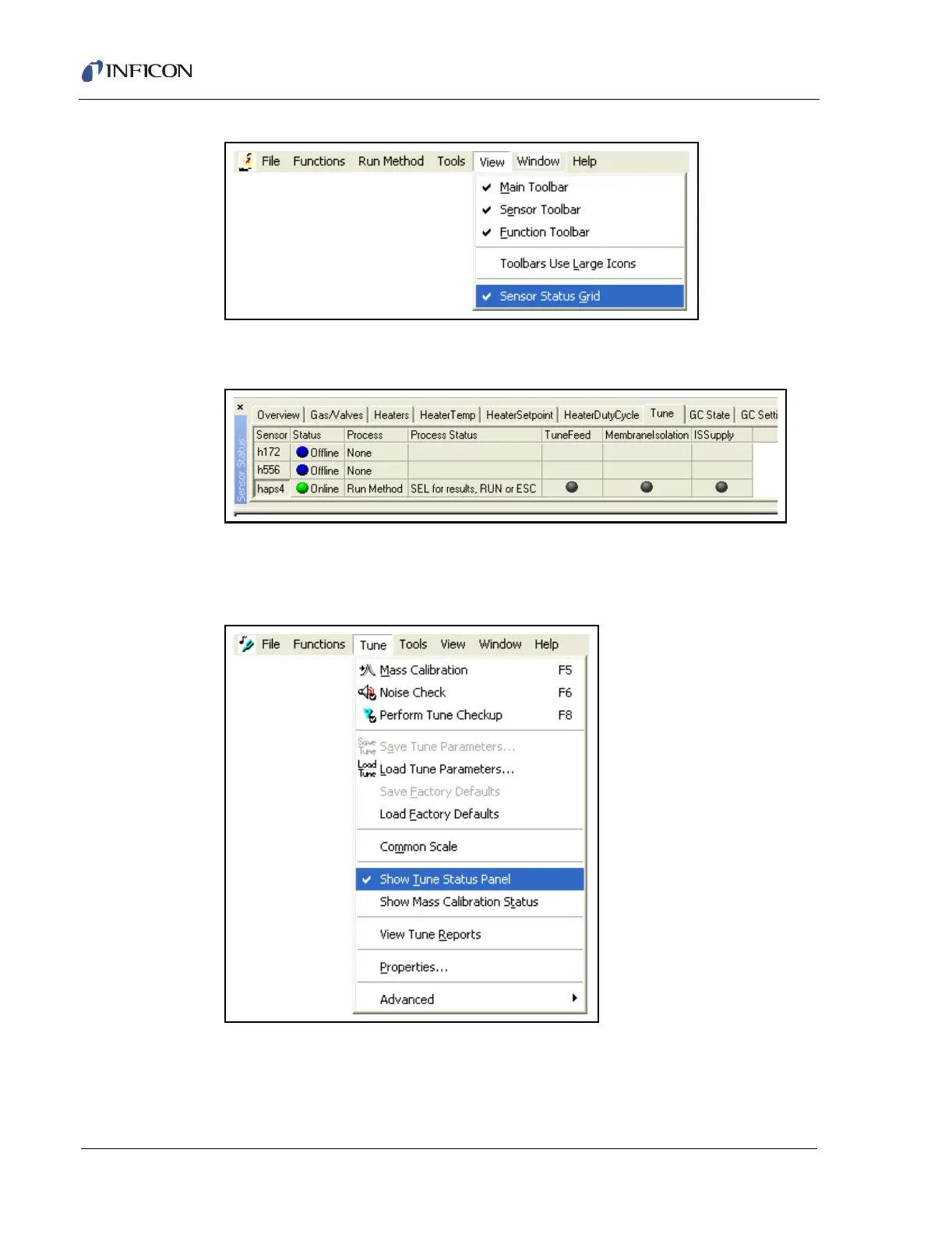

Figure 15-34 Opening Sensor Status Grid
6 Turn off the IS Supply and Tune Feed valves. See Figure 15-35.
Figure 15-35 Sensor Status Grid
7 Close the Tune Status Panel and the Mass Calibration Status by deselecting
each. See Figure 15-36.
Figure 15-36 Closing Tune Status Panel and Mass Calibration Status
