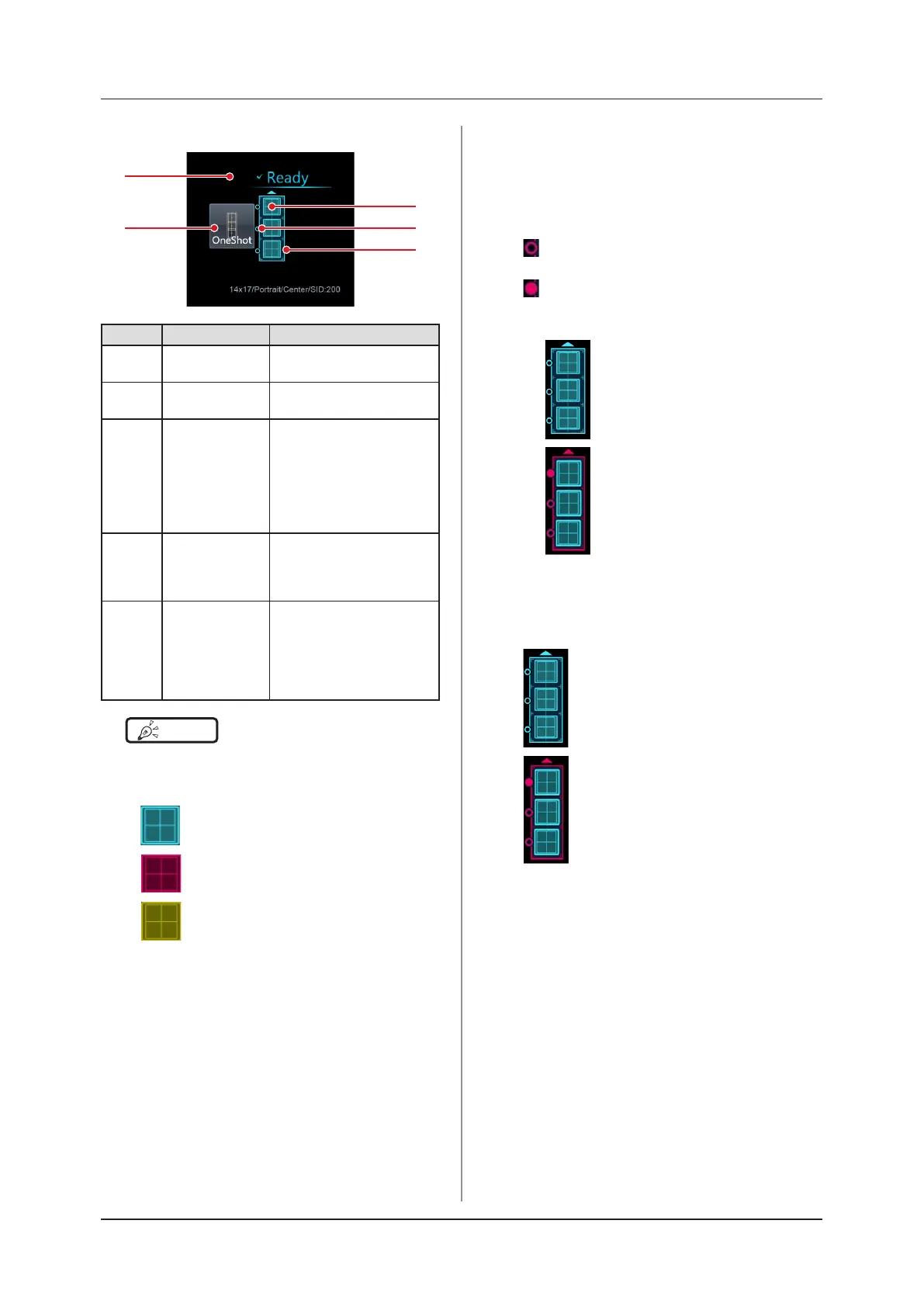

7.7 One Shot stitching exposure
z
Work area (not during exposure)
(2)
(1)
(3)
(4)
(5)
Number Name Functions
(1) Status
The exposure status ap-
pears.
(2) Device icon
The stitching holder icon or
name is displayed.
(3)
Detector status
display
The status of the DR detector
loaded in the stitching holder
is displayed. The AeroDR UF
cable or AeroDR Registration
key that are not connected
to the DR detector are not
displayed.
(4)
Combination
display
The combination identica-
tion mark of the DR detec-
tor loaded into the stitching
holder is displayed.
(5)
Stitching holder
state display
Conrm the combination
and status of the DR detec-
tor loaded into the stitching
holder, and the status of the
One Shot stitching exposure
will be displayed.
HINT
•••••••••••••••••••••••••••••••••••••
• The display of the detector status display will change
through the state of the DR detector. The display
meaning is as follows.
The DR detector is ready for exposure.
An error has occurred in the DR detector.
An unsent image remains in the DR detec-
tor.
• The combination display will display in an icon whether
or not the connection status and type of DR detector
loaded into the upper section or lower section, based
on the DR detector that is loaded into the middle sec-
tion of a stitching holder. The display meaning is as
follows.
The DR detector that is loaded in the middle sec-
tion and the same DR detector have been loaded.
The DR detector that is loaded in the middle sec-
tion and a di󰀨erent DR detector have been loaded.
– Combination display example
The DR detector has been loaded in
the correct combination.
The kind of DR detector that is loaded
into the upper part of the stitching hold-
er is di󰀨erent.
• In the stitching holder status display, the color of the
frame will change in whether or not is possible to do
One Shot stitching exposure. The display meaning is
as follows.
Frame color: Blue
One Shot stitching exposure can be done.
Frame color: Red
One Shot stitching exposure can not be
done.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
