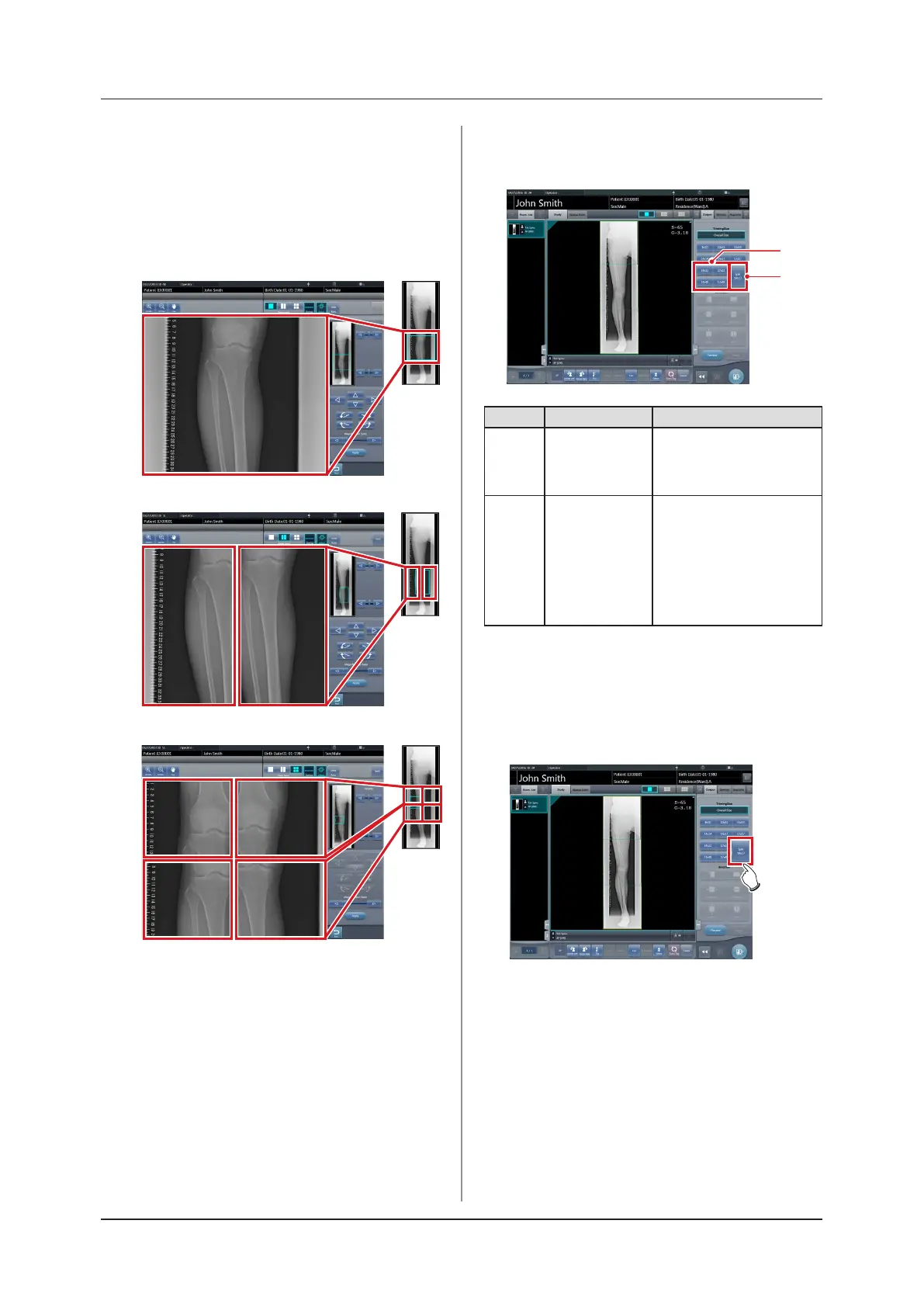

7.9 SIGMA stitching exposure
z
About image display
• During the image combination, the combined parts
(frame parts) displayed in the full preview are mag-
nified and displayed in the image display area as
frames.
• The display format and magnied displayed part are
as follows:
2×2 display
1×1 display
2×1 display
• 2×2 display can only be selected when combining 3
images.
• Set the plate overlap sequence during installation.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
z
Control panel (Output - for host)
This is the control panel to perform setting of host out-
put conditions for combined stitching images.
(2)
(1)
Number Name Functions
(1)
Trimming size
button
This button is used to select
the trimming size. Set to
hide/unhide trimming size
button during installation.
(2) [Split] button
This button is used to split
combined images and output
these images to hosts. The
device switches between
ON and OFF every time the
button is pressed. Press and
hold the button to select the
size of each section.
z
Procedure to change the output size of split
images
1
Press the [Split] button for 1 second or
more.
• The Split Output Size dialog box is displayed.
