OPERATION
3. At divider storage location, lift divider to disengage
lugs (A) at lower end and then lower it slightly to
disengage pin (B) from endsheet.

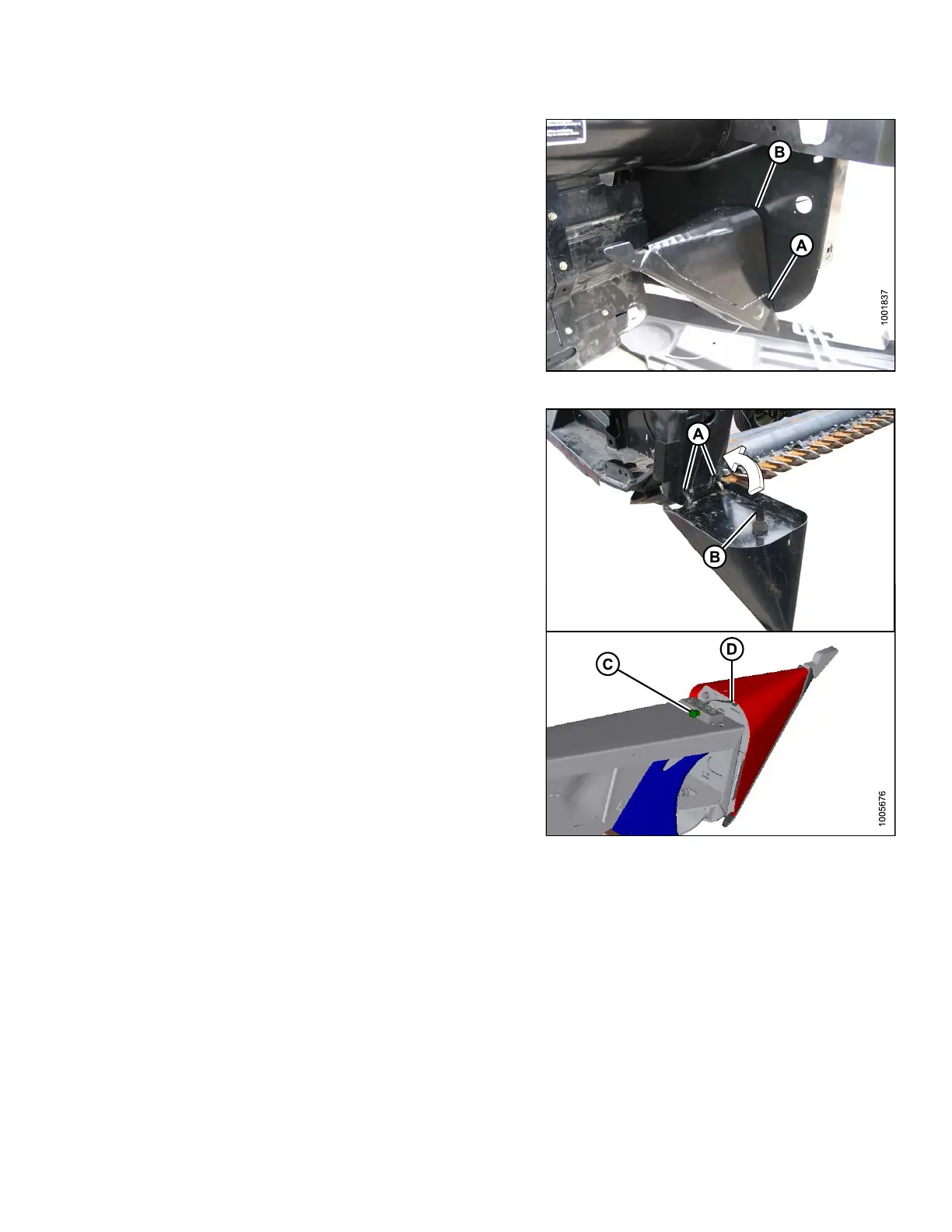

Figure 3.85: Stored Crop Divider
4. Position crop divider as shown by locat ing lugs (A) in
holes in endsheet.
5. Lift forward e nd of divider until pin (B) at top of divider
engages and closes latch (C).
6. Push safety lever ( D) down to lock pin in latch.
Figur
e 3.86: Crop Divider
147695 85 Revision A
