MAINTENANCE AN D SERVICING

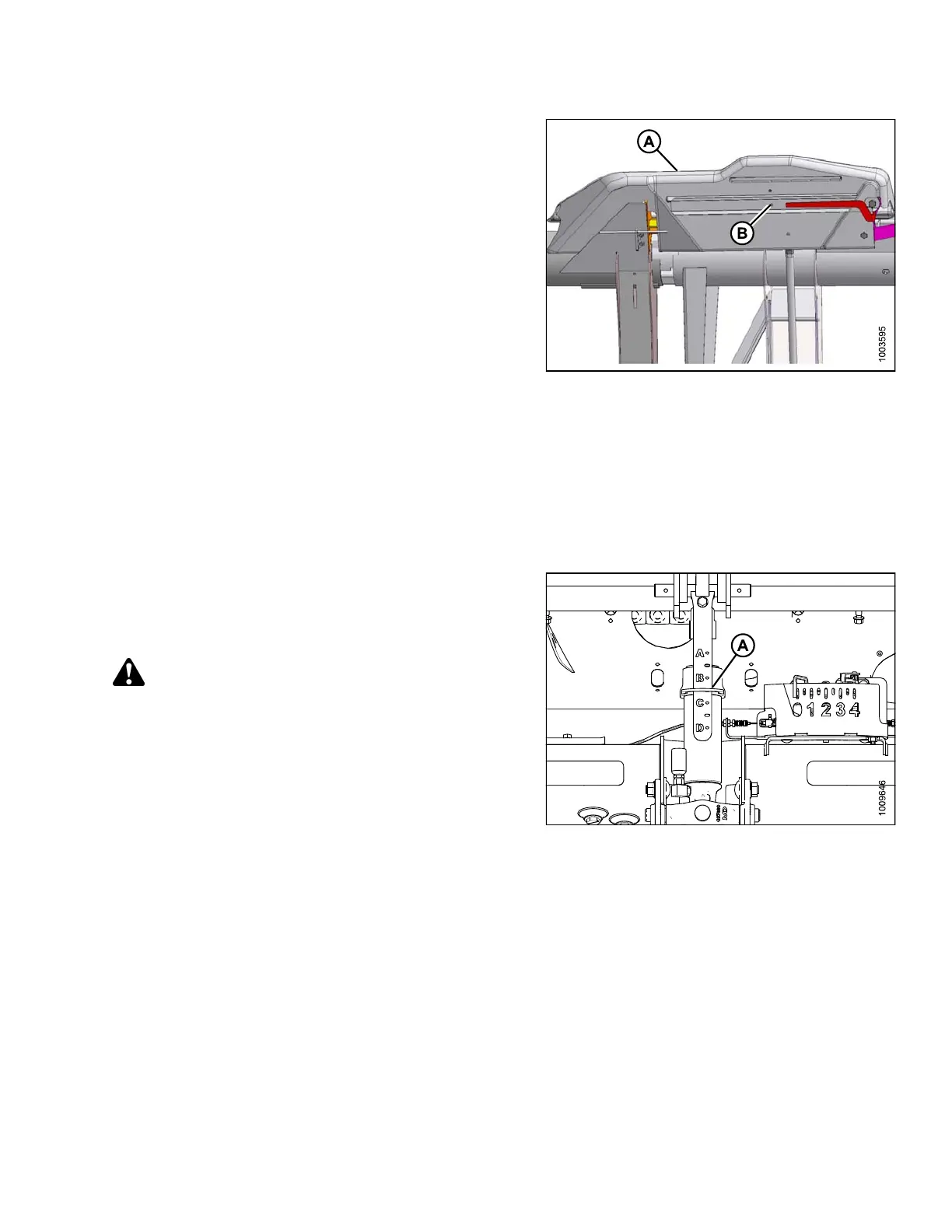

14. Reinstall linkage cover (A), secure with bolt (B).
Figure 5.309: Linkage Cover
5.16.2 Adjusting Wing Balance
Before pro
ceeding, check the wing balance to verify how to adjust the wing. Refer to 5.16.1 Checking Wing Balance,
page 396.
NOTE:
Left-hand side is shown.
1. Extend the header center-link to between B and C on
indicator (A).
2. Park combine on level ground and raise header until
cutterbar is 6–10 in. (152–254 mm) off the ground.
WARNING
To avoid bodily injury or death from unexpected
startup of machine, always stop combine engine and
remove key before making adjustments to machine.
3. Stop engine and remove key.
4. If installed, move transport/stabilize r whee ls so that
they are supported by header. Refer to 3.7.1 Cutting
Height, page 52.
Figur
e 5.310: Center-Link
147695 401 Revision A
