HEADER ATTA CHMEN T/DETACHMENT
4.7.2 Attachi
ng Header to Adapter and Combine
The FD75 can be attached to the adapter from either Field configuration or Transport configuration.
DANGER
To avoid bodily injury or death from unexpected start-up of m achine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
NOTE:
Stabilizer/Slow Speed Transport whe e ls can be used to support h eader. Refer to 3.7.1 Cutting Height, page 52.
1. Prop up hydraulic center-link (A) with pin (or equivalent
tool) at (B).

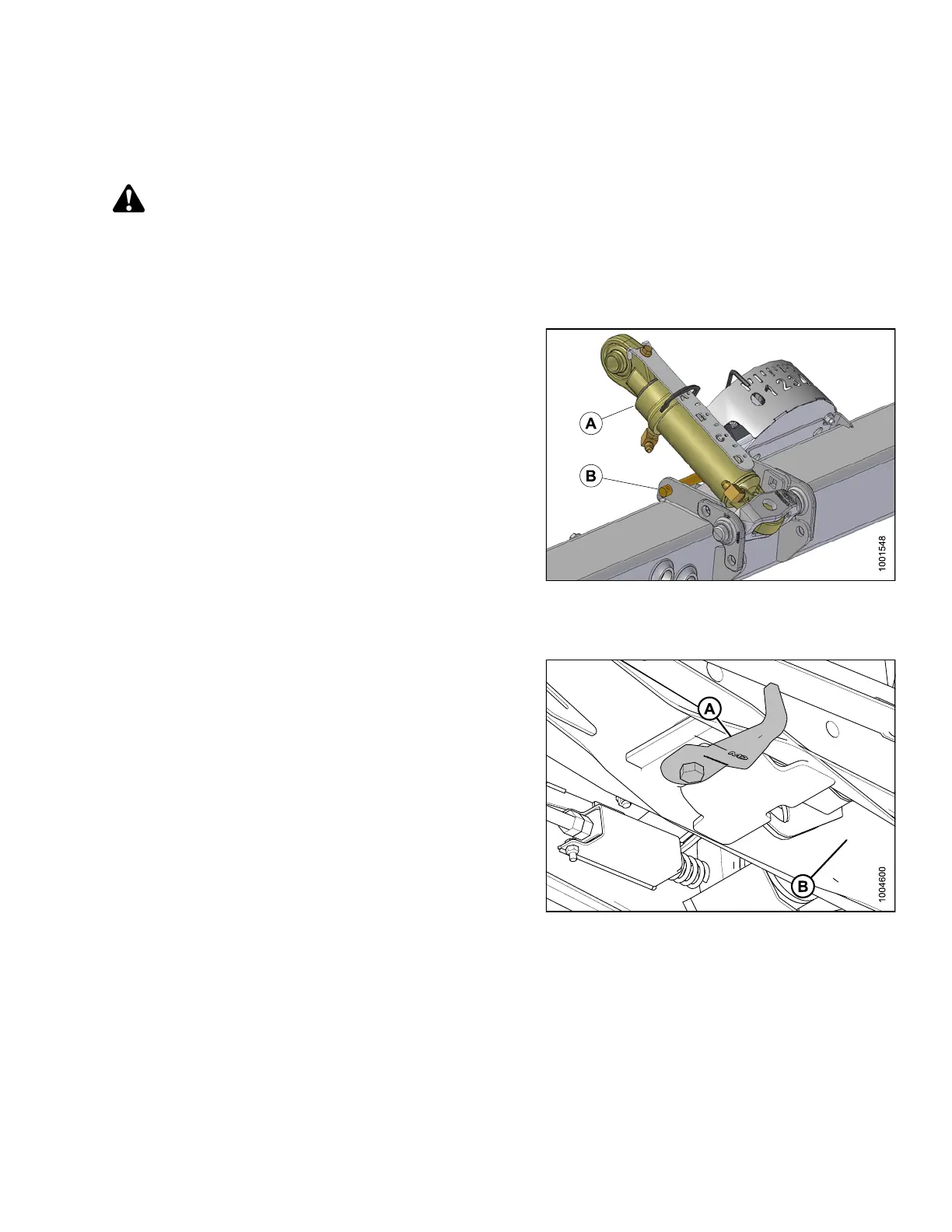

Figure 4.111: Center-Link
2. Ensure hooks (A) are in storage position as shown,
not interfering with entrance of adapter arms into
channel (B).
Figure 4.112: Header Underside
147695 245 Revision A
