MAINTENANCE AND SERVICING
Lubricating Auger Drive Chain
Lubricate auger drive chain every 100 hours. This can be done with the adapter attached to the combine, but is
easier if the adapter is detached.
The auger drive cover consists of an upper and a lower half. Only the upper half needs to be removed to grease
the c hain.
To lubricate the auger drive chain, follow these steps:
1. Remove six bolts (A) securing the upper half (C).
2. Loose n two bolts (B) at t he rear of the cover.
3. Rotate upper half (C) forward to remove.

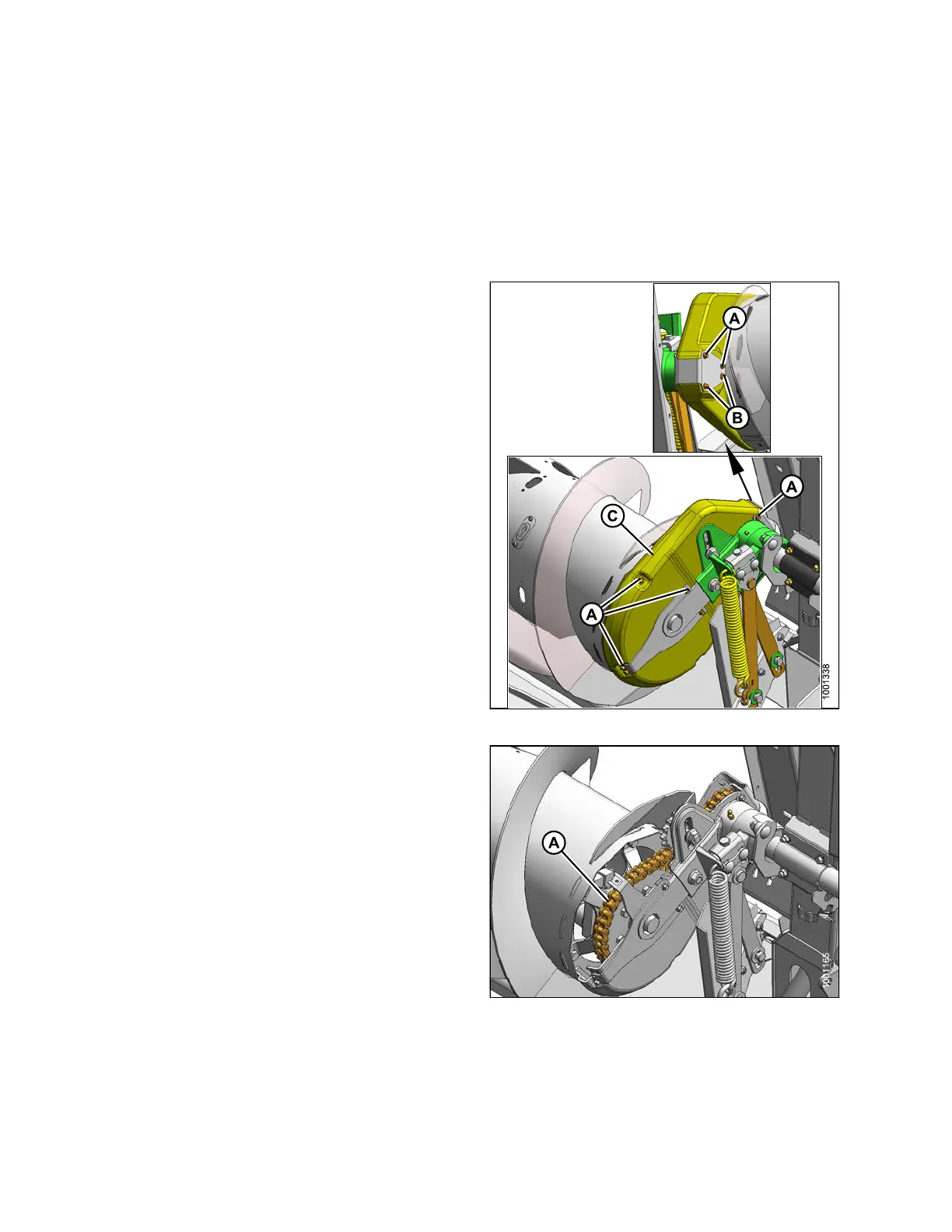

Figure 5.19: Auger Drive
4. Libera
lly apply grease to chain (A), drive sprocket (B),
and idl
er sprocket (C).
Figure 5.20: Auger Drive Chain
147695 270 Revision A
