MAINTENANCE AND SERVICING

Installing Drive Cover

1. Position the lower cover (C) ﬁrst (if removed) and

secure with thre e bolts (D).

2. Install upper cover (A) us ing the six bolts (B).

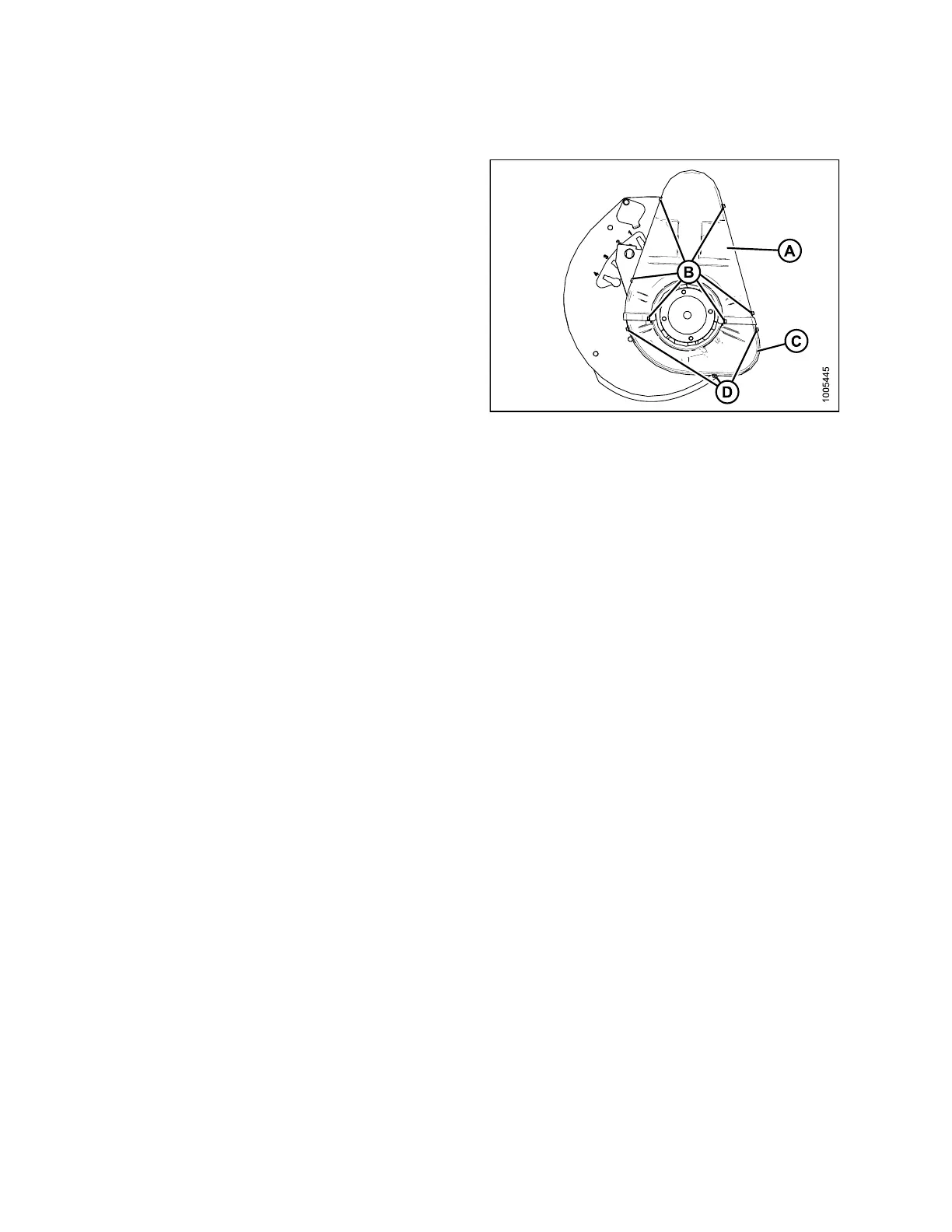

Figure 5.2

91: Reel Drive Cover

147695 392 Revision A
