OPERATION
7. Check th a t div ider does NOT move laterally. Adjust
bolts (A) as required to tighten divider and remove
lateral play when pullin g a t divider tip.
8. Close/install endshields.

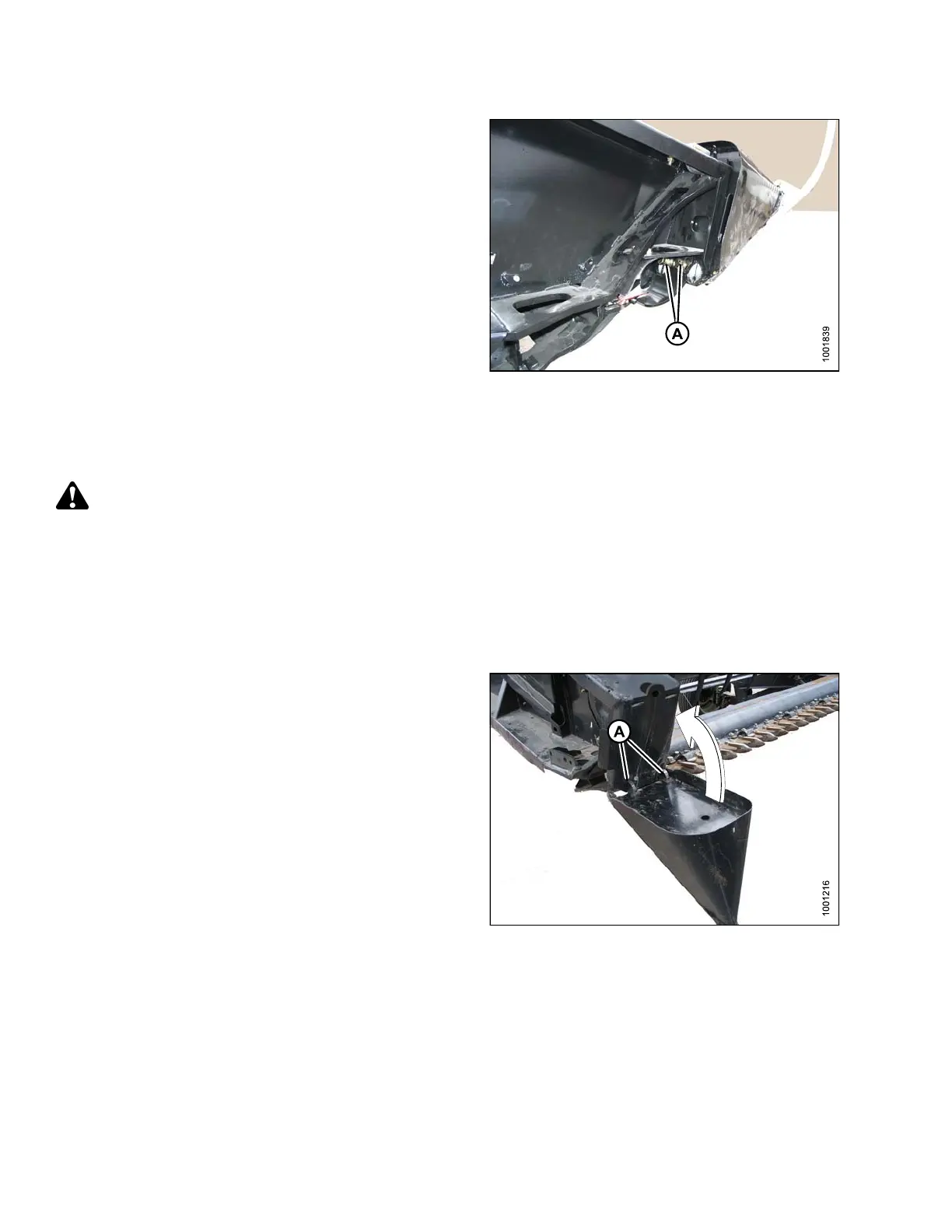

Figure 3.87: Crop Divider
Installing Crop Dividers on Header without Latch O ption
To install
crop dividers on a header without the latch option, follow these steps:
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
1. Lower reel, raise header, stop engine, remove key, and engage safety props. For instructions, refer to your
combine operator’s manual.
2. Open/remove endshields. Refer to 3.2.3 Endshields , page 33.
3. Remove c ro p div ide r from s torage.
4. Position crop divider as shown by locating lugs (A) in
holes in endsheet.
Figure 3.88: Crop Divider
147695 86 Revision A
