OPERATION
Repositioning Fore-Aft Cylinders
The reel can be moved approximately 9 in. (227 mm) further aft by repositioning the fore-aft cylinders on the reel
arms. This may be desirable when straight-combining canola. If the Multi-Crop Rapid Reel Conversion option is
installed, refer to 3.7.10 Repositioning Fore-Aft Cylinders with Multi-Crop Rapid Reel Conversion Option, page 78.
To reposition the cylinders on a double reel, follow these steps:
WARNING
Stop combine engine and remove key before making adjustments to machine. A child or even a pet could
engage the drive.
1. Position reel fully aft with support arms horizontal.
2. Stop engine and remove key.
Reposition center arm cylinder as follows:
NOTE:
Reel components are not shown for clarity.
3. Remove four bolts (A) securing cylinder bracket (B) to
reel arm.
4. Push reel back until bracket (B) lines up with the aft set
of holes (C).
5. Reinstall the four bolts (A) to secure bracket to reel arm
at new position.

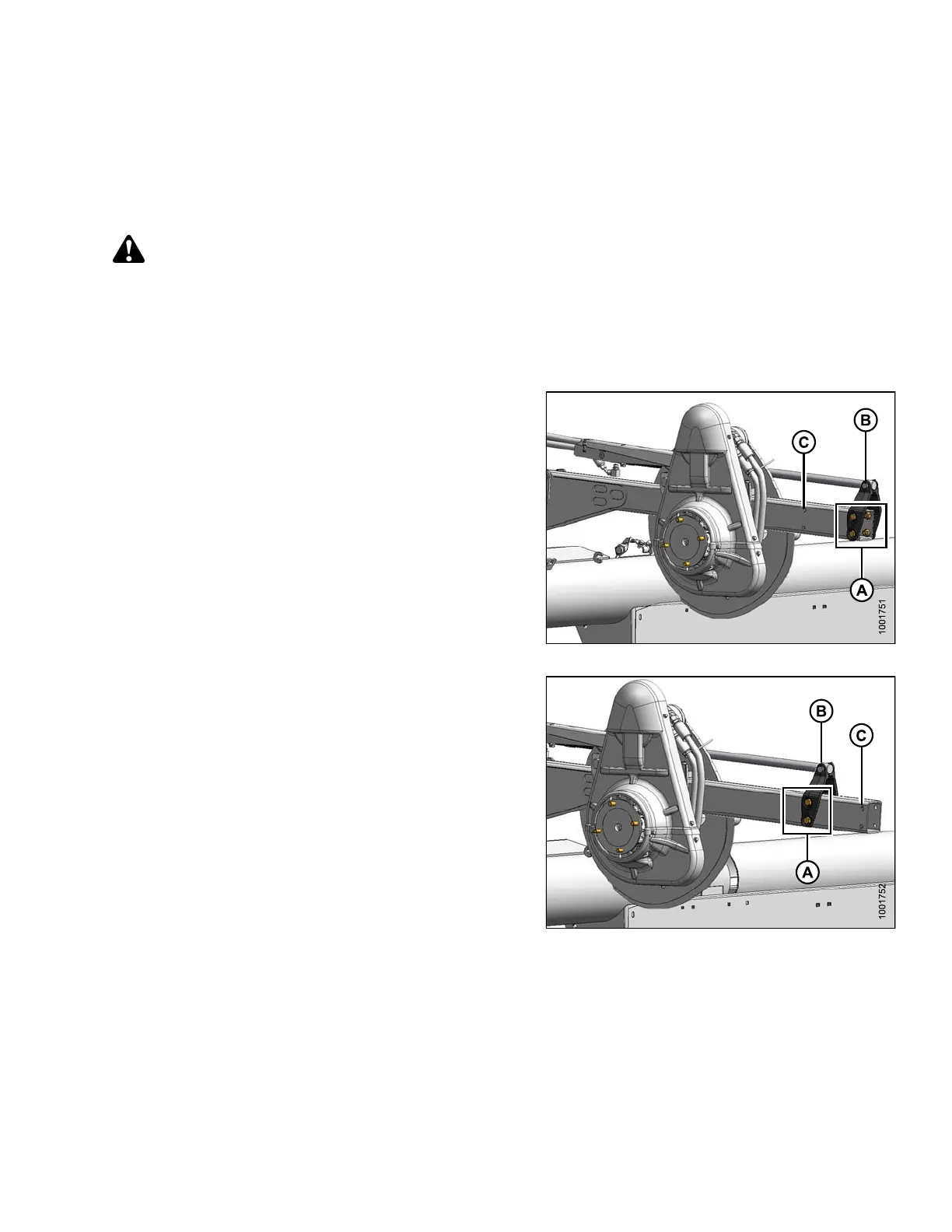

Figure 3.64: Forward Position
Figure 3.65: Rearward Position
147695 75 Revision A
