OPERATION
Reposition right arm cylinder as follows:
NOTE:
Reel components are not shown for clarity.
6. Remove four bolts (A) securing cylinder bracket (B) to
reel arm.
7. Push reel back until bracket (B) lines up with the aft set
of holes (C).
8. Reinstall the four bolts (A) to secure bracket to reel arm
at new position.

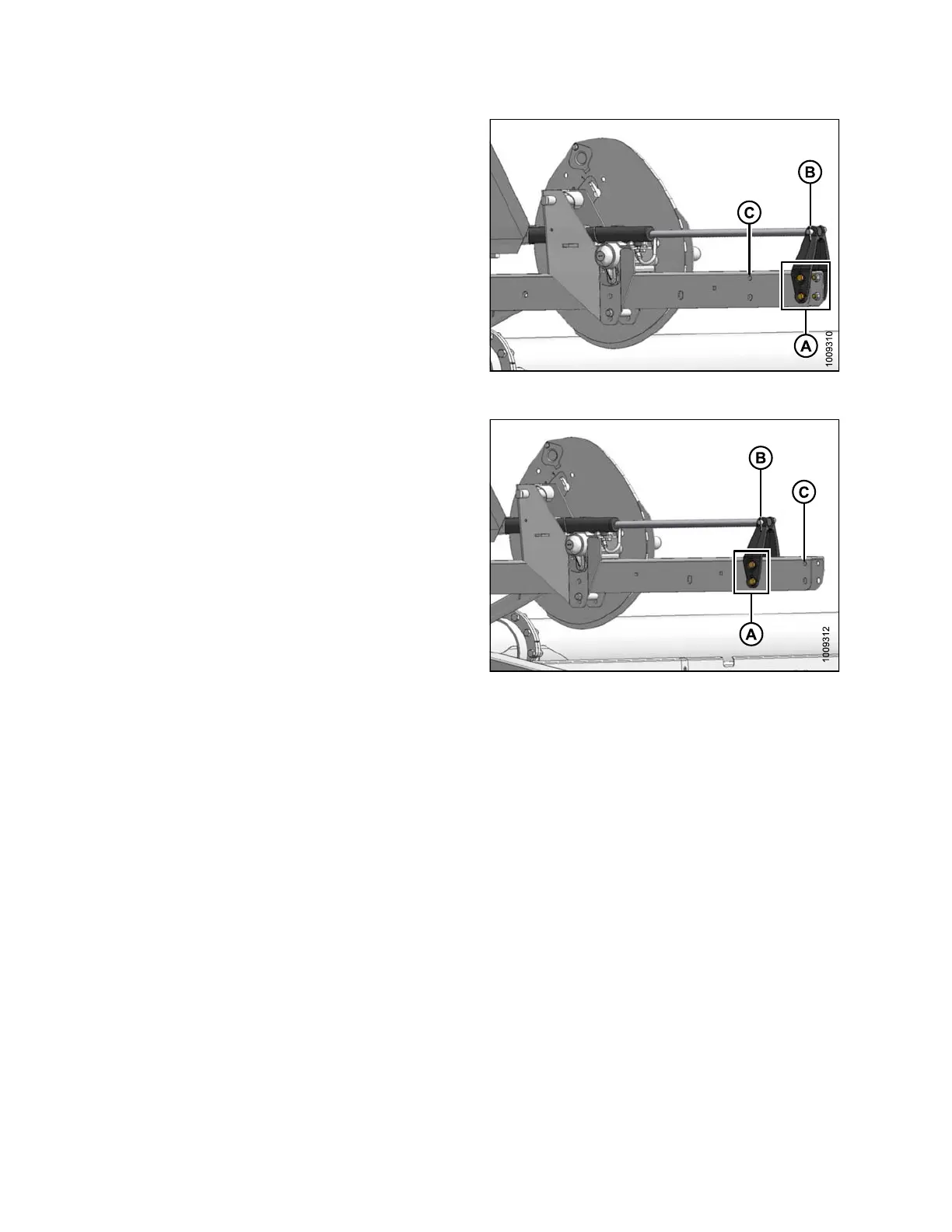

Figure 3.66: Forward Position
Figure 3.67: Rearward Position
147695 76 Revision A
