HEADER ATTA CHMEN T/DETACHMENT

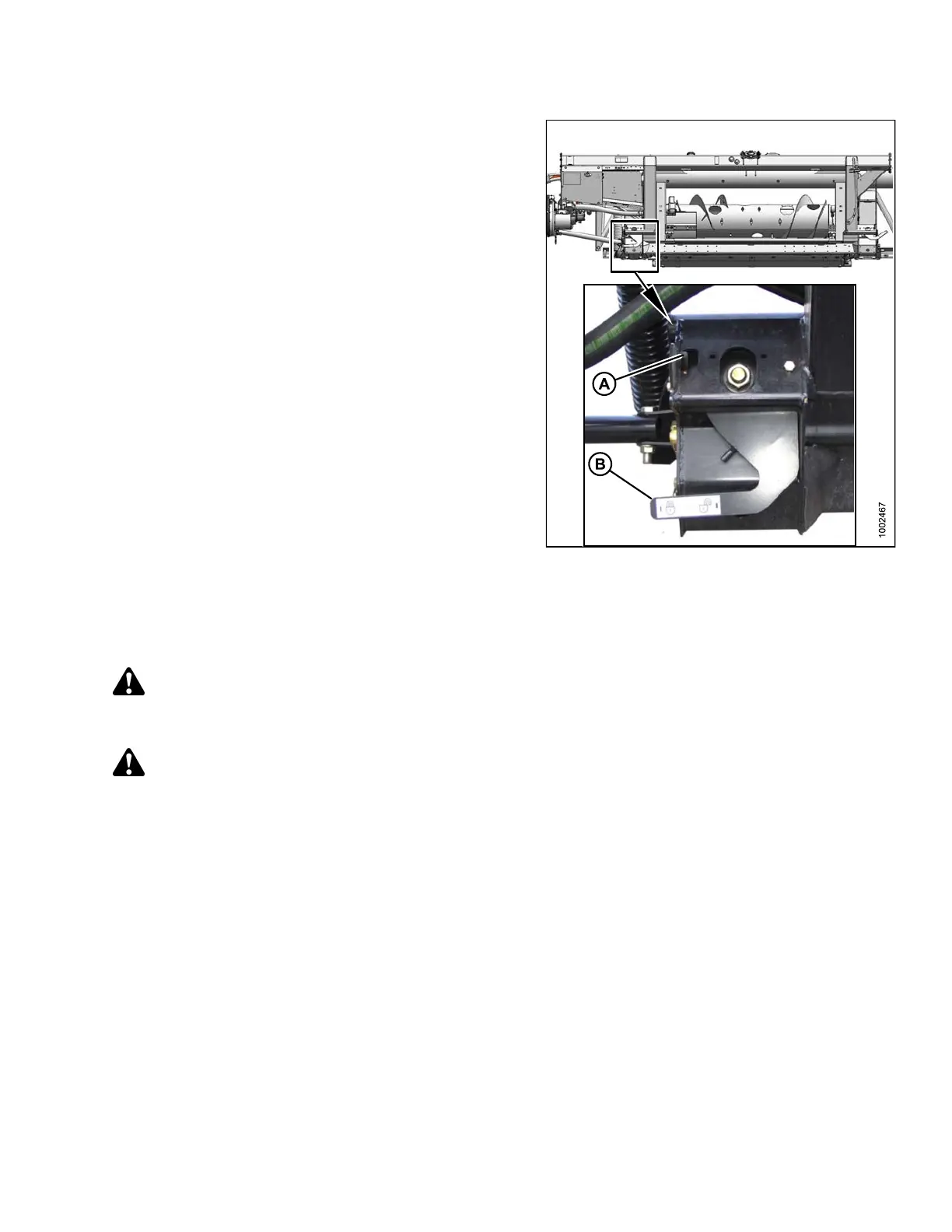

19. Disengage both adapter float locks by moving latch (A)
away from adapter, and moving both header float lock
levers (B) down (UNLOCK).
Figure 4.
63: Float Lock in UNL OCK Position
4.5.2 Detaching Header from New Holland Combine
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
DANGER
To avoid bodily injury or death from unexpected start-up of m achine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
To detach a header from a N ew Holland combine, follow these steps:
1. Choose a level area. Position header slightly off the ground. Stop engine and remove key.
147695 225 Revision A
