MAINTENANCE AND SERVICING
5.14.3 Replacing Reel Drive Motor
The reel drive
motor does not require regular maintenance or servicing. If problems develop with the motor, it
should be remo
ved and serviced at your MacDon Dealer.
Removing Driv
e Cover
1. Remove the six bolts (B) that secure the upper
cover (A) to the reel drive and to the lower cover (C).
NOTE:
The lower cover (C) may also be removed by
taking off the three bolts (D).

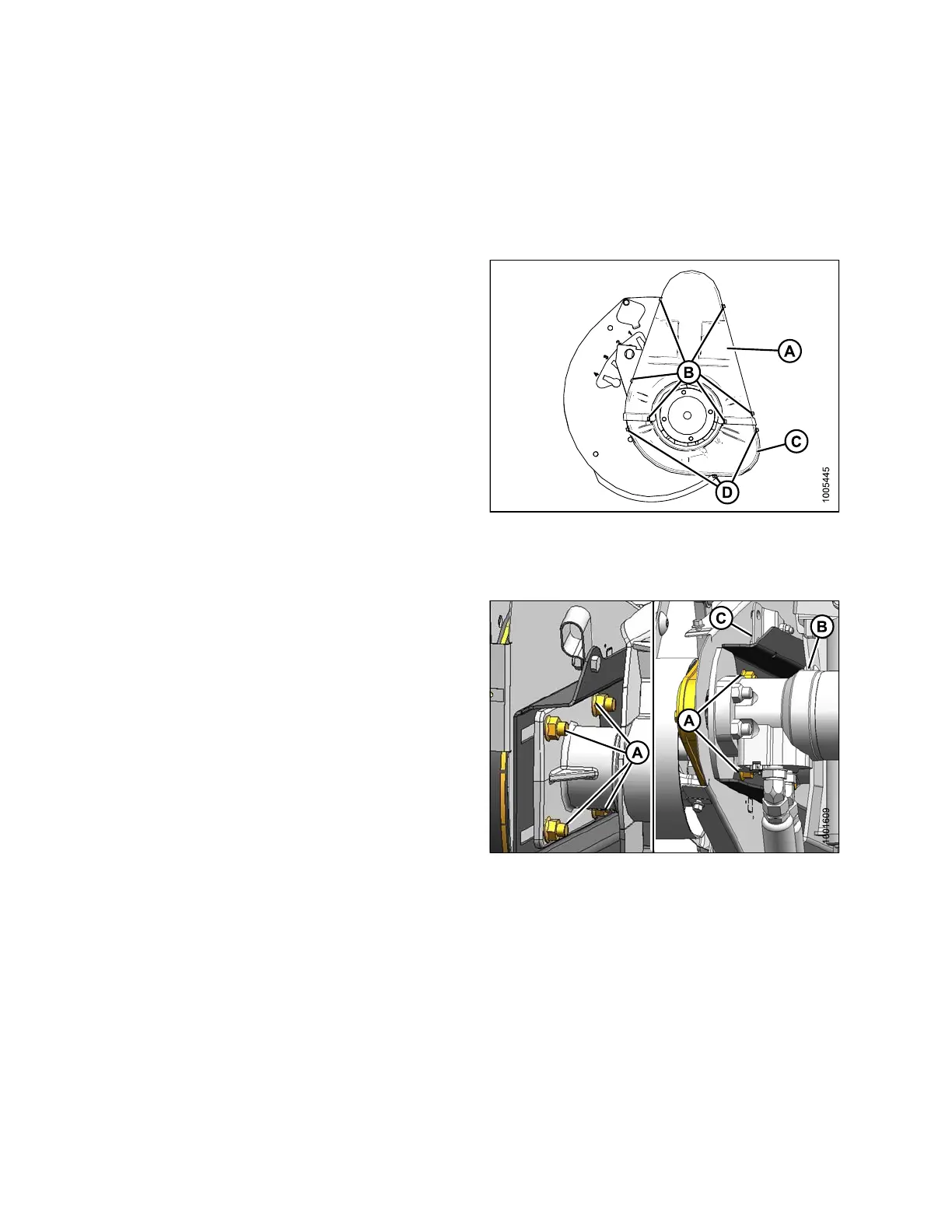

Figure 5.258: Drive Cover
Loosening Drive Chain
1. Loosen n
uts (A). Slide motor (B) and motor mo u nt (C)
down tow
ards reel shaft.
Figure 5.259: Reel Drive
147695 378 Revision A
