MAINTENANCE AND SERVICING
Loosening Drive Chain

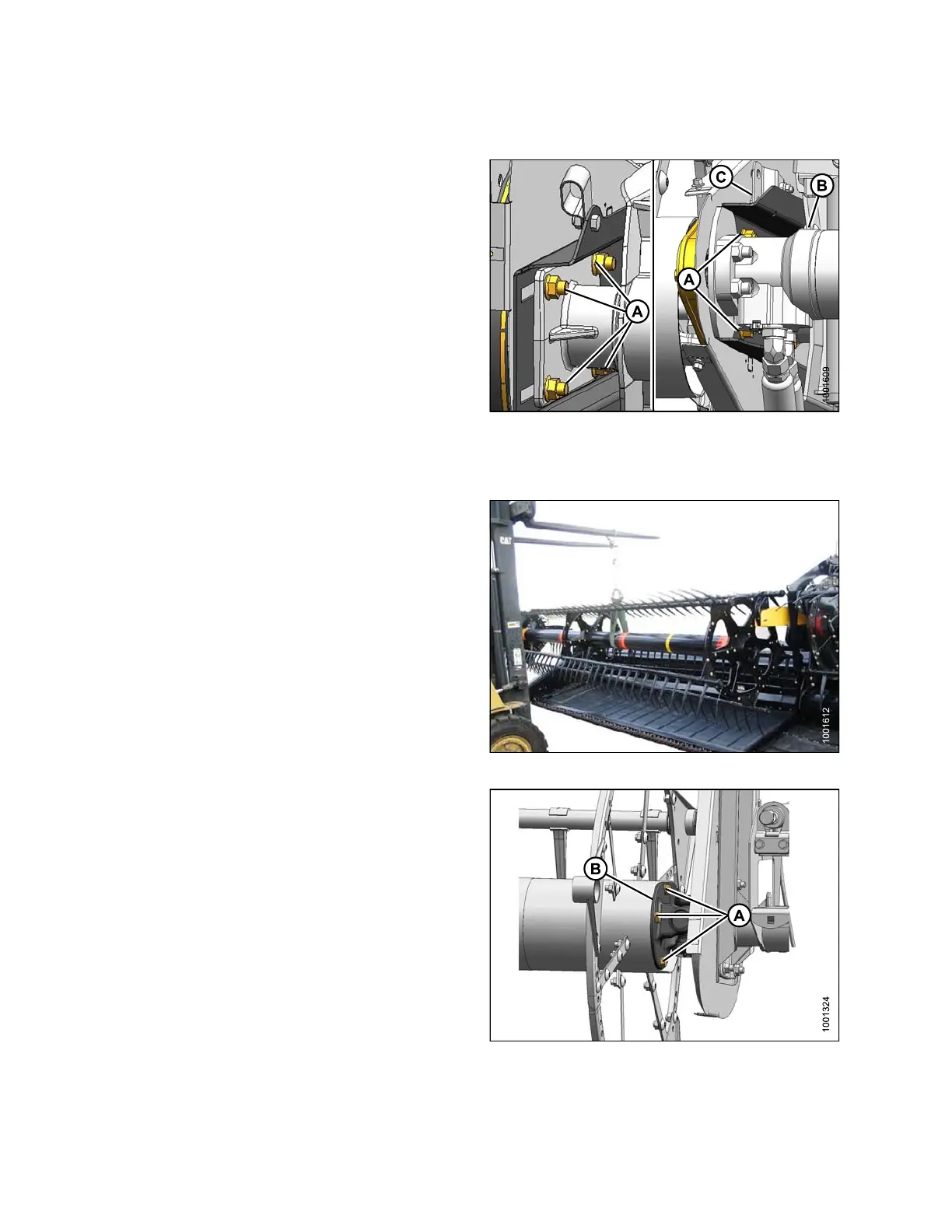

1. Loosen nuts (A). Slide motor (B) and motor mount (C)
down towards reel shaft.
Figure 5.2
71: Reel Drive
Disconnec
ting the Reel Drive Method
1. Support inboard end of right reel with a front end loader
and nylon slings (or equivalent setup).
NOTE:
To avoid d
amaging or denting center tube, support
reel as c
lose as possible t o the end disc.
Figure 5.272: Reel and Reel Support
2. Remove four bolts (A) at taching reel tube to U-joint (B).
Figure 5.273: U-Joint
147695 384 Revision A
