MAINTENANCE AN D SERVICING
Side Draper Idler Rolle r
Removing Side Draper Idler Roller
1. If draper conn
ector is not visible, engage the header
until the conn
ector is accessible, preferably close to the
outboard end
of the deck.
WARNING
To avoid bodily injury or death from unexpected
start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going
under machine for any reason.
2. Raise header and reel, and then shutdown
the combine.
3. Engage combine safety props and reel lift cylinder
safety props.
4. Loosen draper by turning adjuster bolt (A)
counterclockwise.

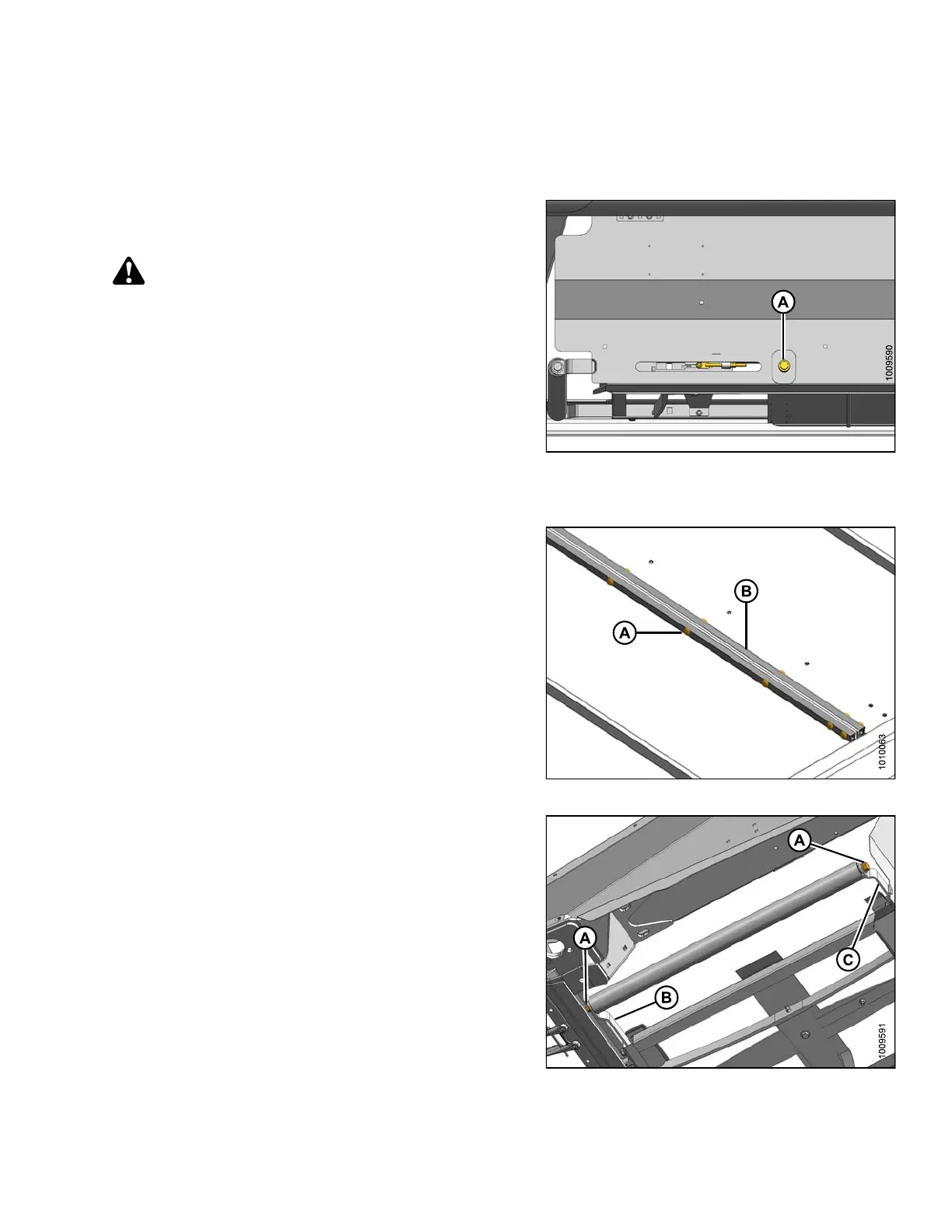

Figure 5.170: Tensioner
5. Remove fasteners (A) and tube connectors (B) at the
draper joint to uncouple the draper.
6. Pull the draper off the idler roller.
Figure 5.171: Draper C onnector
7. Remove bolts (A) and washer at ends of idler roller.
8. Spread roller arms (B) and (C), and remove idler roller.
Figure 5.172: Idler Roller
147695 341 Revision A
