OPTIONS AND ATTACHMENTS
6.4.3 Draper D
eflector (Narrow)
Narrow metal d
eflectors attach to the inboard side of the
endsheets and
prevent material from falling through the
gap between th
e endsheet and draper while minimizing
reel carryov
er in bush y type crops.
Refer to the F
D75 FlexDraper
®
Combine H eader Parts
Catalog for r
equired parts.

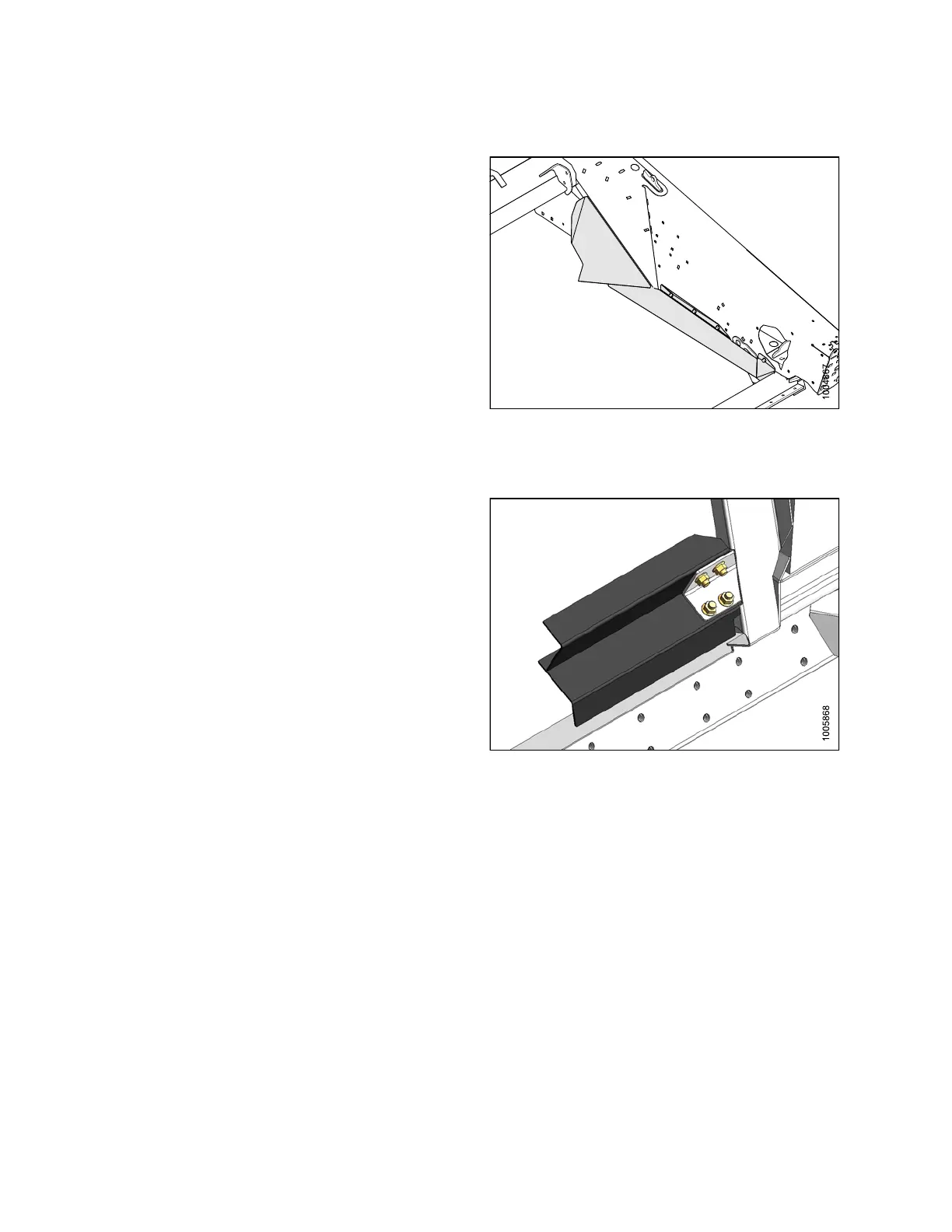

Figure 6.15: Draper Deflector
6.4.4 Stripper Bars
StripperBarkitsareavailableasanoptiontoimprove
feeding in certain crops such as rice. They are NOT
recommended in cereal crops.
The model of combine determines which Stripper Bar kit
is required.
Order the correct bundle listed below for your combine:
• L exion (Narrow Body) – MD #B483 0
• Lexion (W i de Body) – MD #B4920
• CIH 2377/88 and 2577/2588 – MD #B4830
• JDCTS/STS–MD#B4921
• CIH 7010/8010 – MD #B4922
• NH CR 970/980/9070/9080 – MD #B4922
• NHCX/TXCIH2366–MD#B4920
• NH CR 940/960/9040/9060 – MD #B4923
Figure 6.16: Stripper Bar
147695
4
14
Revision A
