OPERATION
Setting Cutting Height (Lexion 500 Series)
Cutting heights can be programmed into the preset cutting height and auto contour systems. Use the preset
cutting height system for cutting heights above 5.9 in. (150 mm), and use the auto contour system for cutting
heights below 5.9 in. (150 mm).
Setting Preset Cutting Height (Lexion 500 Series)
NOTE:
Changes may h
ave been made to the combine controls or display since this document was published. Refer to
the combine o
perator’s manual for updates.
1. Start the engine.
2. Activate the machine enable switch.
3. Engage the threshing mechanism.
4. Engage the header.
5. Brieflypressbutto
n (A) in order to activate the auto
contour system, o
rbriefly press button (B) in order to
activate the pres
et cutting height system.
NOTE:
Button (A) is used only with Auto Header Height
Control (AHHC) function. Button (B) is used only
withthereturntocutfunction.

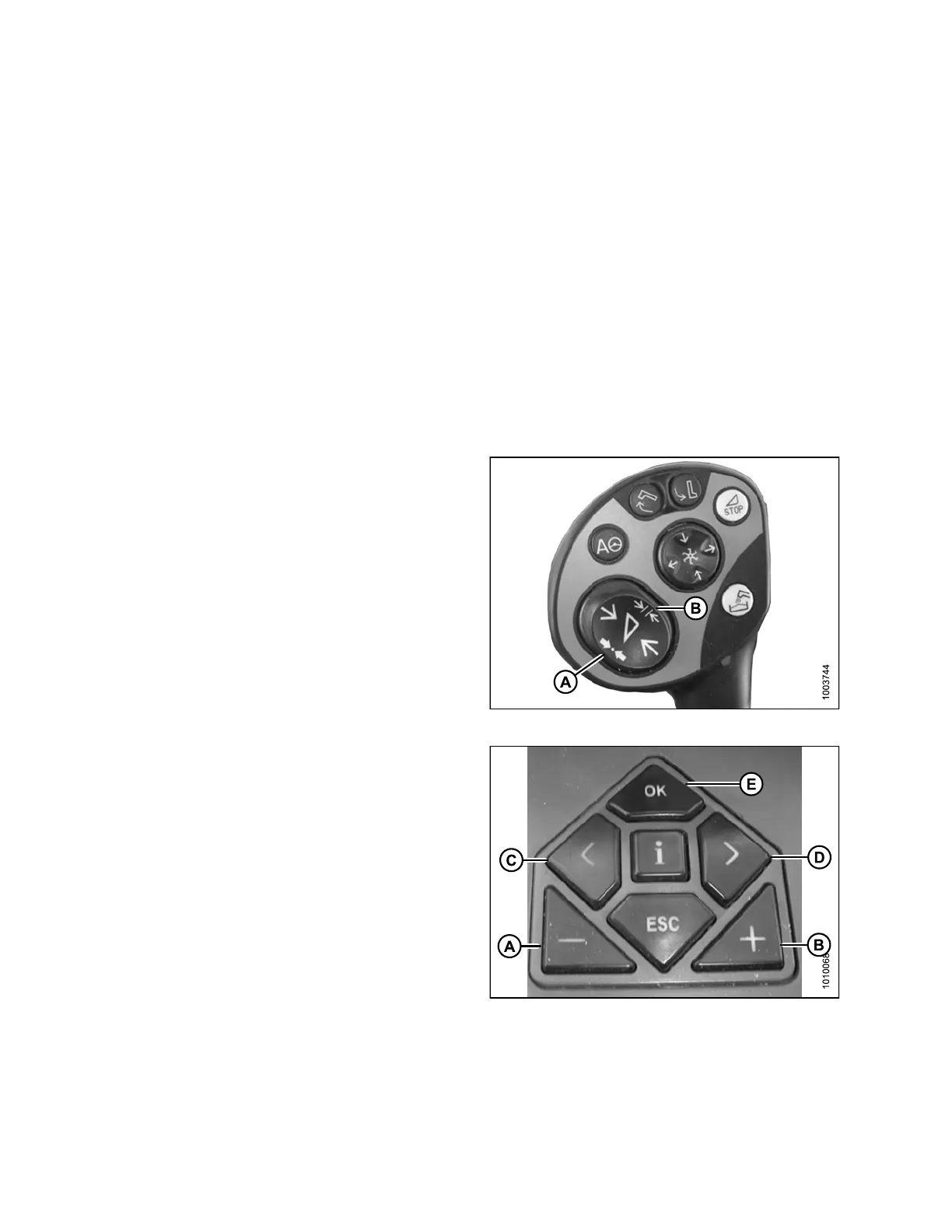

Figure 3.219: Joystick Buttons
6. Use the ‘<’ key
(C)or‘>’key(D)toselecttheCUTTING
HEIGHT window
, and press the OK key (E).
7. Use the ‘-’ key
(A) or the ‘+’ key (B) to set the desired
cutting heig
ht. An arrow indicates the selected cutting
height on the
scale.
Figure 3.220: Combine Controls
147695 152 Revision A
