OPERATION
5. Remove clevis pin (A) and set aside for
later installation.
6. Push latch (B) and lift tow-b ar (C) from hook.
Release latch.
7. Reinsta ll clevis pin.

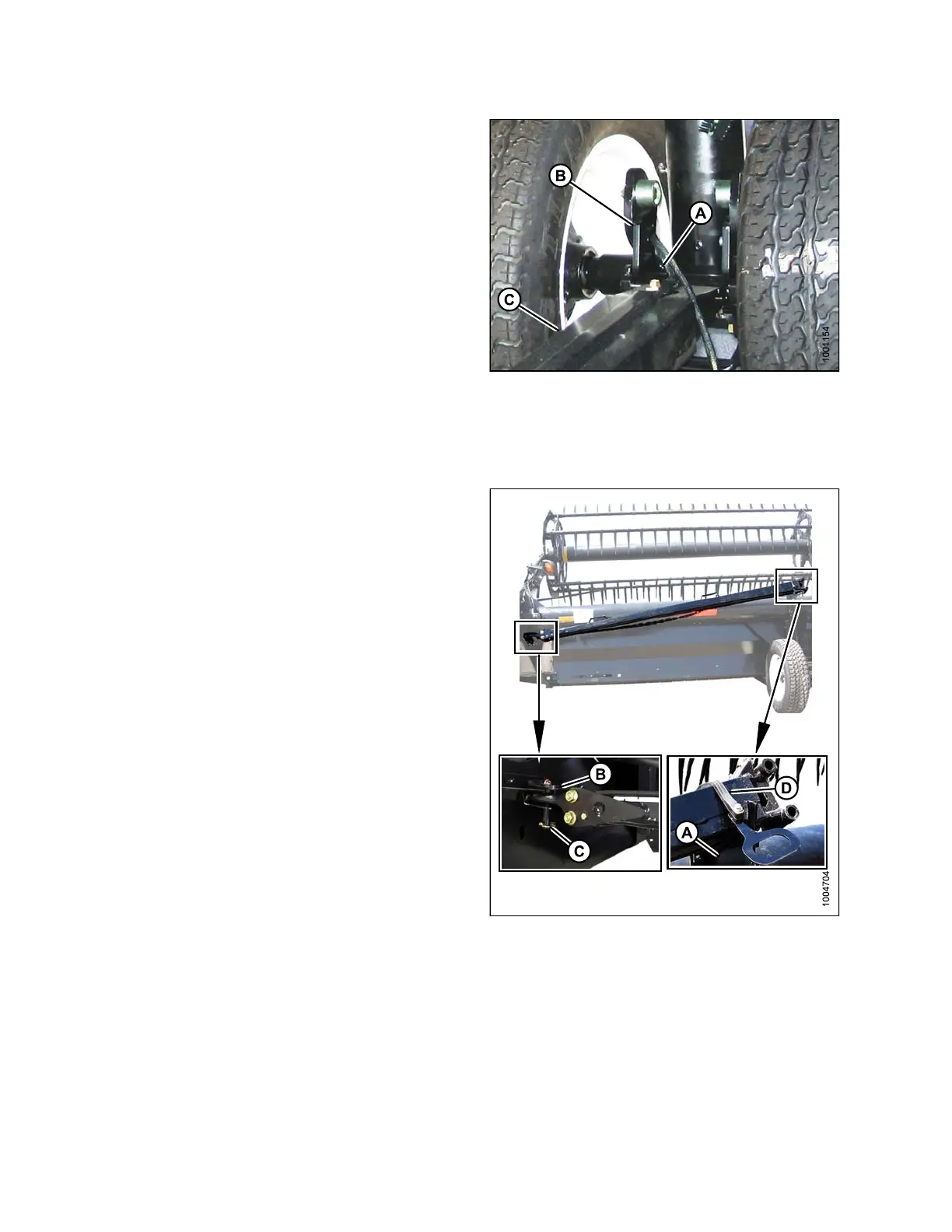

Figure 3.271: Tow-Bar Latch
Storing Tow-Bar
Store tow-
bar as follows:
1. At the lef
t end of the header, place the inner end
of the out
er half of the tow-bar in cradle (A) on
header ba
cktube.
2. For clevi
s or pintle end of tow-bar, secure in support (B)
on endshe
et with hitch pin (C). Secure with ly nch pin.
3. Install
rubber strap (D) on cradle (A).
Figure 3.272: Tow-Bar Storage
147695 182 Revision A
