MAINTENANCE AND SERVICING
5.13 Reel
CAUTION
To avoid personal injury, before servicing machine or opening drive covers, refer to 5.1 Preparation for
Servicing, page 251.
5.13.1 Reel Clearance to Cutterbar
The minimum c learance betwe en the r eel fingers and the cutterbar ensures that the reel fingers do not contact
the cutterbar during operation. The clearance is adjusted at the factory, but adjustments may be necessary
before the header is put into operation.
The finger to guard/cutterbar clearances with reels fully lowered are shown in Table 5.2 Fin ger to Guard/Cutterbar
Clearance, page 350.
IMPORTANT:
Measurements must be taken at both ends of each reel and at the cutterbar flex locations with the header
in full-frown mode.
Table 5.2 Finger to Guard/Cutterbar Clearance
Header Wid
th
‘X’ +/- 1/8 in. (3 mm) a t Reel
Ends and Flex Locations
30 ft.
35 ft.
40 ft.
45 ft.
3/4 in.
(20 mm)

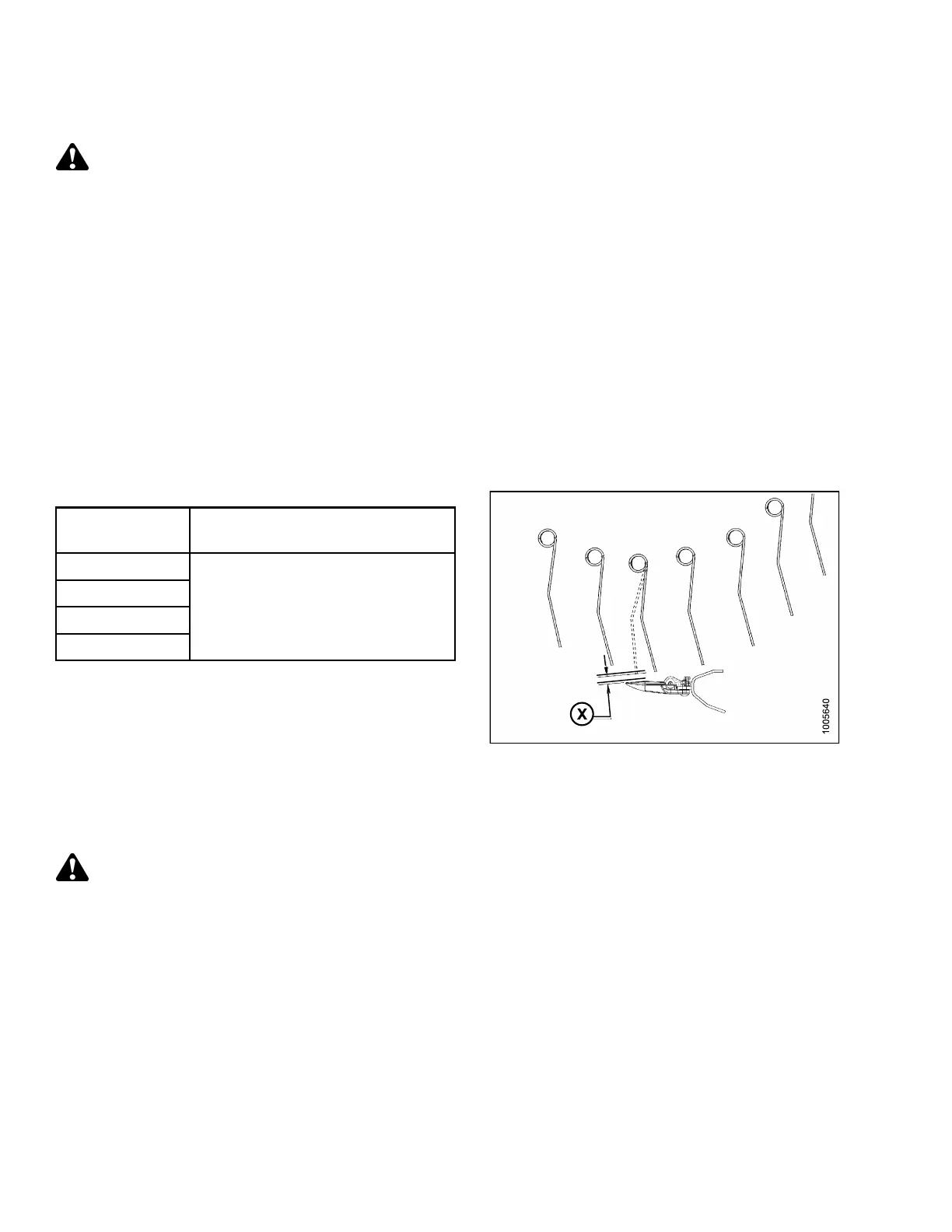

Figure 5.190: Finger Clearance
Measuring Reel Clearance
To m e asure the finger-to-guard/cutterbar clearance, follow these steps:
DANGER
To avoi
d bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove
key, and engage safety props before going under header for any reason.
1. Park header on level ground.
