MAINTENANCE AN D SERVICING

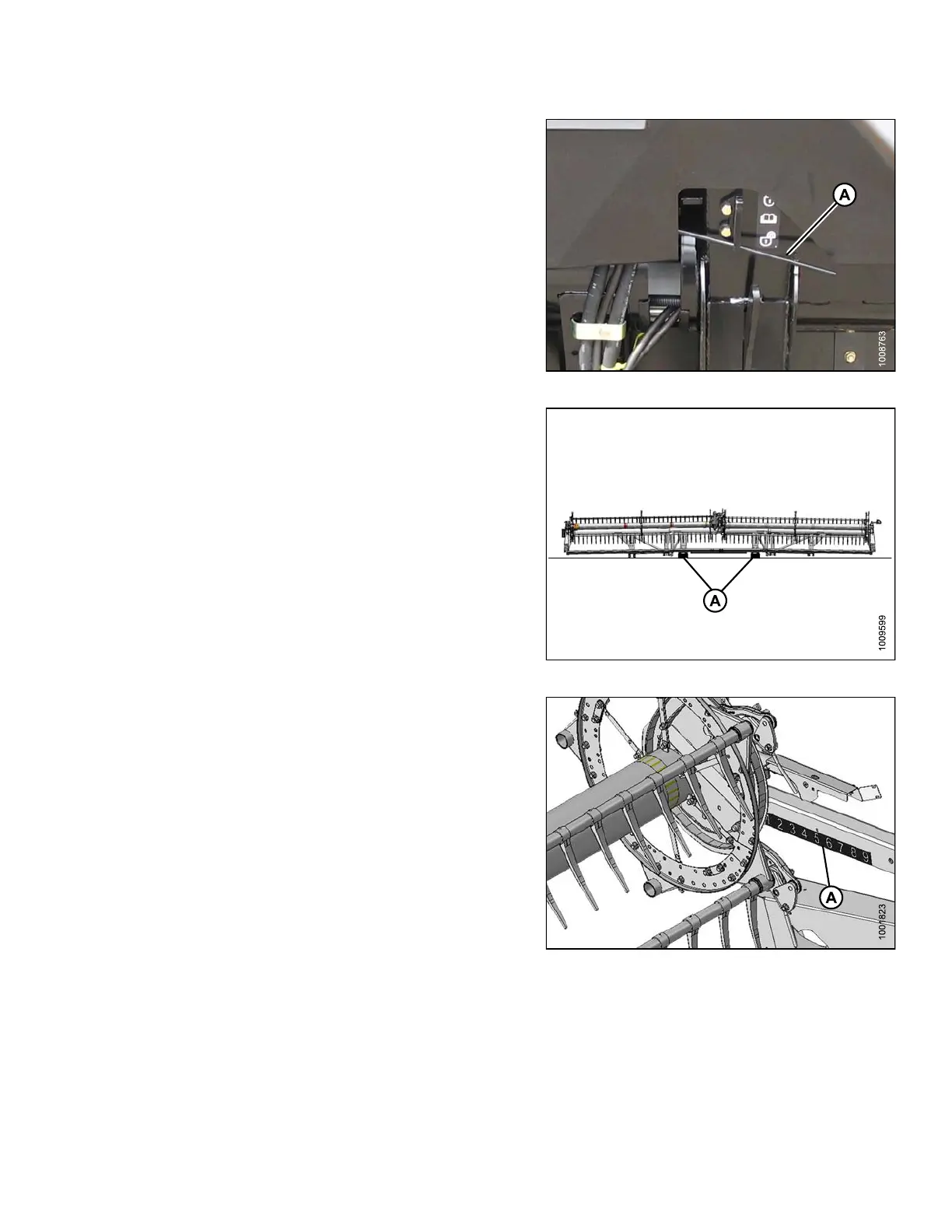

2. Move spring handles (A) down to (UNLOCK) position.
Figure 5.191: Wing Lock in U NLOCK Position
3. Raise header and place two 6 in. (150 mm) blocks (A)
under the cutterbar, just inboard of the wing flex points.
4. Lower header fully, allowing it to fle x into ‘full
frown’ mode.
Figure 5.192: FlexDraper
®
Block Locations
5. Set the fore-aft position to the middle position on the
reel arm indicator decal (A).
6. Fully lower the reel.
7. Shut down engine. Remove key from ignition.
Figure 5.193: Fore-Aft Position
147695 351 Revision A
