OPERATION
10. Press the CAL button (A) to save the calibration of the
header – HDR H-UP appears on the monitor.
11. Raise the header three feet off the ground and press
the CAL (A) button – EOC appears on the monitor.
12. Press the enter button (B) to save the calibrat ion of the
header. Your AHHC is now calibrated.
NOTE:
If an error code appears during calibration, the
sensor is out of voltage range and will require
adjustme nt. Refer to Checking Voltage Range
fromtheCombineCab(JohnDeere60Series),
page 131.
NOTE:
After the calibration is complete , adjus t
combine operation settings to ensure proper
field operation.

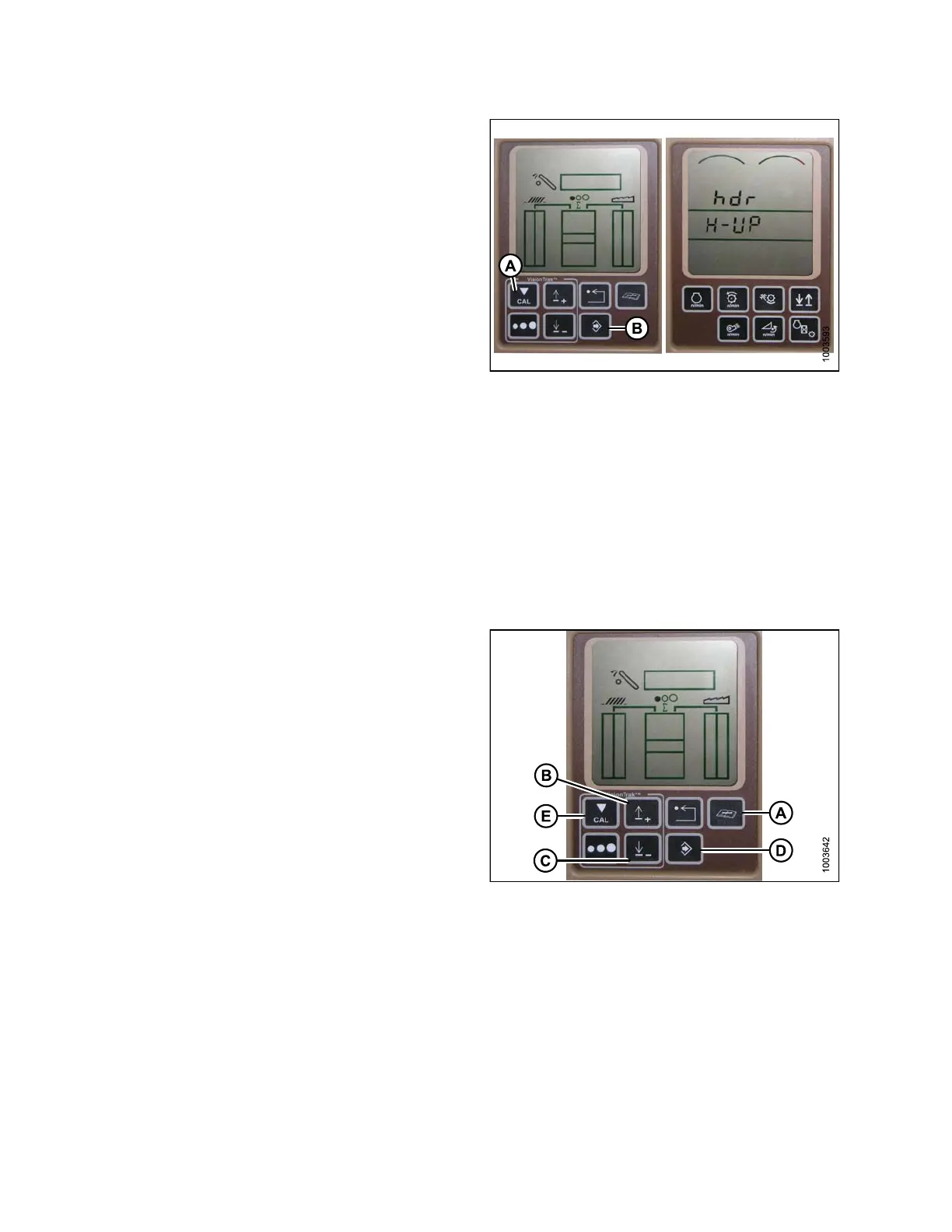

Figure 3.178: Combine Display
TurningtheAccumulatorOff(JohnDeere60Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to
the combine operator’s manual for updates.
1. Press the DIAGN
OSTIC button (A) on the monitor –
DIA appears on t
he monitor.
2. Press the UP but
ton (B) until EO1 appears on
the mon itor, a
nd press ENTER (D) – this is the
header adjust
ment.
3. Press the UP (B
) or DOW N (C) button until ‘132’ is
displayed on t
he top portion of th e monitor – this is the
reading for t
he accumulator.
4. Press ENTER (
D) to select ‘132’ as the accumulator
reading (thi
s will allow you to change the display
to a three-di
git number so it has a ‘0’ in it. For
example, ‘x
0x’).
5. Press the UP
(B) or DOWN (C) button until the desired
number is di
splayed, and press the CAL (E) button.
6. Press ENTER
(D) to save the changes. The
accumulat
or is now deactivated.
Figure 3.179: Combine Display
Setting t he Sen s ing G rain Header Height to 50 (John Deere 60 Series)
NOTE:
Changes may have
been made to the combine controls or display since this document was published. Refer to
the combine oper
ator’s manual for updates.
147695 134 Revision A
