MAINTENANCE AND SERVICING
Tightening Drive Chain
1. Ensure the six bolts (B) securing motor mount to chain
case are loose.
2. Slide motor and motor mount upwards until chain (A)
is tight, and tighten bolts (nuts on backside).
3. There should be 1/8 in. (3 mm) of slack in the chain.
Adjust if necessary.
4. Torque bolts (B) to 54 ft·lbf (73 N·m).

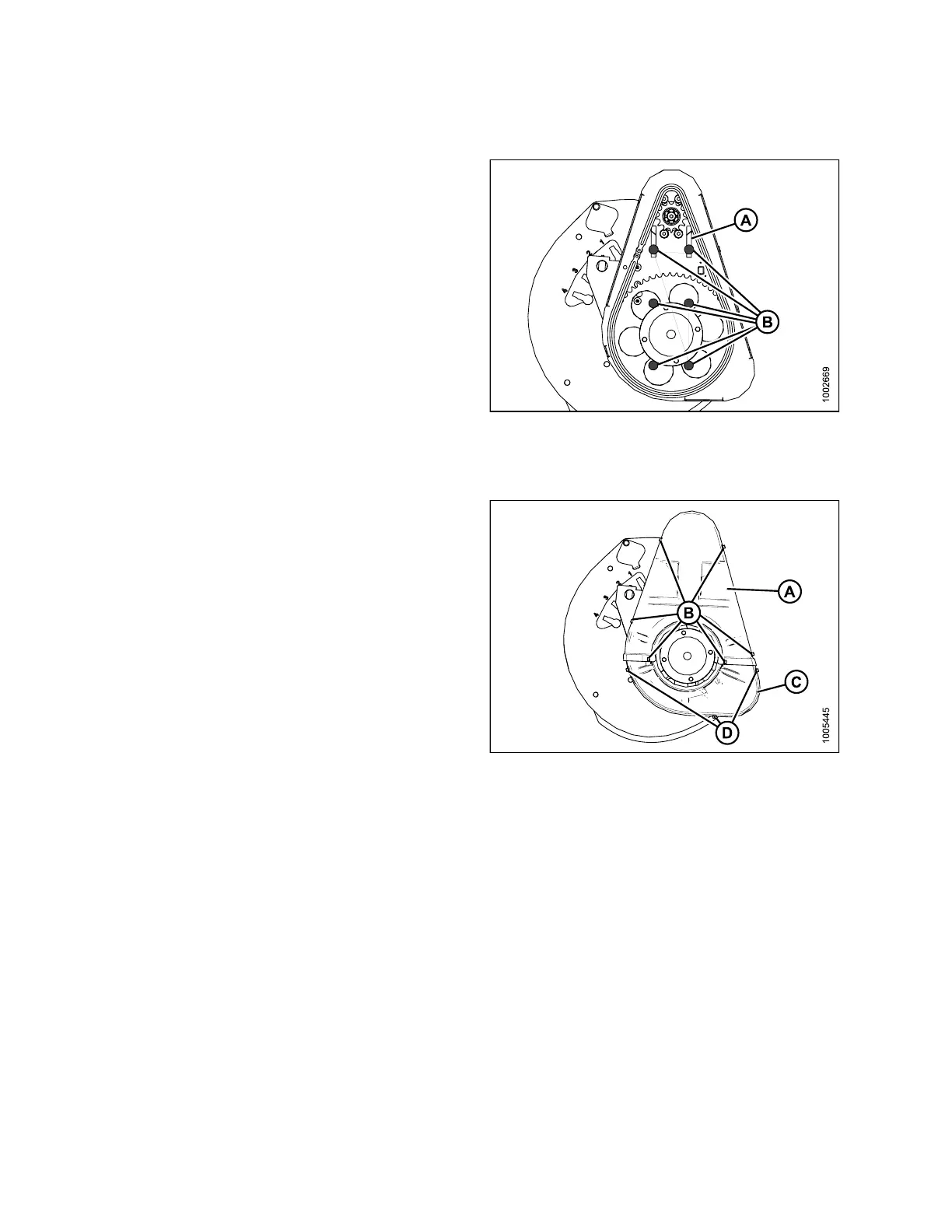

Figure 5.2
82: Reel Drive
Installin
g Drive Cover
1. Position the lower cover (C) first (if removed) and
secure with thre e bolts (D).
2. Install upper cover (A) us ing the six bolts (B).
Figure 5.283: Reel Drive Cover
147695 388 Revision A
