MAINTENANCE AN D SERVICING
1. Apply talc (baby powder) or talc/graphite lubricant
mix to the draper surface that forms the seal with the
cutterbar and to the underside draper guides.
2. Insert draper into deck at outboard end, under the
rollers. Pull draper into deck while feeding it at the end.
3. Feed in the draper until it can be wrapped around the
drive roller.
4. Similarly, insert the other end into the deck over the
rollers. Pull draper fully into the deck.

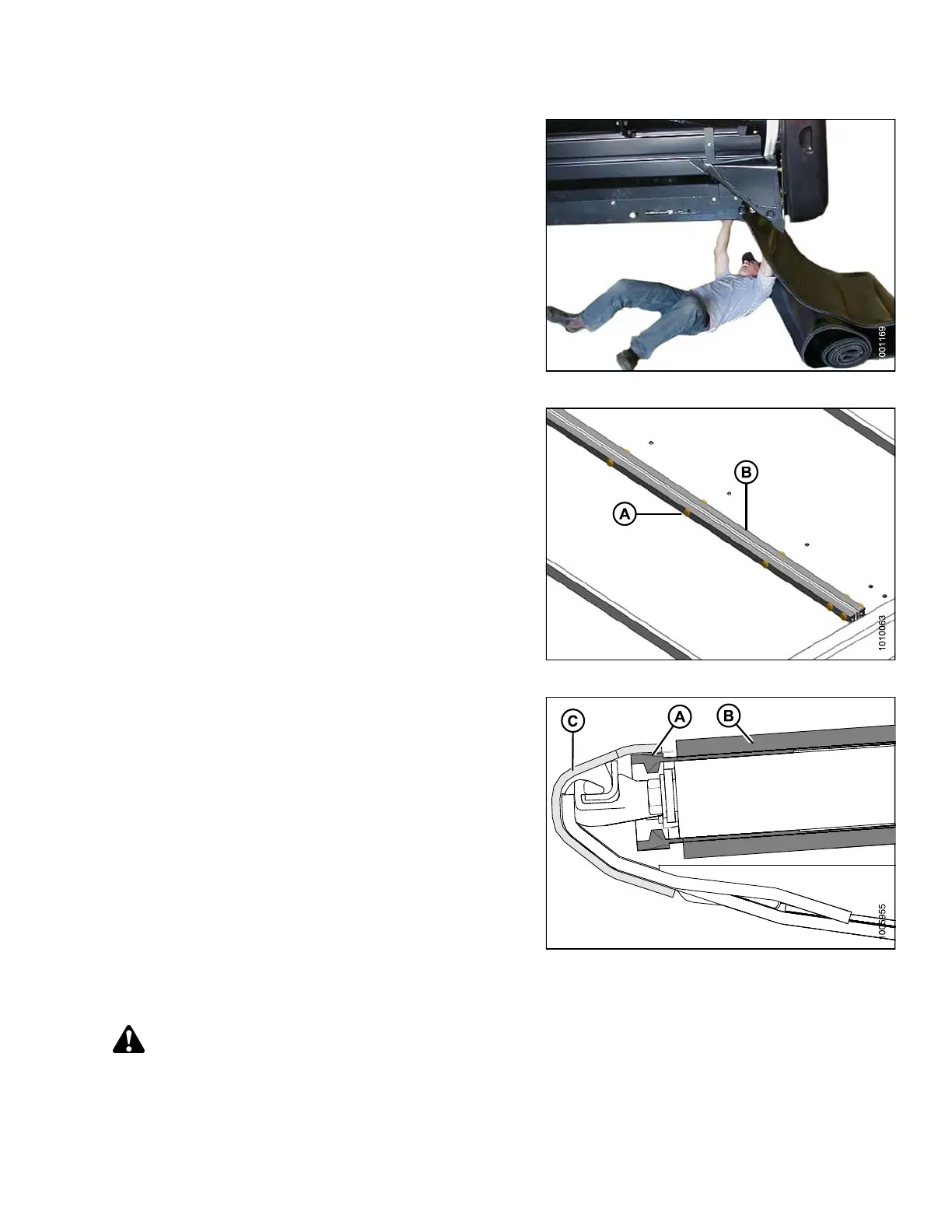

Figure 5.156: Draper Installation
5. Attach ends of draper with tube connectors (B),
screws (A) with heads facing the center opening,
and nuts.
6. Adjust tension. Refer to 5.12.3 Adjusting Side Draper
Tension, page 335.
Figure 5.157: Draper C onnector
7. Check for seal between the drapers and the cutterbar.
There should be a 0.04–0.08 in. (1–2 mm) gap (A)
between the cutterbar (C) and the draper (B).
8. To achieve the proper gap, refer to 5.12.5 Adjusting
Deck Height, page 339.
Figure 5.158: Draper Seal
5.12.3 Adjusting Side Draper Tension
WARN
ING
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under machine for any reason.
147695 335 Revision A
