MAINTENANCE AN D SERVICING

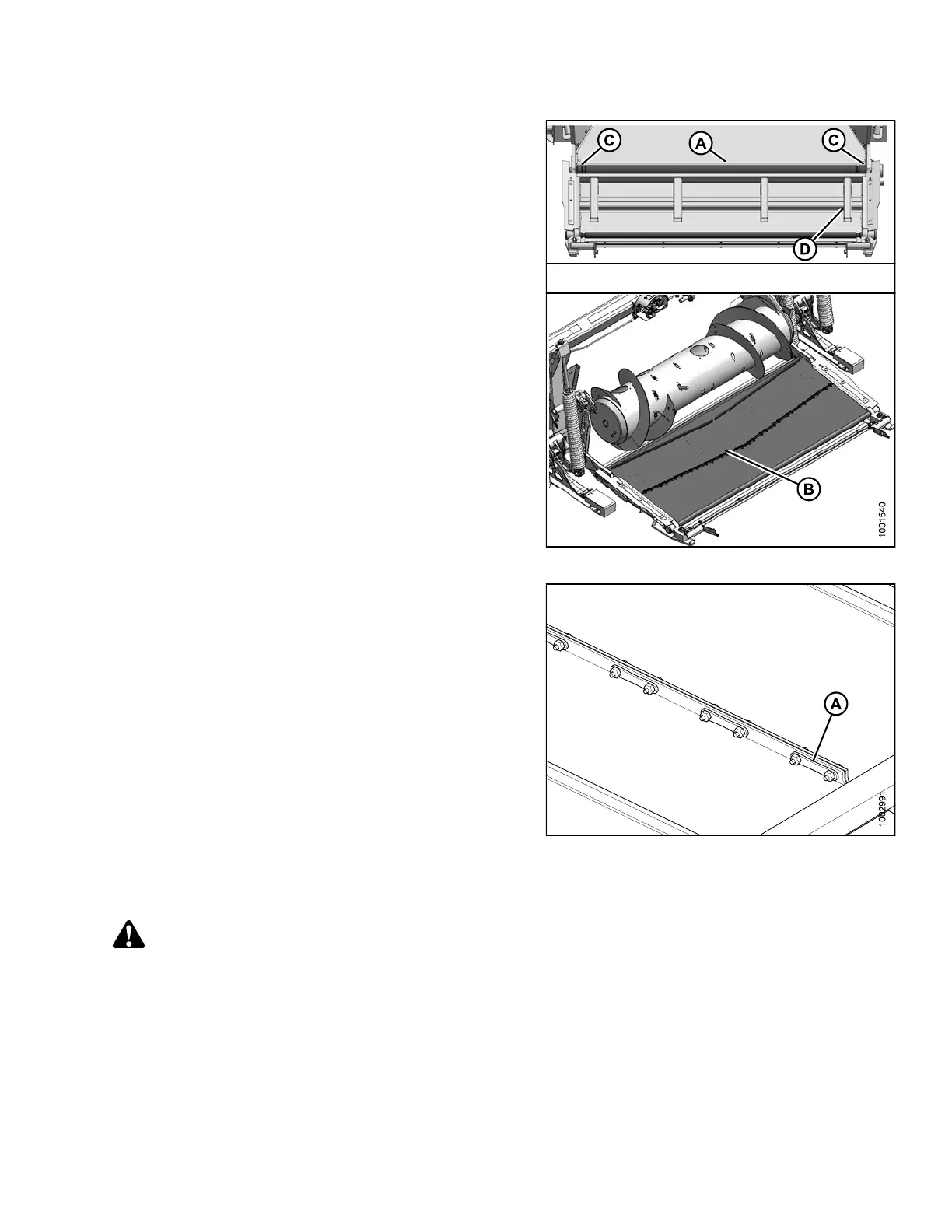

7. Install new draper over drive roller (A) with chevron
cleat (B) pointing to front of adapter. Make sure draper
guides fi t in drive roller gr ooves (C).
8. Pull draper along bottom of adapter deck and over
draper supports (D).
Figure 5.
129: Adapter Draper
9. Connect draper joint with straps (A). Secure with nuts
and screws. Screw heads should face toward rear
of the deck. Tighten nuts so that end of screw is
approximately flushwithnut.
10. Adjust draper tension. For instructions, refer to 5.10.2
Adjusting Feed Draper Tension, page 323.
Figur
e 5.130: Draper C onnector Straps
5.10.
2 Adjusting Feed Draper Tension
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
1. Raise header fully, stop engine, and remove key. Engage header safety props.
2. Check that draper guide (rubber track on underside of draper) is properly engaged in groove of drive roller and
that idler roller is between the guides.
147695 323 Revision A
