MAINTENANCE AN D SERVICING
2. Push finger top clip back toward reel tube and remove
from finger tube.

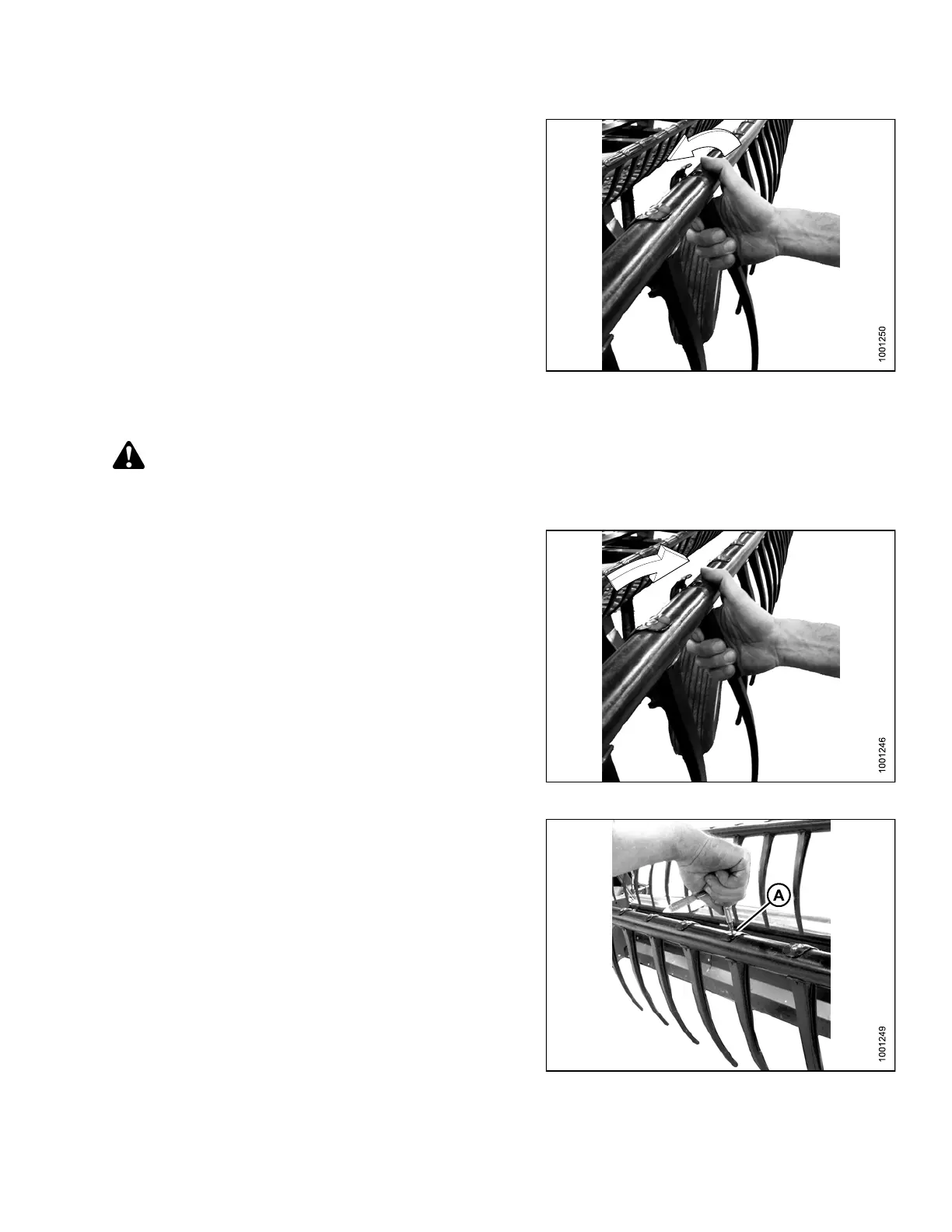

Figure 5.204: Plastic Fingers
Installing Plastic Fingers
WARNING
To avoid bodily injury from fall of raised reel, a lways engage reel safety props before going under raised
reel for any reason.
1. Position finger on rear of finger tube and engage lug at
bottom of finger in lower hole in finger tube.
2. Gently lift top flange and rotate finger until lug in t op
flange engages upper hole in finger tube.
Figure 5.205: Plastic Fingers
IMPORTAN T:
Do NOT apply force to finger prior to tightening
mounting screw. Applying force to finger without screw
tightened will break finger or shear off locating pins.
3. Install screw (A) and torque to 75–80 in·lbf
(8.5–9.0 N·m) with a Torx
®
-Plus 27 IP socket wrench.
Figure 5.206: Plastic Fingers
147695 357 Revision A
