PRODUCT OVERVIEW

2.3.2 CA25 Com

bine Adapter

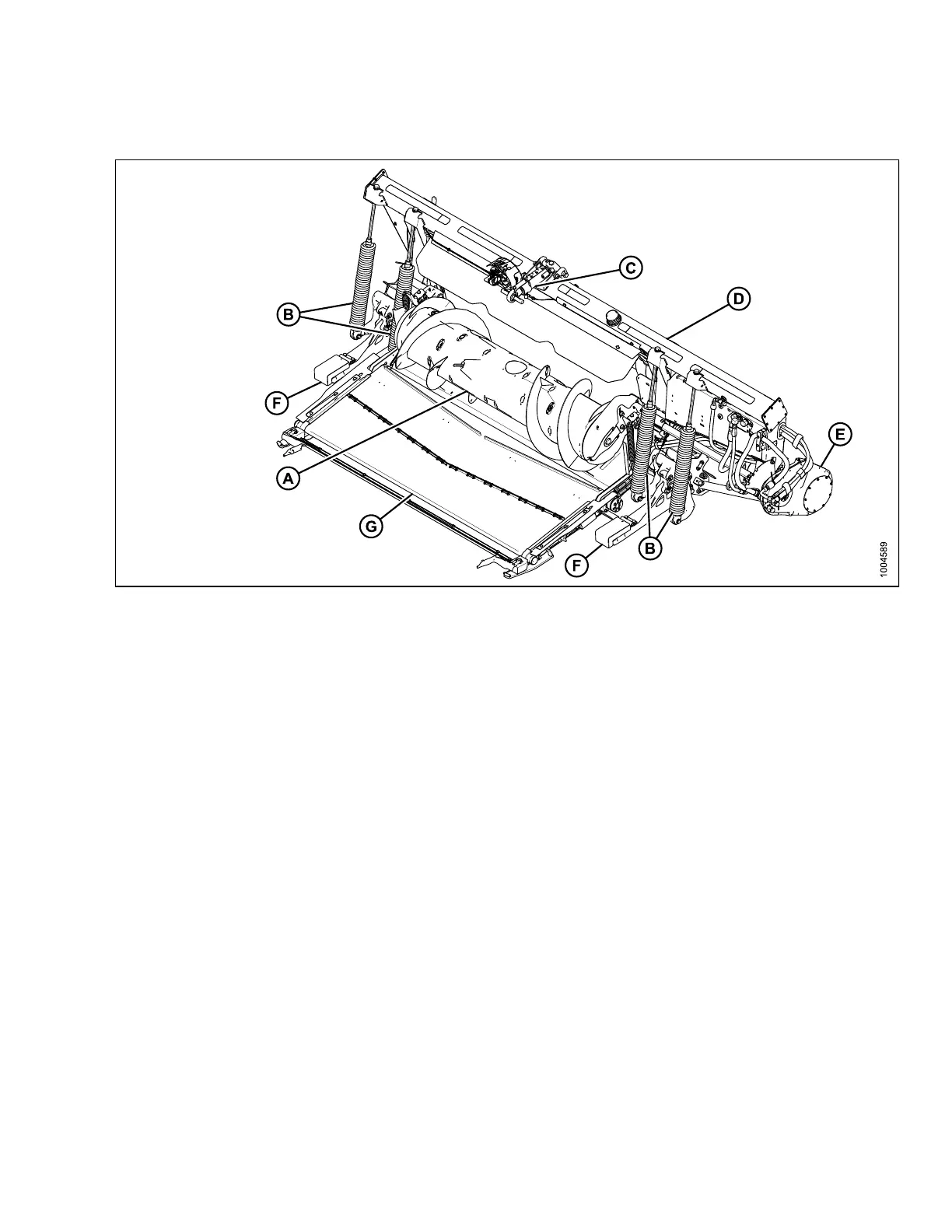

Figure 2.3: Header Side of CA25 Combine Adapter

A - Feed A

uger

B - Header Float Springs C - Center-Link

D - Hydraulic Reservoir

E - Gearbox F - Header Support Arm

G - Feed Draper

147695

Revision A
