MacDon FFT FlexDraper FD75 - Component Identification

PRODUCT OVERVIEW
2.3 Component Identification
2.3.1 FD75 FlexDraper
®

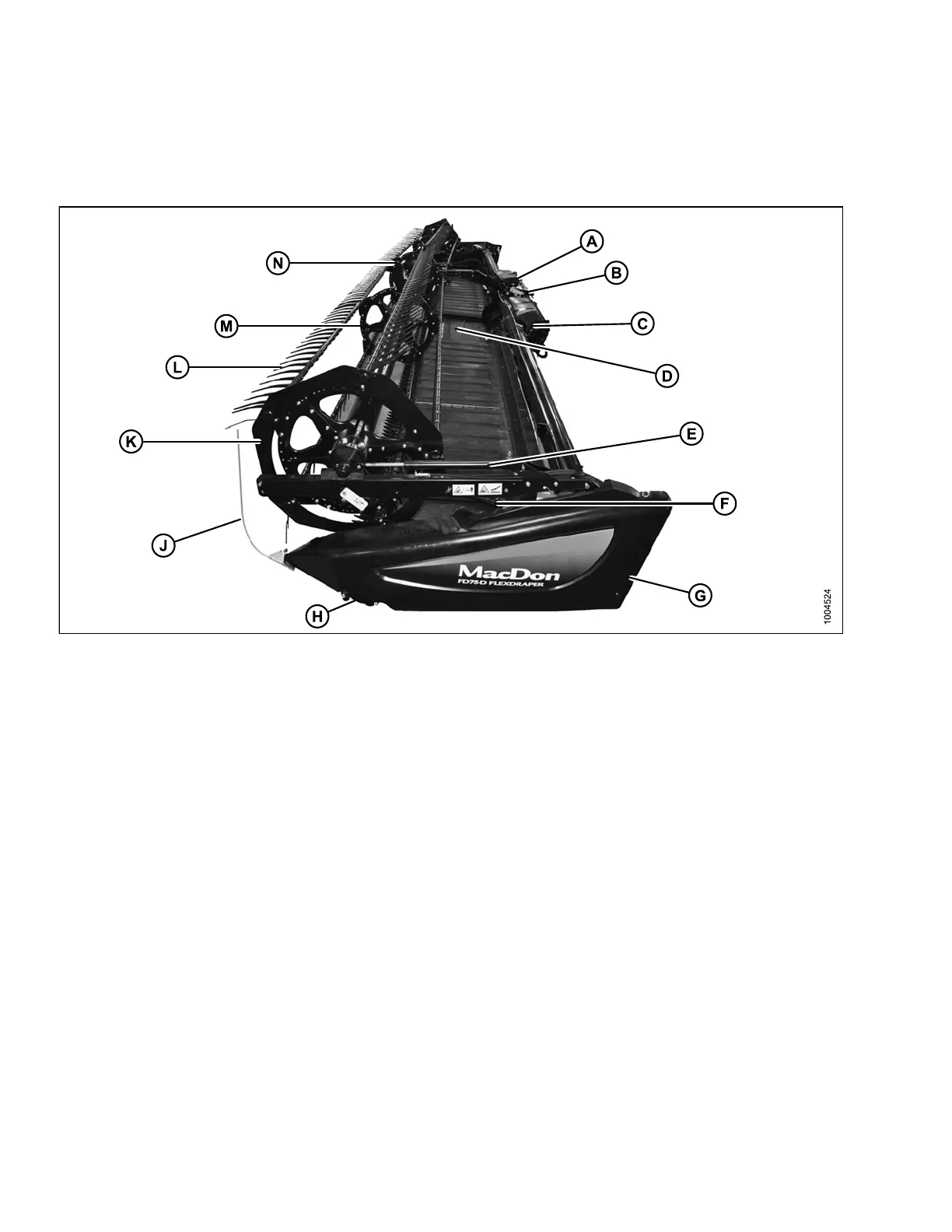

Figure 2.2: FD75 FlexDraper
®
Components
A - Wing Float Linkage
B - Center-Link C - Center Reel Arm Prop Handle
D-TransitionPan
E - Reel
Fore-Aft Cylinder
F - Reel
Lift Cylinder
G - Endshield H - Knife Drive J - Cr op Divider
K - Reel Endshield L - Pick-up Fingers M - Pick-up Reel
N - Reel Cam
