13. The conversion is complete when the wheels are
as show n.

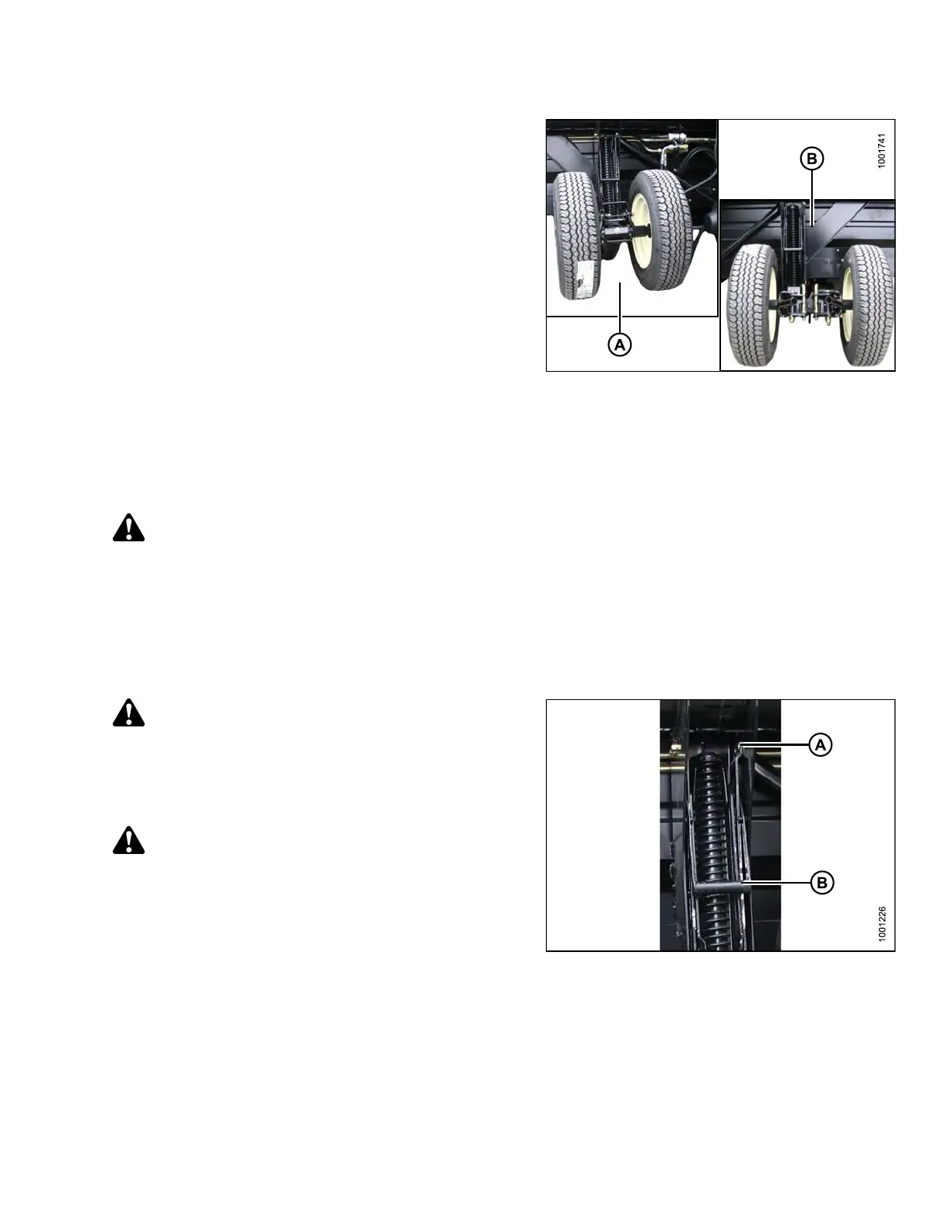

Figure 3.281: Field Position
A - Left Side B - Right Side
3.13.4 Converting from Field to Transport Position
To convert the header from fi eld to transport position, follow these steps:
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
Moving Front (Left) Wheels into Transport Position
To move the left transport wheels into transport position,
follow these steps:
CAUTION
Stand clear of wheels and release linkage carefully as
wheels will drop once the mechanism is released.
1. Pull handle (B) up to release and raise the linkage (A)
fully upward in the vertical support.
DANGER
To avoid bodily injury or
death from unexpected
start-up or fall of raise
d machine, always stop engine,
remove key, and engage s
afety props before going
under header for any rea
son.
2. Raise header fully, stop engine, and remove key from
ignition. Engage header safety props.
Figure 3.282: Wheel
Linkage
147695 187 Revision A
