MAINTENANCE AN D SERVICING

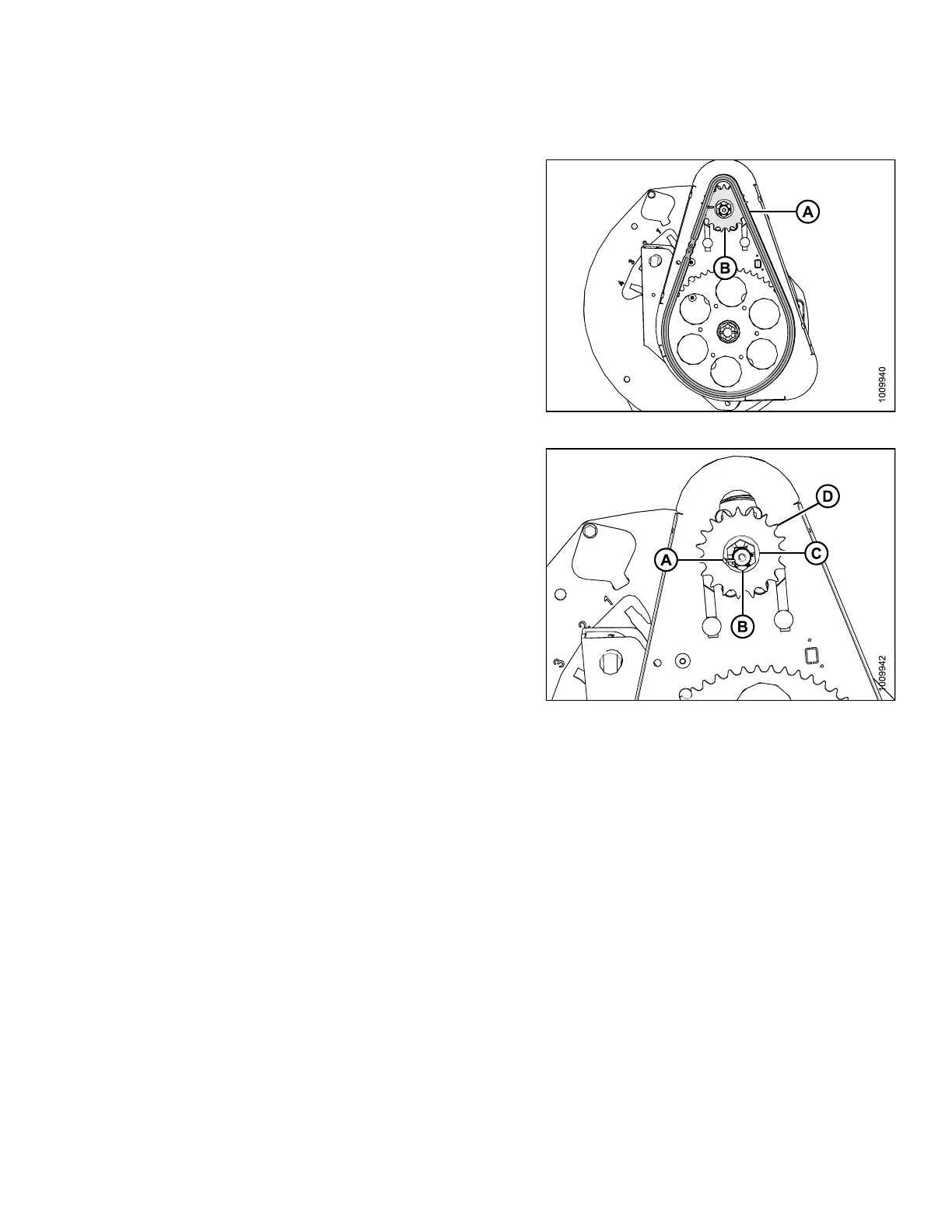

Removing Drive Sprocket
1. Remove the drive chain (A) from the d rive sprocket (B).
Figure 5.2
60: Reel Drive
2. Rem ove the cot ter pin (A), sl otted nut (B ), and flat
washer (C) from the motor shaft.
3. Remove the drive sprocket (D). Ensure key remain s in
the shaft.
IMPORTAN
T:
Do NOT use
pry bar and/or hammer to remove drive
sprocket
(D). Th is will dama ge the motor. Use a puller
if drive
sprocket does not come off by hand.
Figure
5.261: Reel Drive
147695 379 Revision A
