OPERATION
Moving Rear (Right) Wheels into Transport Position
To move the right (rear) transport wheels into transport
position, follow these steps:
1. Remove hairpin (A) fro
mlatch(B).
2. Lift la tch (B), d isen
gage right axle (C), and lower to
the ground.
CAUTION
Stand clear of wheels and release linkage carefully as
wheels will drop once the mechanism is released.
3. Carefully pull handle (D) to release the spring and let
the wheel drop to the ground.
4. Lift wheel and linkage with handle (E) and position
linkage in second slot from bottom.
5. Lower handle (C) to lock.

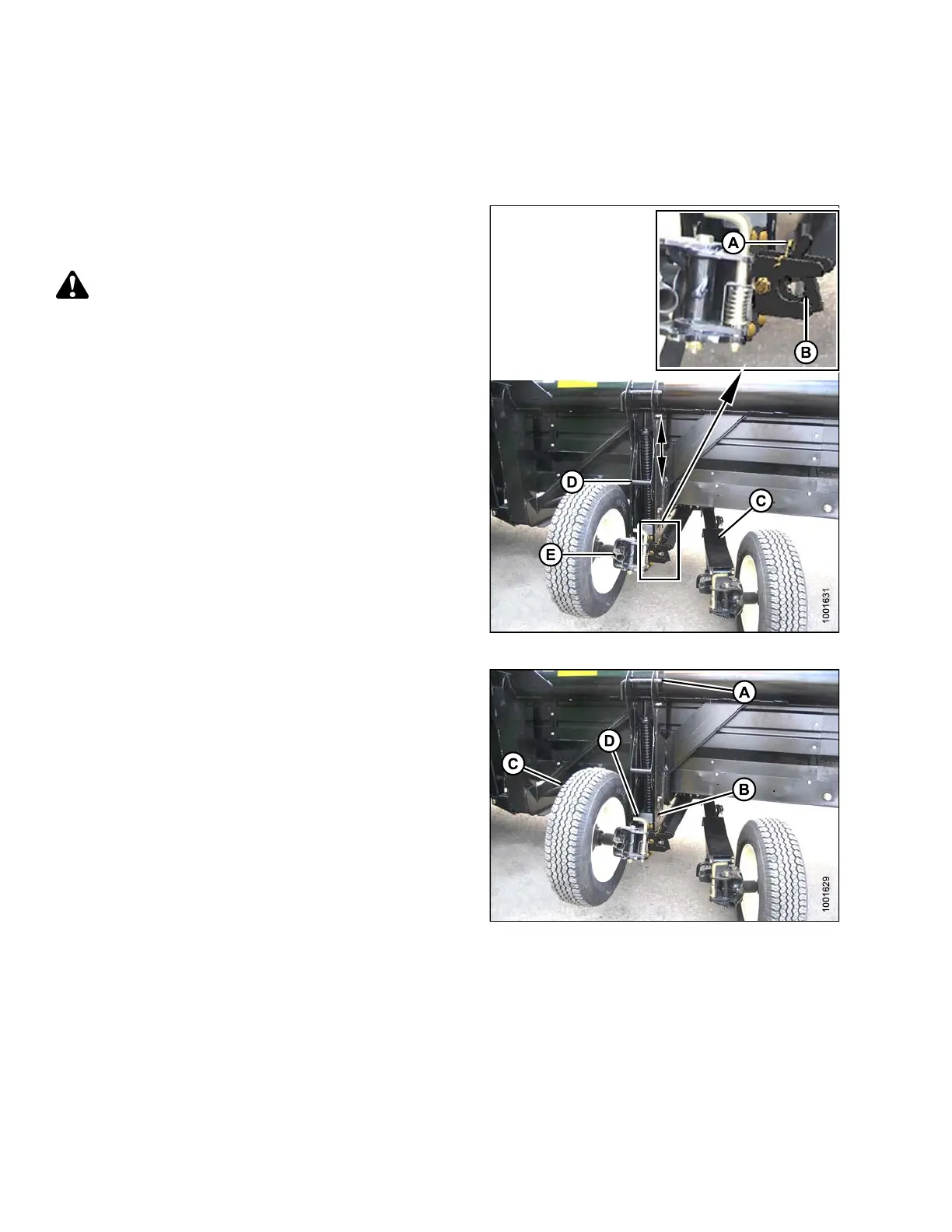

Figure 3.286: Axles
6. Remove pin (A) and install at (B) to secure linkage.
Turn pin (A) to lock.
7. Pull pin (D), swivel wheel (C) counterclockwise 90°,
and re-lock with pin (D).
Figure 3.287: Wheels
