MacDon FFT FlexDraper FD75 - Detaching Header from Case IH Combine

HEADER ATTA CHMEN T/DETACHMENT

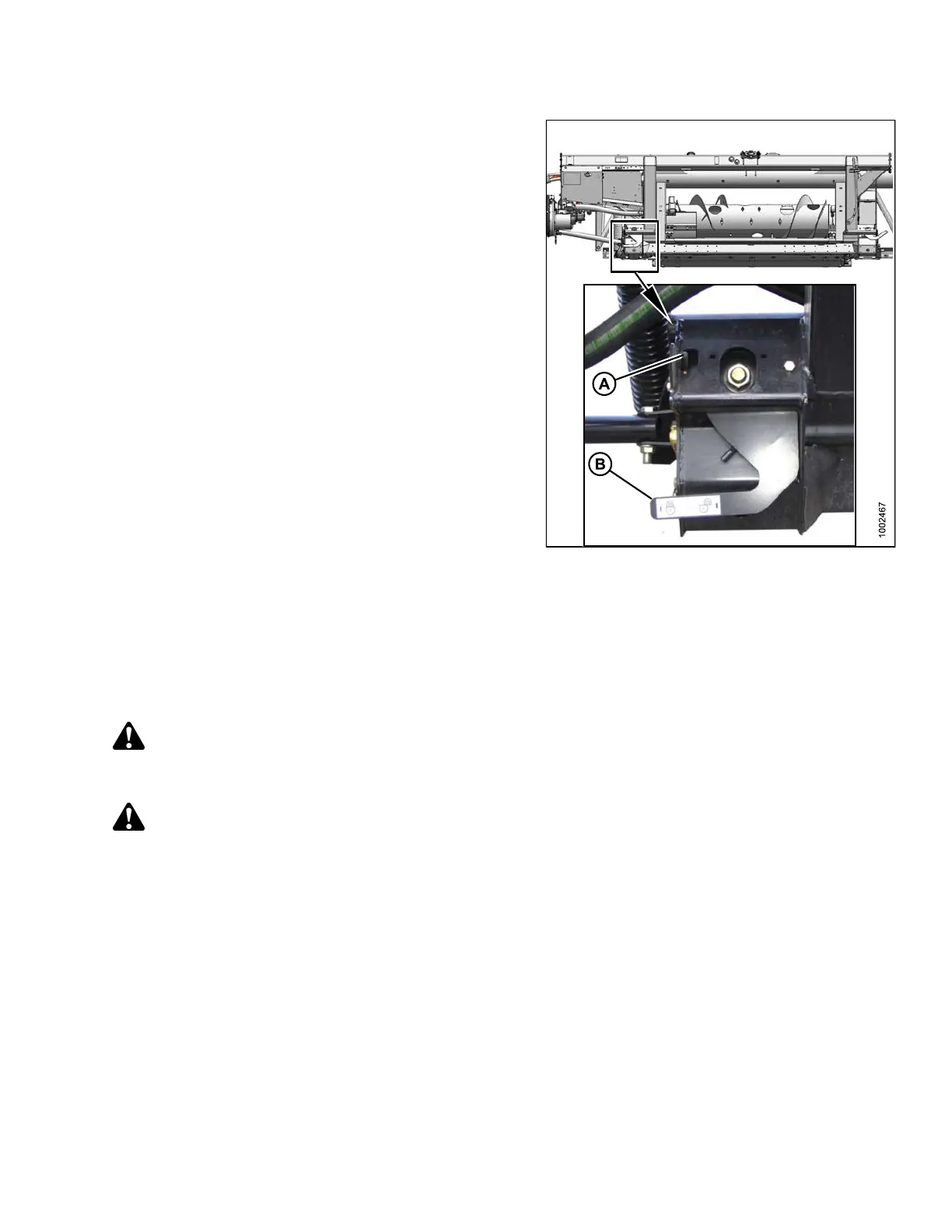

19. Disengage both adapter float locks by moving latch (A)
away from adapter, and moving both header float lock
levers (B) down (UNLOCK).
Figure 4.
12: Float Lock in UNL OCK Position
4.2.2 Detaching H eader from Case IH Combine
To detach the header fro m a Case IH combine, follow these steps:
DANGER
To avoid bod ily
injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, an
d engage safety props before going under header for any reason.
DANGER
To avoid bodily injury or death from unexpected start-up of m achine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Choose a level area and position header slightly above ground. Stop engine and remove key.
147695 203 Revision A
