HEADER ATTAC HMENT/D ETACH ME NT
4.4.2 Detachi
ng Header from Lexion Combine
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
DANGER
To avoid bodily
injury or death from unexpecte d start-up of machine, always stop engine an d remov e key
from ignition b
efore leaving operator’s seat for any reason.
To detach a header from combine, follow these steps:
1. Choose a level area. Position heade r slightly off the grou n d. Sto p eng in e and remove key.
2. Engage the adapter float locks by lifting lever (A) at
both locks until it latche s into the lock position.

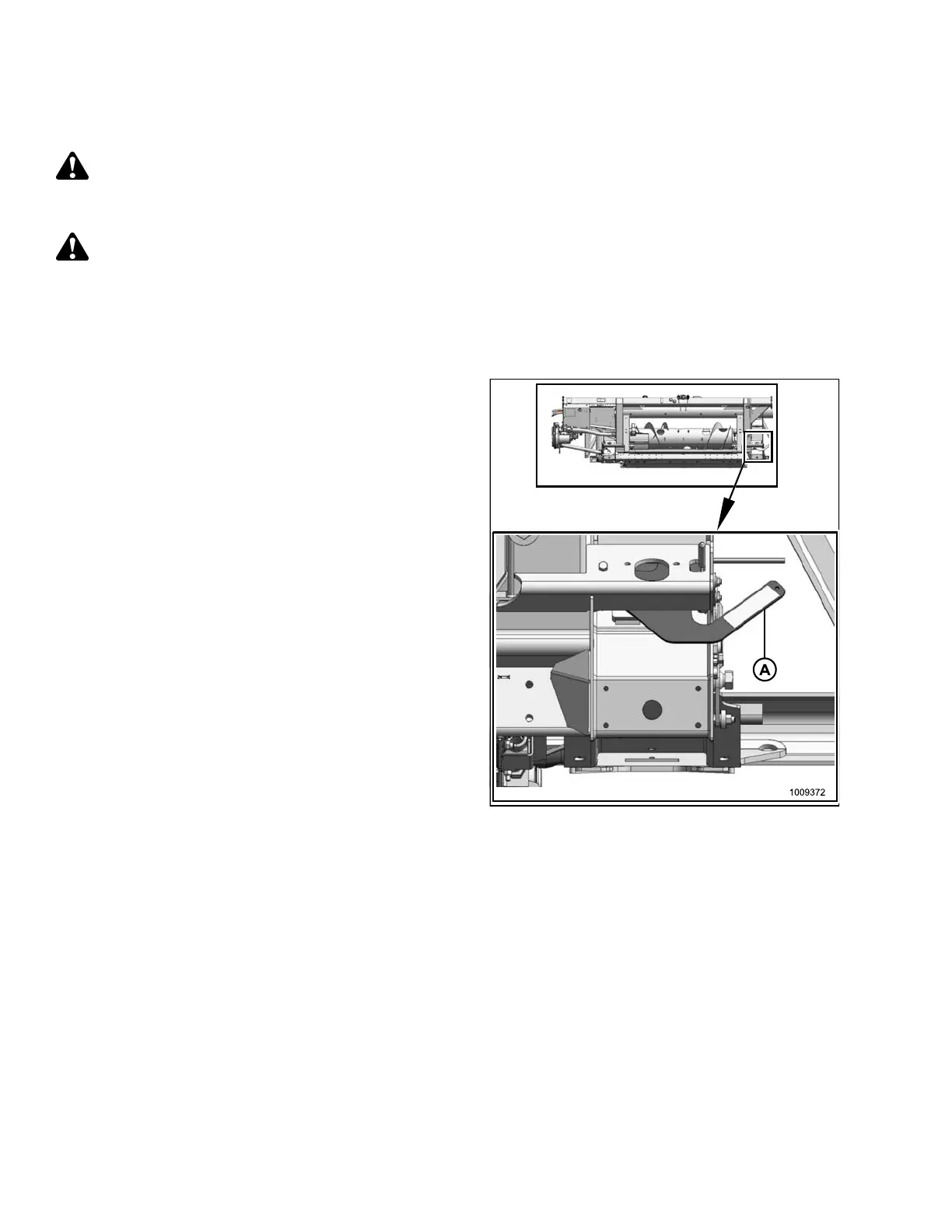

Figure 4.46: Float Locked
IMPORTA
NT:
If slow s
peed transport wheels are installed, header
may be de
tached in either Transport or Field mode.
If detac
hing with wheel in Field m ode, set wheels to
storage
or uppermost working position; otherwise,
header
may tilt forward so that reattachment will be
difficu
lt. Refer to 3.7.1 Cutting Height, page 52.
IMPORTANT:
If stabilizer wheels are installed, set wheels to storage
or uppermost working position. Otherwise header
may tilt forward so that reattachment will be difficult.
Refer to 3.7.1 Cutting Height, page 52.
